G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V
G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V
G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V
G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V
Specifications
Brand Name :
WNK
Model Number :
WNK83mA
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$6.00 - $6.50/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
3000 Piece/Pieces per Month 5V pressure sensor
Delivery Time :
5-8 work days
Packaging Details :
each product in one inner paper box with protection
Warranty :
1 YEAR
Customized support :
OEM, ODM
Model :
WNK83mA
Application :
constant pressure water supply system
Measured media :
typical water, gas, oil, hydraulic oil, etc.
Pressure range :
0-10bar,0-20bar
Power supply :
5V DC
Output :
0.5-4.5VDC
Protection class :
IP65 /67
Housing Material :
Brass
OEM service :
OEM, ODM, customization available
Operating temperature: :
-40~85 ℃
Port :
Shanghai/Ningbo
Description

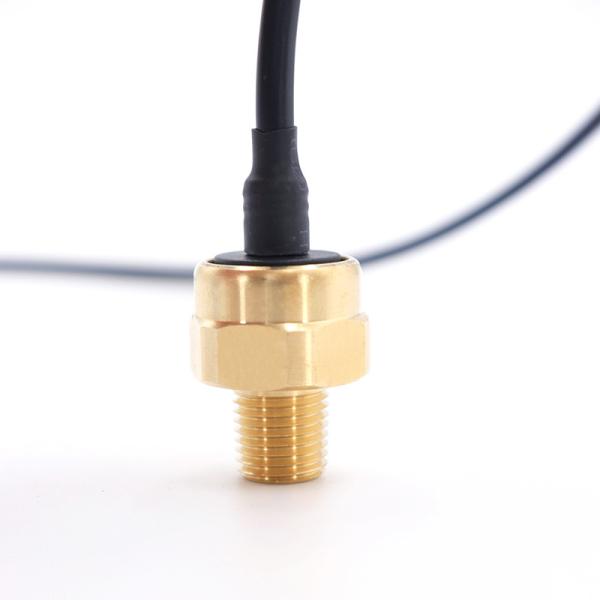

0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor

--WNK83MA is our standard compact pressure transmitter, using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor.

--It has the characteristics of corrosion resistance, wear resistance, impact resistance and vibration resistance. This product is particularly suitable for manufacturing high-performance industrial control pressure transmitters and pressure measurement in harsh environments.
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
Housing Material
Brass
Temperature drift(full range)
±0.15% F.S. (-20~70ºC)
Temperature drift(zero)
±0.15% F.S. (-20~70ºC)
Cell
Ceramic capacitive pressure sensor
Output signal
0.5-4.5 VDC
Measure range
0-10bar 0-20bar
Electrical connection
Packard Cable Outlet
Work temperature
-20~70°C
Storage temperature
-40~110°C
Accuracy
1%FS
Measured media
Liquid Gas steam
Mechanical connection
G1/4 1/4NPT
Pressure type
Gauge Pressure / Sealing Pressure
