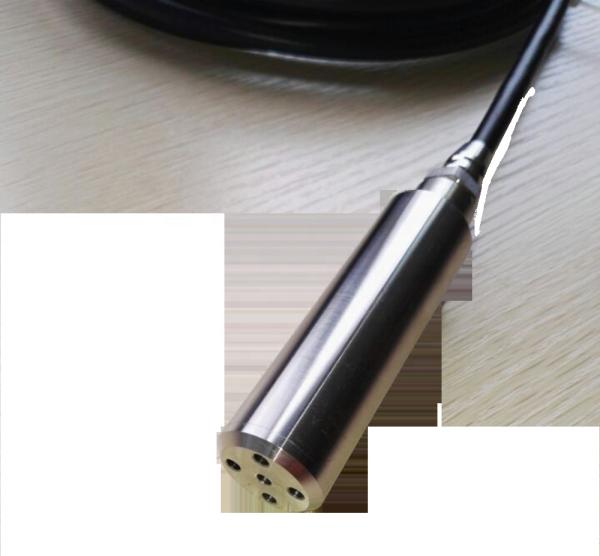

Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Specifications
Brand Name :
WNK
Model Number :
WNK8010-TT
Certification :
CE
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$35.00 - $50.00/Pieces
Payment Terms :
T/T, Western Union, , Paypal
Supply Ability :
3000 Set/Sets per Week water level transmitter
Delivery Time :
5-8 work days
Packaging Details :
Each set into one individual carton, packed with foam protection;
Grade :
DIY, Industrial
Warranty :
1 YEAR
Customized support :
OEM, ODM
Measuring Range :
0...1~200 meters
Accuracy :
0.25%FS, 0.5%FS,
Analog Output :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Application Field :
Wells, Water Tank, Liquid, Sea water
Ingress Protection :
IP68
Power Supply :
12~30V DC
Digital Output :
RS485, IIC, I2C
Cable Material :
PF, PTFE (anti-corrosive)
Housing :
304SS, 316L
Type :
Water Level Transmitter
Port :
Shanghai, Ningbo, Shenzhen, Guangzhou
Description

4-20mA 0.5-4.5V Submersible Liquid Level Transmitter/Hydrostatic Water Level Sensor

wnk 4-20mA 0.5-4.5V Submersible Level Transmitter

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5VSubmersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
