Hot Dip Galvanized Custom Steel Frame Formwork For Long Service Life Project
Hot Dip Galvanized Custom Steel Frame Formwork For Long Service Life Project
Specifications
Certification :
ROHS
Material :
Steel Frame: Q235
Price :
US $90.00 - 110.00/ Square Meter
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Thickness of front panel :
12mm,15mm
Height :
600mm,1200mm,1500mm,2400mm,2700mm,3300mm or customized
Feature :
Reusable, High Strength, adjustable size
Supply Ability :
1000 piece in 10 days
wall bearing capacity :
60KN/sqm
MOQ :
50 piece
Type :
Wall Form
Payment Terms :
T/T
Column bearing capacity :
80KN/sqm
Delivery Time :
10-30 workday
Width :
300-2400mm
Place of Origin :
Hebei,China
Colour :
green, blue, orange, yellow or customized
Brand Name :
WKS
Product name :
Steel Frame Formwork
Description
Hot Dip Galvanized Steel Frame Formwork for Long Service Life Project
Best Custom Steel Frame Formwork - Modular, Reusable & High-Strength for Wall/Column/Slab Construction
Product Overview

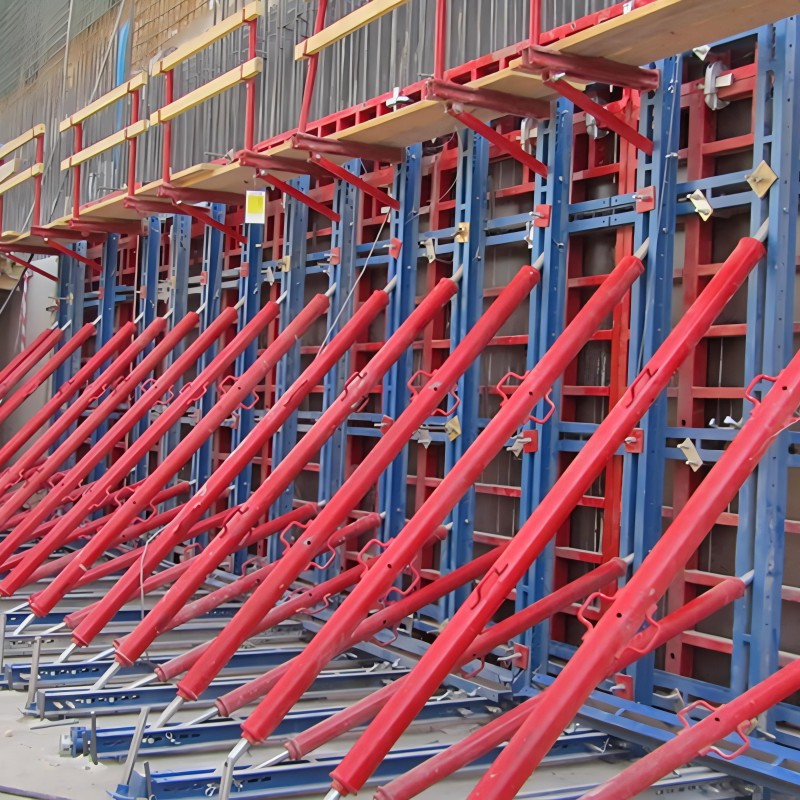

The Steel Frame Formwork is a pre-engineered modular concrete forming system featuring high-strength steel frames combined with 12mm plywood panels. As one of the most widely adopted formwork systems globally, it offers exceptional versatility for walls, columns, slabs, and beams - ideal for residential, commercial, and infrastructure projects.

Key Advantages
Modular Design - Over 80 panel sizes available; flexible assembly for almost any structure shape
High Load Capacity - Wall formwork withstands 60 kN/m²; column formwork up to 80 kN/m²
150-200+ Frame Reuses - Steel frame long lifespan; plywood easily replaceable
Tool-Free Assembly - Only a hammer required; no measuring, sawing, or nailing
Handset or Gang Forming - Suitable for both manual setup and large prefabricated gangs
Versatile Applications - Straight or radius walls; compatible with other industry standard systems
Customization Capabilities

All products support project-based customization:

  • Panel sizes: 600×1200mm to 3000×1200mm (custom available)
  • Frame thickness and steel grade options
  • Surface finish: Painted, powder coated, or galvanized
  • Corner, filler, and special profile components
  • Full accessory sets: ties, wedges, clamps, walers
Technical Specifications
Parameter Specification
Frame Material Q235 / Q355 Steel
Panel Material 12mm Film Faced Plywood
Standard Sizes 600×1200mm to 3000×1200mm
Frame Reuse Cycles 150-200+ times
Wall Load Capacity 60 kN/m²
Column Load Capacity 80 kN/m²
Connection Type Pin & wedge / bolts
Surface Finish Painted / Powder coated / Galvanized
Applications

Building walls and shear walls, concrete columns and piers, floor slabs and beams, bridge abutments and culverts, bulkhead and haunch forming.

Lead Time & Pricing
  • Standard orders: 15-25 days
  • Custom projects: 25-40 days (depending on drawings)
  • Factory direct - competitive pricing
