Lightweight Modular Plastic Formwork for Concrete Wall and Column Construction
Lightweight Modular Plastic Formwork for Concrete Wall and Column Construction
Specifications
Certification :
ROHS
Density :
1.03g/cm³-1.28g/cm³
Price :
US $55.00 - 70.00/ Square Meter
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Maximum billet thickness :
300mm
colour :
cyan
Customize or not :
Available in custom or standard sizes
Supply Ability :
1000 piece in 10 days
Operating temperature :
-20℃to +80℃
MOQ :
50 piece
Maximum size :
1.2*0.6m
Payment Terms :
T/T
Maximum load pressure :
60KN/sqm for wall & 80KN/sqm for column
Brand Name :
WKS
Product name :
Modular Plastic Formwork
Delivery Time :
10-30 workday
Surface hardness :
94
Place of Origin :
Hebei,China
weight :
14kg/sqm
Description

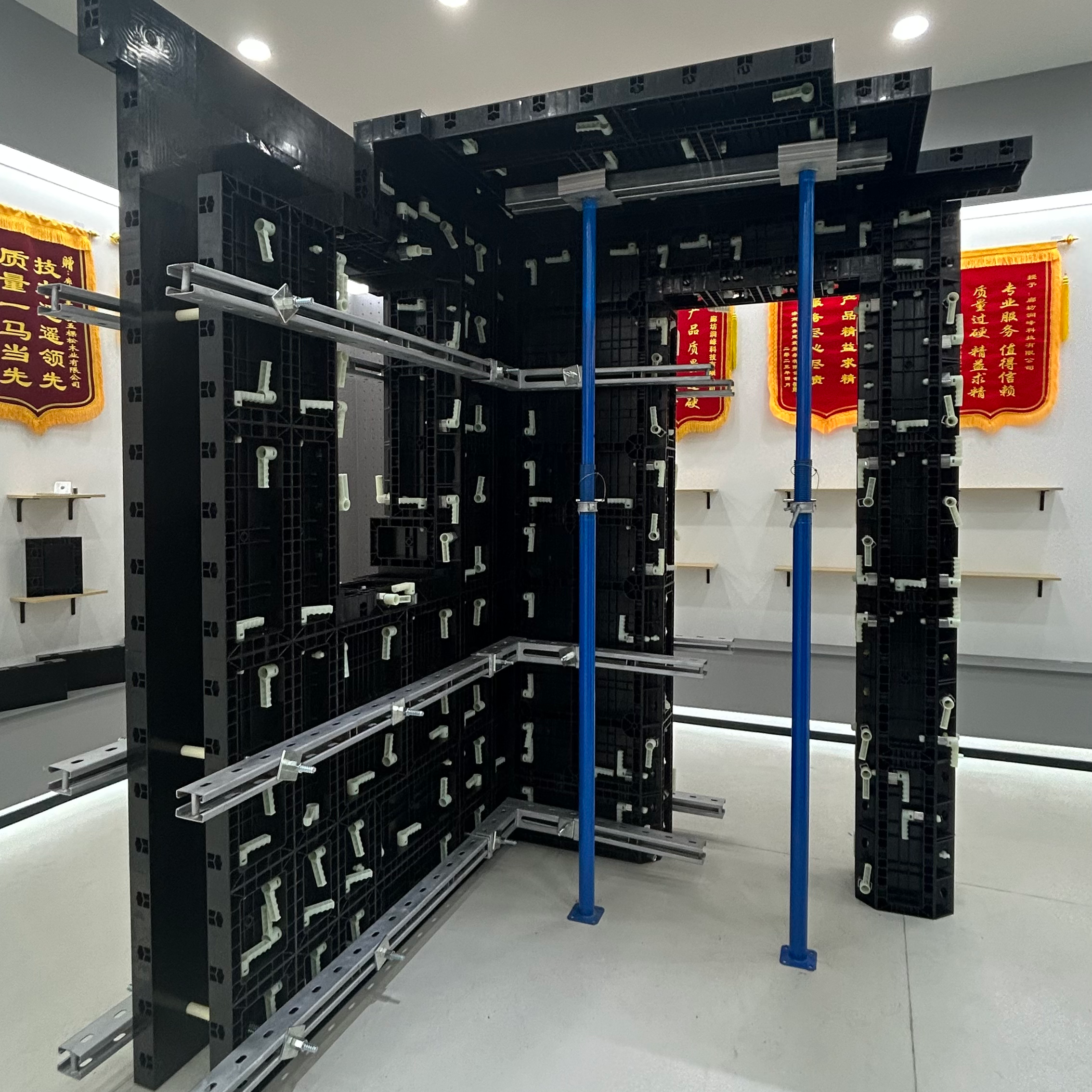

Lightweight Modular Plastic Formwork for Concrete Wall and Column Construction
Product Overview

The Modular Plastic Formwork is an innovative concrete forming system manufactured from high-strength engineering plastics such as ABS or polypropylene (PP), reinforced with glass fibers for enhanced load-bearing capacity. Designed with a modular interlocking system, this formwork enables rapid assembly without specialized tools or release agents, significantly reducing labor time and material costs.

Compared to traditional plywood or steel formwork, plastic systems offer superior durability (80-100+ reuses), corrosion resistance for wet or underground applications, and 100% recyclability - making them an environmentally sustainable choice for modern construction projects.

Key Advantages
  • Lightweight (≈11-14 kg/m²) - Panels can be handled by a single worker without crane assistance, reducing equipment costs and improving site safety
  • High Reusability (80-100+ cycles) - Outperforms plywood (3-5 uses) and rivals steel in lifecycle cost efficiency
  • Corrosion & Waterproof - Ideal for underground structures and humid environments; no rust or rot
  • Interlocking Design - No release agent needed; smooth demolding and easy cleaning
  • Eco-Friendly - Made from recyclable thermoplastics, aligning with green building certifications like LEED
  • CE & ISO Certified - Meets international safety and quality standards
Applications
  • Concrete walls, slabs, and columns
  • Residential and commercial building construction
  • Underground foundations and water-retaining structures
  • Round and square columns (adjustable diameter/form)
  • Infrastructure projects (bridges, dams) with custom design support
Technical Specifications
Parameter Value
Material ABS / Polypropylene (PP) + glass fiber
Panel Size (Standard) 1200×600mm, 600×300mm etc.
Panel Thickness 75mm (with reinforced rib design)
Weight Approx. 9.8 kg (big panel) - 14 kg/m²
Reuse Cycles 80-100+ times
Load Capacity Up to 60 kN/m² (adjustable with stiffeners)
Surface Finish Smooth - no plastering required
Standards CE, ISO, SGS certified
System Components
  • Flat panels (various sizes)
  • Inner/outer corner panels
  • Adjustable column formwork
  • Nylon locking handles & washers
  • Accessories for modular connections
