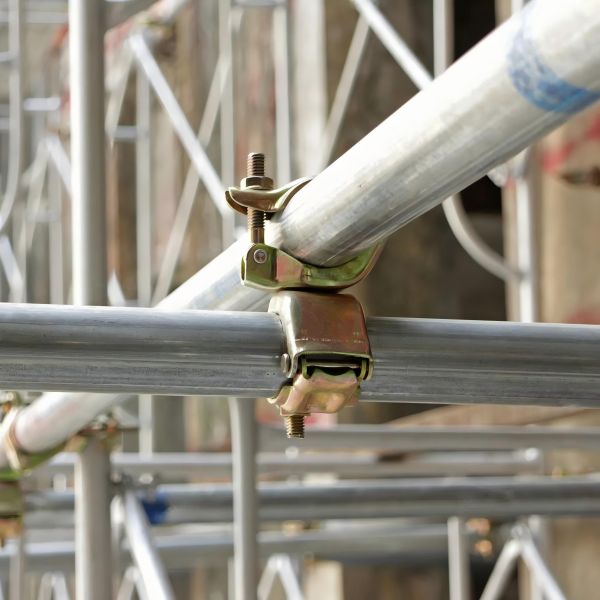

Heavy Duty Tube And Clamp Scaffold for Industrial Construction and Maintenance
Heavy Duty Tube And Clamp Scaffold for Industrial Construction and Maintenance
Specifications
Certification :
ROHS
Material :
Steel
Price :
US $1.00 - 2.00/ Set
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Colour :
Customer's Request
Usage :
Buidling Constrcution
Supply Ability :
1000 piece in 10 days
Packing :
37 or 61 pieces/bundle.
MOQ :
200/ Set
Advantage :
Stable
Surface treatment :
Hot dip galvanized or PVC coated
Payment Terms :
T/T
Size :
3.56 kg/m -4.37 kg/m
Place of Origin :
Hebei,China
Design Style :
Industrial
Brand Name :
WKS
Product name :
Tube And Clamp Scaffold
Delivery Time :
10-30 workday
Keyword :
quick clamp pipe fittings
Description
Heavy Duty Tube And Clamp Scaffold for Industrial Construction and Maintenance
Product Overview

The Cuplock Scaffolding System is a modular steel scaffold using a cup-and-blade connection - hammer down the upper cup to lock ledgers in seconds. Made from Q355B steel with hot-dip galvanized finish (≥55μm), it offers up to 120 kN load per standard and EN 12810 compliance.

Compared to frame or tube-clamp systems, Cuplock provides faster erection, higher strength, and 20+ years corrosion resistance - ideal for general construction and formwork falsework.

Why Choose Cuplock Scaffolding?
  • Fast Connection - Secure joints in under 5 seconds with a hammer
  • 120 kN Load Capacity - Handles heavy concrete formwork and bridges
  • Hot-Dip Galvanized - No rust, no painting, 20+ year service life
  • 90° Fixed Angles - Perfect for rectangular building perimeters
  • EN 12810 Certified - Accepted on international projects
Key Applications
  • Building facade access
  • Slab & beam formwork falsework
  • Bridge pier support
  • Industrial maintenance access
Technical Specifications
Parameter Value
Material Q355B Steel
Pipe Size 48.3mm × 3.2mm
Cup Spacing 1.0m
Finish Hot-dip galvanized (≥55μm)
Max Leg Load Up to 120 kN
Standards EN 12810, EN 12811
System Components
  • Vertical standards (1.0-3.0m)
  • Horizontal ledgers (0.6-2.4m)
  • Diagonal braces / Base jacks / Top jacks
Load Capacity (SWL per standard)
Spacing Height ≤5m
1.2×1.2m 120 kN
1.5×1.5m 80 kN
1.8×1.8m 50 kN
Cuplock vs. Ring Lock
Aspect Cuplock Ring Lock
Connection Cup + blade Rosette + wedge
Angle 90° only 45° increments
Max Load 120 kN 150 kN
Cost Moderate Higher
