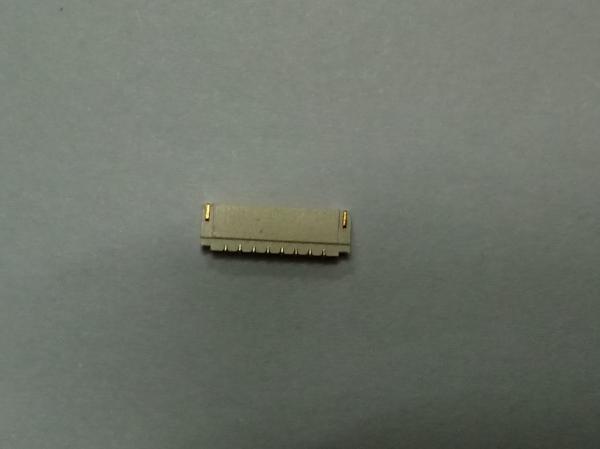

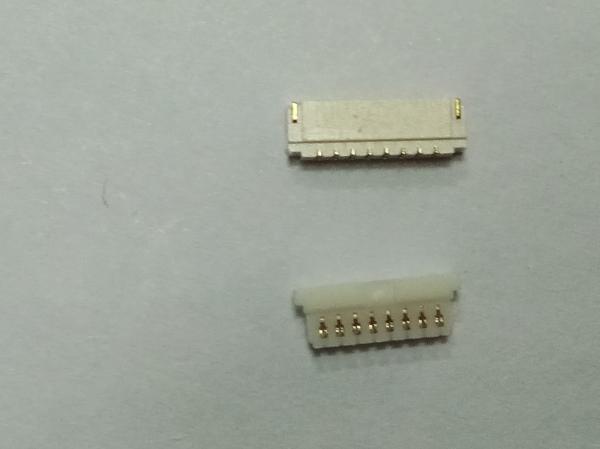

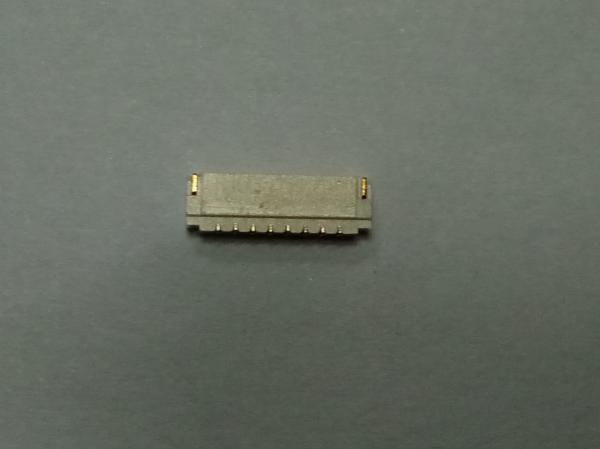

0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
Specifications
Brand Name :
JVT
Model Number :
JVT0800HN0-08E, JVT0801WLP-08GA-S
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
10000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Contact space :
0.8mm
Header type :
top entry type ,side entry type
Applicable wire :
AWG 32 ,OD 0.9mm
type :
IDC style, Compact type, Low-profile type
Plated style :
Gold-plated
Color :
White
Description

0.8mm Pitch Twin U Slot Insulation Displacement Connector with 3 Point Grip Construction

0.8mm pitch/disconnectable Insulation displacement IDC connectors ,equivalent of JST 02SUR-32S

The world's first 0.8mm pitch wire-to-board insulation displacement connector.

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.

  • 3-point grip construction
  • Super fine wires are applicable
  • Shrouded header
  • Twin U-slot insulation displacement section

Datasheet

0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer

0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer

Specification Standardized:

Pitch: 0.8mm

Poles: 2-18

Applicable wire: AWG 32

Voltage rating: 30V AC/DC

Current rating: 0.5A AC/DC

Withstand voltage: 200V AC/minute

Working temperature: -40°C to +85°C

Insulation resistance: 5000MΩ Min

Contact resistance: 20MΩ Max.

Material Specification :

Housing :Nylon 66 UL94V-0

Wafer: Thermal Plastic,UL94V-0

PIN: Phosphor Bronze ,Gold plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:10000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
