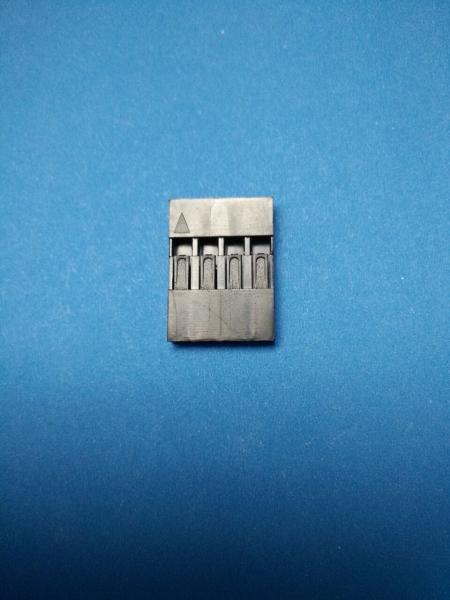

4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch
4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch
4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch
4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch
Specifications
Brand Name :
JVT
Model Number :
JVT1108HPT-04
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
color :
black
pitch :
2.54mm
poles :
2 - 10
applicable wire :
22 - 28#AWG
Description

2.54mm Single-row strip Dupont Wire Jumper Professional and compact, light weight.

Datasheet (PDF) & Other Documents Download center:

1.JVT1108HPT-XXBK(SH) Model (1).pdf

Specification on Material:

Terminal: Phosphor Bronze ,Tin plated or Gold plated

Housing: PBT UL 94V-0

Pitch for 2.54mm Wire to Board Connector Equivalent with Dupont

Specification Standardized:

Scale / Pitch

2.54mm

Poles / Cables

2-10

Applicable wire

AWG#22-28

Rating Voltage

250V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.

4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces


Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
