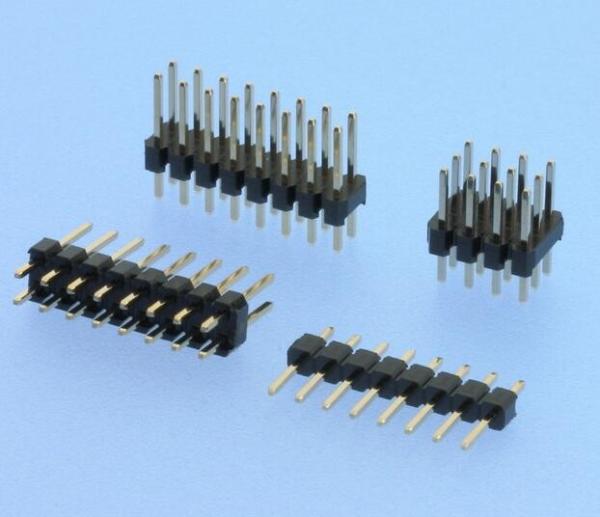

PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated
PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated
Specifications
Brand Name :
JVT
Model Number :
JVT2547H25-XX
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Pitch :
2.54mm
No.of poles :
2-50
Type of Row :
1/2/3
Housing color :
Black
PCB Mounting Orientation :
Staright
Connector System :
Board-to-Board
Description

PCB male Pin Headers, 2.54mm Pitch, Straight, 1/2/3 Rows , gold plated , Height of 2.5mm

Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf

Specification Standardized:

Pitch

2.54mm

Poles

2-50

Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.

PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated

PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
