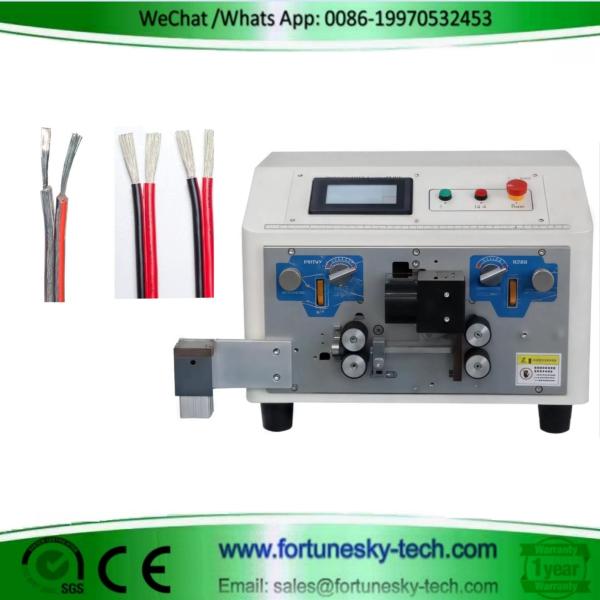

Automatic Double Parallel Wire Cutting Stripping Splitting Machine
Automatic Double Parallel Wire Cutting Stripping Splitting Machine
Specifications
Brand Name :
Fortune Sky
Model Number :
FY-902
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece
Price :
USD1-USD1999
Payment Terms :
T/T, Paypal
Supply Ability :
50 pcs per month
Delivery Time :
2-3 working days after payment received regularly
Packaging Details :
Plywood Case
Wire Core Gauge :
0.1-2.5 mm² (double wire)
Cutting Length :
0.1-99999.9mm
Head Stripping Length :
0.1-30mm
Tail Stripping Length :
0.1-30mm
Description

Features
Full touch screen CNC control: The wire length, single-end stripping, double-end stripping, single-end splitting, double-end splitting, single-end offset, and double-end offset can all be digitally set and operated on the touch screen, making it simple and easy to understand.

Art knife splitting: The artistic knife blade design makes splitting smoother with no burrs.

Cylinder and roller traction: The design uses a cylinder and rollers to pull and split the wire, allowing the splitting length to be adjusted freely and conveniently without limitation.

Independent splitting structure: The splitting structure is designed to be easily disassembled and installed, allowing the machine to be used for ordinary electronic wires, making it a multi-purpose machine.

L-model with offset: For two wires with a length offset, the machine includes a clamp to assist in straightening the wire when the tail splitting offset is long. The offset length can be adjusted freely, and the machine can be switched between offset and non-offset modes.

Technical Parameters:

Technical ParameterSpecificationTechnical ParameterSpecification
Equipment NameAutomatic Double Parallel Wire Cutting Stripping Splitting MachineWire Core Gauge0.1-2.5 mm² (double wire)
Equipment ModelFY-902Cutting Length0.1-99999.9mm
Input PowerAC220V 50/60HZHead Stripping Length0.1-30mm
Machine DimensionsL520mmW465mmH350mmTail Stripping Length0.1-30mm
Machine Weight35kgSplitting LengthFreely adjustable
Machine Power680WBlade MaterialHigh-speed steel
Rated Power400WStripping AccuracySilent hybrid stepper motor 0.01mm
Display Method4.3-inch color screen displayOutput/Hour50-1000mm (1500-3500 wires/hour)
Auxiliary FunctionsAutomatic in/out wire, timed start, jogging adjustmentProgram Storage00-99 (one-key copy, one-key read, custom nameable)
