English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine
English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine
English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine
English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine
English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine
English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine
Specifications
Brand Name :
Fortune Sky
Model Number :
BJ-980
Certification :
CCC,CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD1-USD9999
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 pcs per month
Delivery Time :
1-3 working days
Packaging Details :
wooden box
Dimension :
L530mmx H330mmxW430mm
Weight :
45KG
Power Source :
AC175V－250=50/60HZ
Power :
120W-220W
Wire cutting length :
0.1mm-99999.9mm
Wire stripping length :
Wire head strip: 0.1－200mm Wire tail strip:0.1－120mm
Cutting wire core :
2.5-70 square mm
Cutting tolerance :
within 0.002×Lmm
Catheter Diameter :
6mm-20mm
Description

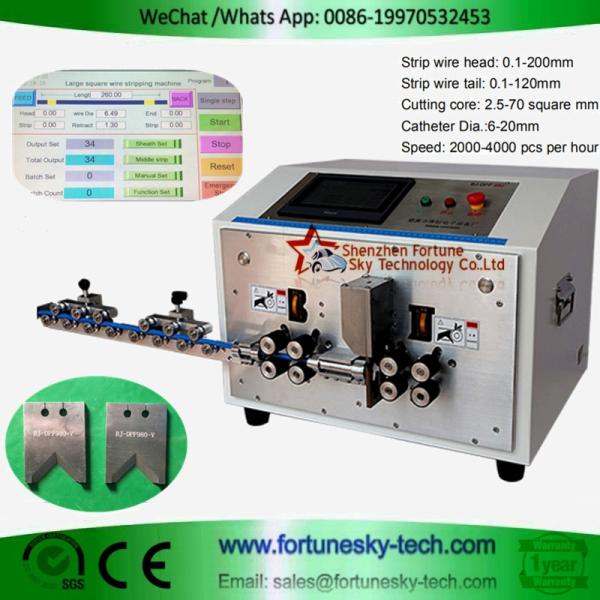

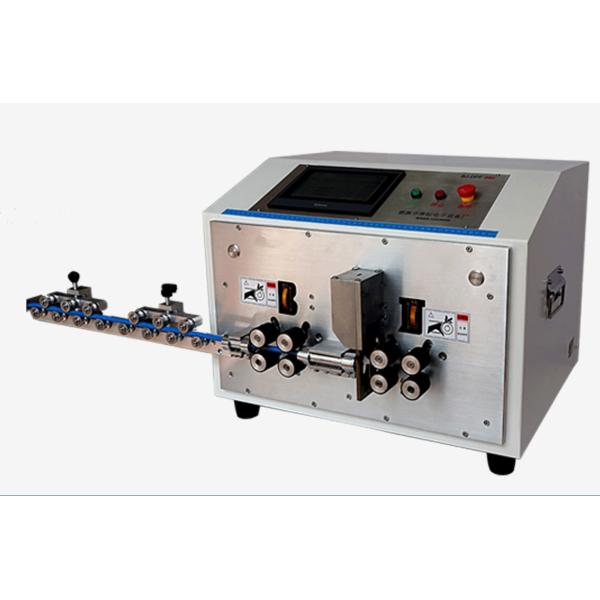

The fully automatic heavy gauge wire stripper cutter machine adopts the latest 64 digits intelligent control system, touch screen operation interface, switch in both Chinese and English,can store one hundred messages, call at any time, high efficiency, convenience and fast. Within the scope of the processing wire cutting/stripping length can be set arbitrarily , , has quantitative and timing function. Designed for heavy gauge wire processing and manufacturing, is suitable for processing electronic wire, new energy cable, automotive power cable distribution box, BV. BVR, PVC.
English Catheter Dia.:6-20mm Wire head strip: 0.1-200mm Wire tail strip:0.1-120mmAutomatic Wire Cutter Stripper Machine

Fully automatic wire stripper cutter machine working vedio: https://vimeo.com/326144529

Product name Fully automatic heavy gauge wire stripper cutter machine
Model No. BJ-980
Dimension L530mmx H330mmxW430mm
Weight 45KG

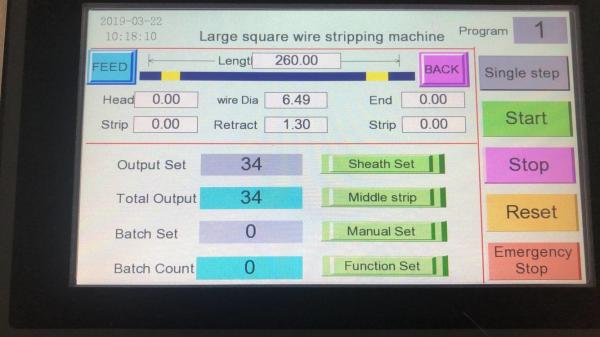

Display 240×128 touch screen display mode
Power Source AC175V－250=50/60HZ
Power 120W-220W
Wire cutting length 0.1mm---99999.9mm
Wire stripping length

Wire head strip: 0.1－200mm,

Wire tail strip:0.1－120mm
Cutting wire core 2.5-70 square mm
Cutting tolerance within 0.002×Lmm
Intermediate cutting 13 sections
Catheter Diameter 6mm-20mm

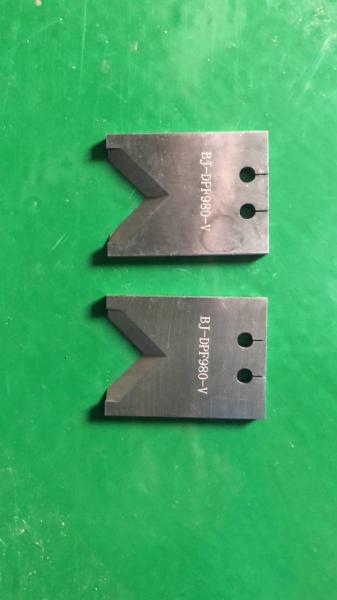

Blade Material Tungsten steel /import high speed steel
Drive Mode 8 wheels drive
Productivity 2000—4000 pcs per hour
Wire pressure regulation Yes
Pulse equivalent no error within 5 meters
Total quantity 999999
Batch quantity 99999
Blade motor precision each step Each step 0.1 mm of silent hybrid stepping motor
Remark

Automatic wire feeding in/outlet, timing start.
