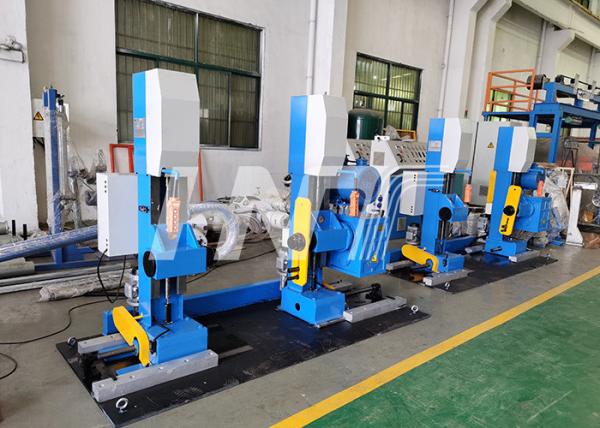

1600 Fixed Type Cable Payoff Machine Wire Decoiler And Wire Payoff
1600 Fixed Type Cable Payoff Machine Wire Decoiler And Wire Payoff
Specifications
Place of Origin :
Wuxi
Brand Name :
HNT
Certification :
ISO9001:2008, CE, High-tech enterprise
MOQ :
1 set
Price :
negotiable
Packaging Details :
according to customer's requirements
Delivery Time :
30-120 days
Payment Terms :
T/T, L/C
Model :
PO1600
Reel lifting range :
0.6M/Min
Payoff Method :
Motorized
Safety :
Mechanical protection and electrical protection devices
Pintle Clamp Method :
By Motor
Payoff Speed :
4-100M/Min
Description

1600 Fixed Type Payoff:

  1. Mainly used for the Payoff of plastic extrusion units, high-frequency welding machines and other cable equipment.
  2. Application Bobbin:PN800-PN1600
  3. Width of Bobbin: 500-1000mm
  4. Bobbin Main shaft lifting range: 350-850mm
  5. Reel lifting range: 0.6M/Min
  6. Payoff speed: 4-100M/Min
  7. Max. Loading: 6T
  8. The loading and unloading method of the Payoff reel is a portal walking structure.
  9. The two pintles of the reel are driven up and down by two motors through a cycloidal pinwheel reducer.
  10. It is equipped with mechanical protection and electrical protection devices.
  11. The pintle can meet the installation of different specifications of wire reels;
  12. the clamping of the wire reels is realized by the motor, and is equipped with mechanical protection and electrical protection device.
