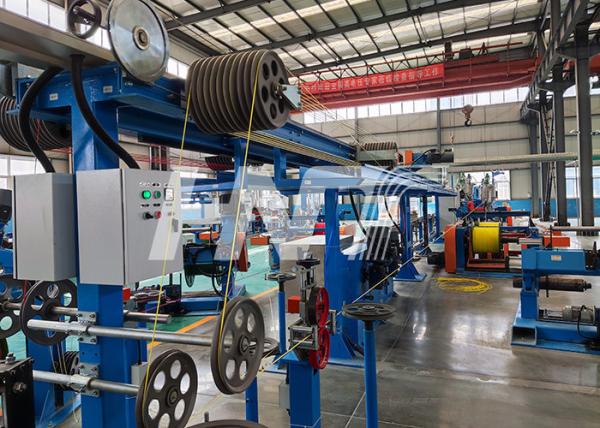

Electric Wire Extrusion Line
Electric Wire Extrusion Line
Specifications
Place of Origin :
Wuxi
Brand Name :
HNT
Certification :
ISO9001:2008, CE, High-tech enterprise
MOQ :
1 set
Price :
negotiable
Packaging Details :
according to customer's requirements
Delivery Time :
30-120 days
Payment Terms :
T/T, L/C
Application Material :
PVC, PE, XLPE, LSHF
Application :
wire and cable insulation
Line Speed :
Max.1000m/min
Water Trough :
Single layer or Double Layer
Takeup method :
can be choosed
Crosshead Function :
Strip and Single Layer extrusion
Description

Electric Wire Extrusion Line:

  1. Application for the wire and cable insulation;
  2. After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil;
  3. After insulation the packing line can connect with cable coil wrapping machine or cable coil film heat shrink packing line;
  4. Packing line can be choose with robot stacking or by manual;
  5. According to the takeup method, the max. line speed can be up to 1000m/min;
  6. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.

  7. Insulation line can be equipment with a co-extruder for color skinning and stripping purposes

  8. Can competed with THHN insulation lines by including a tandem extruder for PA(Nylon) outer Jacketing.

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14 0.8-3
EX-50G 50 26:1 120 60 35 1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400 90 10-30
EX-120G 120 25:1 90 550 15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750

Electric Wire Extrusion Line

Electric Wire Extrusion LineElectric Wire Extrusion Line

Electric Wire Extrusion Line
