Pulsador CNC de 5V, 60mm, 80mm, Manual Pulse Generator hand wheel 4 pines, 6 pines

Description:

1,Color: black/silver
2, Diameter :60/80 mm

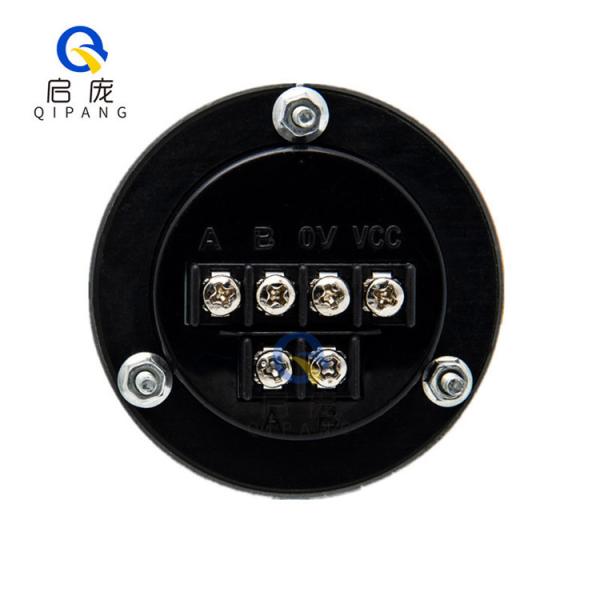

3, 4-wire steering wheel :VCC 0V UN B
4, 6-wire steering wheel :VCC 0V 1 B-A-B
5, Voltage: general numerical control system :5V
Mitsubishi CNC system :12V
Double voltage PLC handwheel voltage :24V
6,Beans :100 pulses /25 pulses

Product features:
One, can be customized company logo.

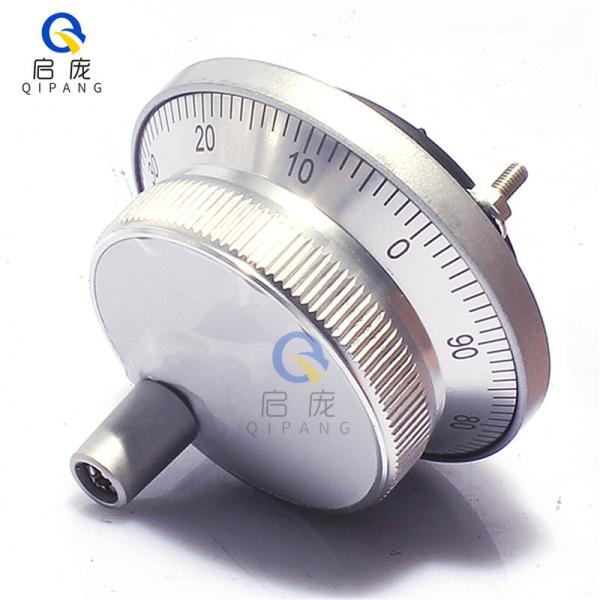

Two, the size of the installation part is 60mm, ultra-thin and lightweight design, metal gear, rotation feel clear.

Three, the size of the handwheel is divided into 2 kinds, the outer diameter is 60MM and 80MM, the electric voltage is 5V, 12V, 24V, the pulse is 100 pulse and 25 pulse, the terminal terminal box of 4 terminals is 6 terminals, so customers can choose the number of terminals suitable for your use according to the size of the external diameter of the handwheel voltage pulse number.
4. Matching system: Fanuc, Siemens, Fage, Heidhain, Baoyuan, XinDai, Guandu, KaiTong, Mitsubishi, Kaneti and other systems.

Instructions and hints for purchasing: The handwheel commonly used in this link has a complete selection, and the diameter of 60mm/80mm in color classification refers to the size of the flange;
Voltage 5V/12V/24V refers to the system voltage;
Pulse 100PPR and 25PPR, PLC control can be 24V, please dear friends order according to the installation size of the equipment, system voltage, pulse number to choose the right hand wheel or directly consult customer service.
In the case of large interference, the handwheel can not be used, and a filter is needed.

Note: When welding the wire, connect the ground wire well to prevent static electricity from burning the encoder pulse generator. Bare copper must be cut off if the wire is not connected and wrapped separately to prevent short circuit.
