SGS Lathe Milling Machine Rear Ripple Hand Wheel
SGS Lathe Milling Machine Rear Ripple Hand Wheel
SGS Lathe Milling Machine Rear Ripple Hand Wheel
SGS Lathe Milling Machine Rear Ripple Hand Wheel
SGS Lathe Milling Machine Rear Ripple Hand Wheel
SGS Lathe Milling Machine Rear Ripple Hand Wheel
Specifications
Brand Name :
QIPANG
Model Number :
φ63/φ80/φ100/φ125/φ160/φ200/φ250
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
5-10 units
Price :
RMB/USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000 pcs / month
Delivery Time :
7-15days
Packaging Details :
cotton or foam boxes
Product name :
Hand Wheel With Revolving Handle
Color :
Black and yellow
Diameter :
63/80/100/125/160/200/250
Material :
Bakelite (phenolic resin)
Specifications :
outer diameter * inner hole * keyway
Feature :
Handle collapsible
Structure treatment :
iron rod chrome plating or blackening treatment
Packing Instructions :
Plastic bag/carton
Description

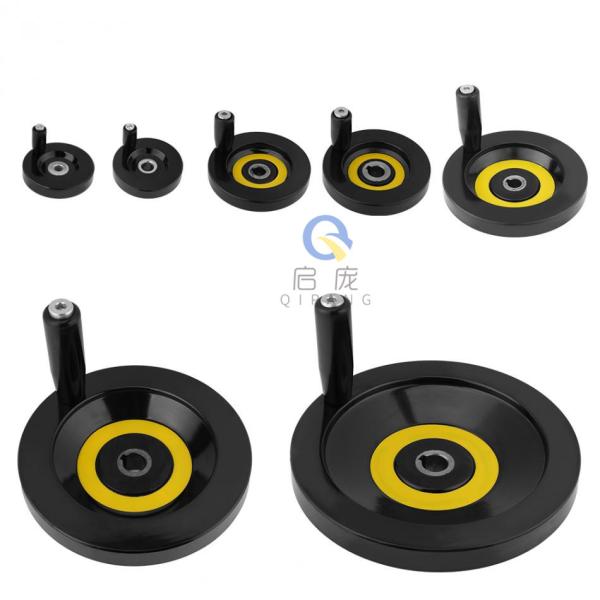

Lathe Milling Machine Rear Ripple Hand Wheel With Revolving Handle 63mm 80mm 125mm 160mm 200mm

Descriptions:

This hand wheel is rear ripple hand wheel designed, with removable revolving handle, hand wheel has screw hole for easy handle assembly. Widely used in industrial machine tools, such as milling machine, lathes, grinders etc.

Features:

  • Lathe milling hand wheel is made of high quality , strong insulation and durable in use.

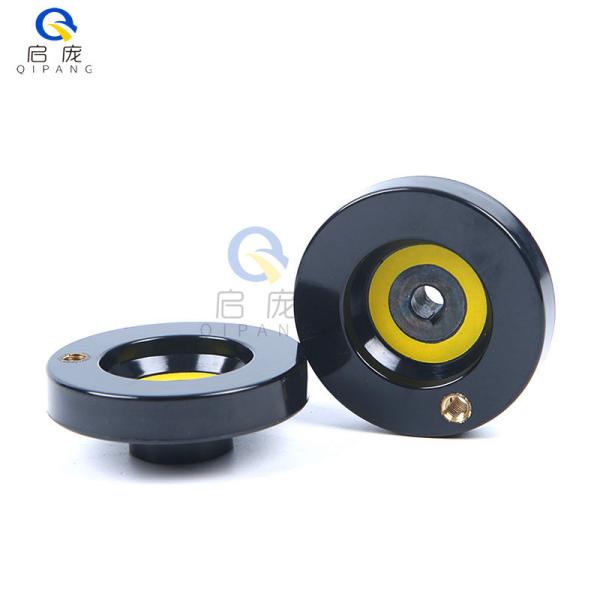

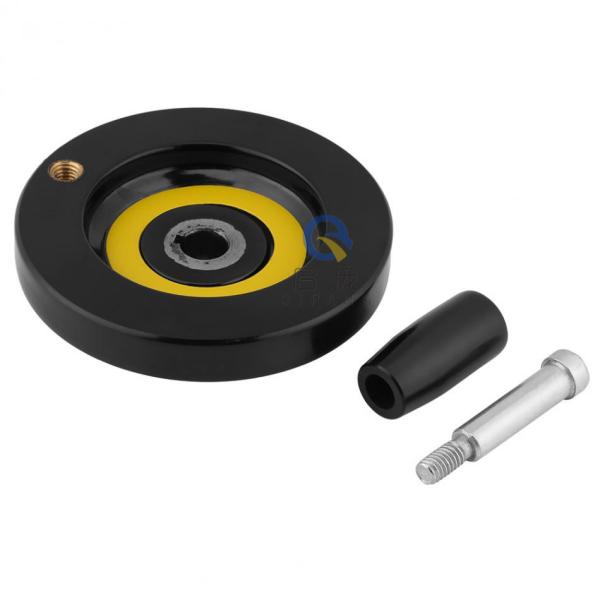

  • Hand wheel come with removable revolving handle, hand wheel has screw hole for easy handle assembly.
  • Widely used in industrial machine tools, such as milling machine, lathes, grinders etc.
  • Novel model, easy to move, with strong carrying capacity.
  • This hand wheel is rear ripple hand wheel designed, convenient to replace the broken one of the lathe.

Specifications:

Type: hand wheel
Material:
Handle height: 50-80 (mm)/1.97 -3.15inch
Hand wheel height: 25-50 (mm)/0.98 - 1.97inch

Type(Optional):8 x 63mm/0.31 x 2.48inch, 10 x63mm/0.39 x 2.48inch, 10x 80mm/0.39 x 3.15inch, 12 x 80mm/0.47 x 3.15inch, 12 x 125mm/0.47 x 4.92inch, 16 x 160mm/0.63 x 6.30, 18 x 200mm/0.71 x 7.87inch
Weight:93g,100g,108g,121g, 332g, 499g,,851g

Package Included:

1 x hand wheel

Brand: Kai Pang Name: Back wave handwheel

Material: bakelite (phenolic resin)
Structure treatment: iron rod chrome plating or black processing color: black
Packing Instructions: Plastic bag/carton Specifications: outer diameter * inner hole * keyway

Bakelite Diameter of bakelite handwheel Handwheel thickness Frame thickness
8/10*63 63
10*80 80 22 12
12*100 100 28 14
12*125 125 32 16
16*160 160 38 18
18*200 200 44 20
22*250 250 52 25

SGS Lathe Milling Machine Rear Ripple Hand Wheel

SGS Lathe Milling Machine Rear Ripple Hand Wheel

SGS Lathe Milling Machine Rear Ripple Hand Wheel

SGS Lathe Milling Machine Rear Ripple Hand Wheel

SGS Lathe Milling Machine Rear Ripple Hand Wheel

Note: When welding the wire, connect the ground wire well to prevent static electricity from burning the encoder pulse generator. Bare copper must be cut off if the wire is not connected and wrapped separately to prevent short circuit.
