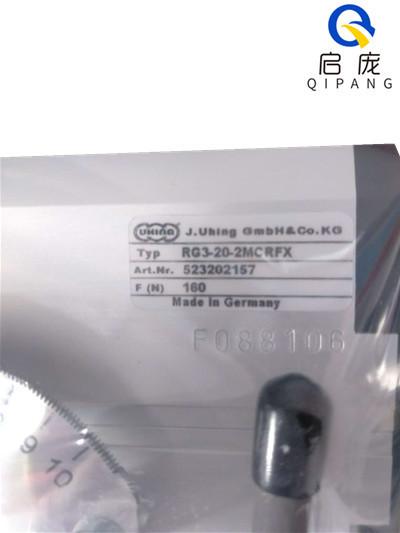

QIPANG GP3-20 linear traverse unit wire guidesGP3-20 traverse units rollring traverse units GP20 traverse gear box

Technical characteristics of the folding device series GP3

The main advantages of Qipang rolling ring unit drives principle are:
1,highest possible efficiency due to the fact that the gear and the payload are completely supported by roller bearings
2,automatic traversing movement
3,variable traversing speeds ranging from 0 m/s to a maximum of 4.2 m/s; can also be separately set for the two directions with constant rotation of the shaft
4,variable traversing width and traversing position
5,high dynamics at the points of reversal
6,can be released from the shaft
7,low operating costs
8,low maintenance requirements

QP traverse unit - Adjust the axial pressure of the bearings

There are two nuts on the folding carriage for adjusting the axial pressure of the bearings: one on the upper part in the center and the other on the lower part on the left. A slight turn of the nut changes the pressure force on the bearings. If the pressure does not match the required value, adjust the two nuts to the appropriate condition. Nuts should be well tightened, do not turn them unnecessarily! The nuts are already adjusted at the factory!

QP traverse unit - Adjustment of the erroneous step of the folding carriage

It is regulated when the left layout step (the carriage moves to the left) does not coincide with the right layout step (the carriage moves to the right). Loosen the bolt (A) and adjust the cam nut (B) to the desired value. Then tighten the bolt.

QP traverse unit - Easy to maintenance

When operating the folding carriage, it is necessary to regularly lubricate the smooth shaft (A) with oil in order to maintain the oiled working surface. The freemotion handle (B) must be in the “0” position when the folding carriage is not in use. Disassembling the folding carriage is not allowed!

QP traverse unit - About us

Shanghai Qi Pang Industrial Co., LTD has been working on the supply of traverse unitequipment since 2008. During this time, the company supplied supplies to many cable, textile and construction companies located in most European countries, Southeast Asian countries, the Americas and northern African countries.
The GP series polished rod traverse unit proves its operation from the front. The high quality materials and assembly quality used in the manufacturing process can compete freely with similar equipment made in Europe.
The traverse unit on the smooth shaft is designed to evenly lay cables and other winding products on coils and coils on spools of any width.
The device maintains a constant step when winding the product from the first layer to the last layer. This winding allows you to increase the packing density and improve the display of the finished product.
The device of this type is simple and reliable in operation, does not require special maintenance and has a simple mechanism for adjusting the stages of lamination.

Our main products are: GP15/20/30/40/50/60 rolling ring linear drive, XD series traverse unit ,guide rollers, wire roller guide, and its accessories.

If you need our traverse unit , please feel free to contact me and always serve you!
