JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics
JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics
JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics
JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics
JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics
JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics
Specifications
Brand Name :
Hoan
Model Number :
JGX-0320A-13.5A
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
4 piences
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4，pience，7
Delivery Time :
7
Working Temperature :
-55~120
Drawing Format :
DWG and PDF
Damping Ratio :
0.5
Relative Product :
Backdraft Damper
Showroom Location :
None
Shock Rsistance :
30g/11ms
Max Static Load :
20-47N(2kg-4.8Kg)
Isolation Efficiency :
90%
Weight :
0.2kg
Port :
Xi'an or Specified
Strand Construction :
7 x 19
Resonant Frequency :
5-10HZ
Function :
Anti Shock
Load Capacity :
500N
Description

JGX-0320 Series

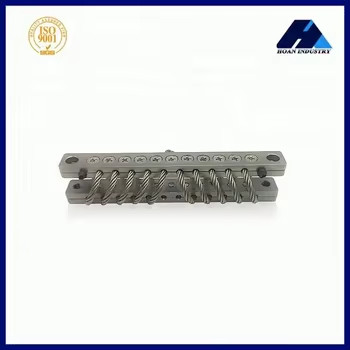

The wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd. exhibit extraordinary charm. It adopts a unique wire rope braiding structure, and this design endows it with excellent elastic and damping characteristics. When faced with a complex vibration environment, it can quickly and effectively absorb and disperse the vibration energy, greatly reducing the impact of vibrations on the equipment. This vibration isolator has good stability and can provide reliable vibration isolation support for both small precision instruments and large mechanical equipment. Moreover, its materials are carefully selected and processed, and it has strong corrosion resistance. Even in harsh industrial environments or humid climatic conditions, it can still maintain stable performance and extend its service life. From the perspective of installation, its design is very user-friendly, easy to install, and can be adapted to various equipment of different specifications. Relying on professional research and development and production processes, Xi'an Hoan Microwave Co., Ltd. has made the wire rope vibration isolator an ideal choice for many industries to solve vibration problems.

Product size parameters

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Model

Height(mm)

±1.5

 Width(mm)

Weight(Approx)

kg

 Mounting Options

Thru Hole

(mm)

Thread

(mm)

 C'sink(℃)
JGX-0320A-13.5A 41 48 0.285

A,B,C

D,E,S

 Ø6.9±0.13 M6x1.0 90

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Static Load Curve

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

No. Model

Max Deflection

(mm)

Max Deflection

(mm)

KV(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 JGX-0320A-22A 22 9.7 154 91
2 JGX-0320A-20A 20 11.7 124 68
3 JGX-0320A-17A 17 13.7 95 51
4 JGX-0320A-16A 16 16.8 78 39
5 JGX-0320A-14.5A 14.5 18.8 67 32
6 JGX-0320A-13.5A 13.5 21.8 57 25
7 JGX-0320A-12A 12 23.9 46 21

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

No. Model

Max Deflection

(mm)

Max Deflection

(mm)

KV(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 JGX-0320A-22A 15.2 13.7 86 46
2 JGX-0320A-20A 14.1 17.3 70 35
3 JGX-0320A-17A 12.0 19.8 53 25
4 JGX-0320A-16A 11.3 23.9 44 20
5 JGX-0320A-14.5A 10.4 26.9 39 16
6 JGX-0320A-13.5A 9.6 31 32 12
7 JGX-0320A-12A 8.6 34 26 11

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

No. Model

Max Deflection

(mm)

Max Deflection

(mm)

KV(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 JGX-0320A-22A 11.3 9.7 56 56
2 JGX-0320A-20A 10.0 11.7 43 43
3 JGX-0320A-17A 9.5 14.7 31 31
4 JGX-0320A-16A 8.7 17.8 25 25
5 JGX-0320A-14.5A 8.2 19.8 19 19
6 JGX-0320A-13.5A 7.2 22.9 16 16
7 JGX-0320A-12A 6.3 25.9 12 12

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
