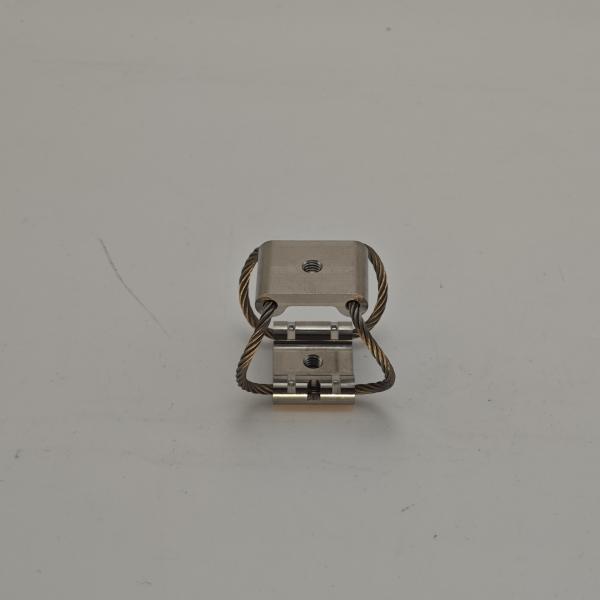

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
Specifications
Brand Name :
Hoan
Model Number :
GR2-6.7A-A
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Mounting Type :
Screw-in
Condition :
New
Core Components :
Gear
Port :
Xi'an or Specified
Compatibility :
Universal
Maximum Load Capacity :
Not specified
Type :
SHOCK ABSORBER
Color :
Black
Adjustable :
Yes
After Warranty Service :
Online support
Machinery Test Report :
Not Available
Model :
GR2-6.7A-A
Description

GR2 Series

Neutralizing Disturbances Invisibly: The Nonlinear Wisdom of Hoan Microwave's GR Series Isolators


In a world full of vibrations, protecting sensitive equipment from interference is an exquisite science. The GR series (butterfly-shaped) wire rope isolators from Xi'an Hoan Microwave Co., Ltd., by leveraging the wisdom of nonlinear dynamics, have become the "silent guardians" under the feet of equipment.


The extraordinary feature of the GR series lies in its inherent nonlinear stiffness and nonlinear damping characteristics. As the amplitude of external excitation (vibration or shock) increases, its stiffness is not constant but shows a gradual "soft-to-hard" trend. This allows it to remain gentle when subjected to minor vibrations, providing good isolation; while when facing high-energy shocks, it quickly "hardens" to effectively limit equipment displacement and prevent collision damage. At the same time, the complex frictional sliding mechanism between the wire rope layers provides strong nonlinear damping related to motion speed. This damping acts significantly when the amplitude is large, rapidly dissipating impact energy; while it has little effect during micro-amplitude vibrations, avoiding adverse interference with high-frequency vibration isolation performance.


Dimension Parameter Table

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

Model

Height(mm)

±1.5

Width

(mm)

Weight

(kg)

 Mounting Options

Thru Hole

(mm)

Thread

(mm)

C'sink

(°)
GR2-12A-A 16 20 0.06 A,B,C,D,E,S ∅3.3 M3*0.5 90
GR2-9.3A-A 19 21 0.06
GR2-6.7A-A 23 24 0.07
GR2-4.9A-A 27 27 0.07


Static-Load Curve

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

No. Model

Max Static Load

(mm)

Max Deflection

(mm)

Kv(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 GR2-12A-A 12 5.8 11 6.1
2 GR2-9.3A-A 9.3 8.4 8.8 4.0
3 GR2-6.7A-A 6.7 11.7 5.3 1.9
4 GR2-4.9A-A 4.9 15.7 3.5 1.2

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

No. Model

Max Static Load

(mm)

Max Deflection

(mm)

Kv(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 GR2-12A-A 5.8 8.1 6.1 2.8
2 GR2-9.3A-A 4.9 10.9 5.3 1.9
3 GR2-6.7A-A 3.3 14.5 3.2 1.0
4 GR2-4.9A-A 2.2 19.1 1.9 0.5

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

No. Model

Max Static Load

(mm)

Max Deflection

(mm)

Kv(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 GR2-12A-A 5.6 7.4 3.0 3.0
2 GR2-9.3A-A 4.0 9.9 1.8 1.8
3 GR2-6.7A-A 2.9 13.0 1.1 1.1
4 GR2-4.9A-A 2.0 17.3 0.5 0.5


Product Applications

Applications Typical Equipment Protection From Operational Advabtages
Shipboard Electronics,Computers, Machinery Explosive blast,Inherent vibration, Storms Long life, Maintenance-free, Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicles Instrumentation, Generators,Electronics Rough terrain,Poor road conditions, Collision Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Shipping Containers Optics, Instruments, Missiles, Electronics Transit, Handling drop, Loading/Unloading Long life, Maintenance-free, Exposure to moisture, Repeated use
Aircraft Electronics,Computers High-G maneuvering, Hard landings, Turbulent air Temperature and altitude extremes, Lightweight
Industrial Equipment Centrifuge, Dryers, Pumps Unbalanced dynamic loads,Fluid hammer, Inherent vibration, Foundation weakness Long life, Maintenance-free, Corrosive environments
Ordnance Equipment Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment Mechanical equipment necessary for patient care Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys Chimneys, Scrubbers, Measuring devices Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. Maintenance-free, Temperature extremes, Corrosive environments


* Material of Mounting Bars *

Stainless Steel or Aluminum can be selected


* Surface Treatment Selection of Aluminum Mounting Bars *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;


* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
