GR1 Series

Dissipating Vibrations Invisibly, Overcoming Rigidity with Flexibility — GR1 Butterfly-Shaped Vibration Isolator Solves Equipment "Sub-Health" Issues

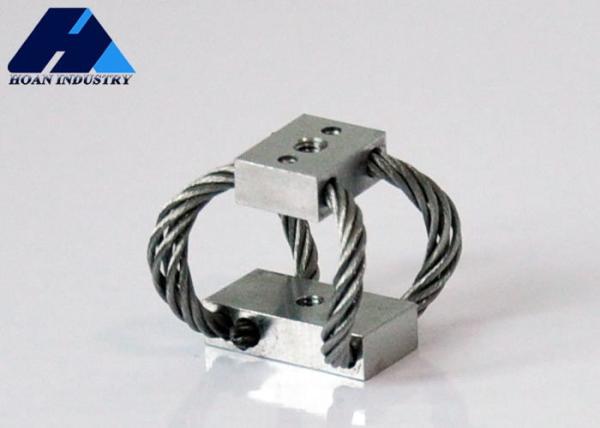

Abnormal vibrations in equipment, which lead to reduced precision, increased noise, and shortened service life, are like imperceptible "sub-health" conditions. Xi'an Hoan Microwave's GR1 steel wire rope vibration isolator (butterfly-shaped vibration isolator) is precisely the "targeted solution" for this persistent problem, optimally designed to isolate mid-to-high frequency vibrations and impacts.

The innovative butterfly-shaped structure of GR1 breaks through the performance limitations of traditional vibration isolators. Its 3D omnidirectional vibration isolation capability ensures effective attenuation of vibrations regardless of their source.

Thanks to its high damping characteristics, it can quickly suppress amplitude even in the resonance zone, preventing equipment damage caused by resonance. Meanwhile, its features of being maintenance-free, having a long service life (with excellent weather resistance and no issues of aging or creep) eliminate users' worries.

Whether it is precision optical platforms in laboratories, sensitive electronic equipment in communication base stations, or critical instruments in industrial automation production lines, GR1 can significantly enhance stability and reliability, enabling equipment to achieve "quieter" excellence.

Dimension Parameter Table

Static-Load Curve

Mounting Options

FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?

A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days

Q: What's the weight and measurement for the product?

A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, OEM service available

Q: What do you need to know for fast quotation?

A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China

* Material of Mounting Bars *

Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Customer Photos
