GR1 Series

Military-Grade Quality Guards Core Equipment: The Art of Balancing Rigidity and Flexibility in Butterfly-Shaped Vibration Isolator GR1

In the field of precision instruments and high-end equipment, tiny vibrations are the "invisible killer" of performance. Leveraging its profound accumulation of military technology, Xi'an Hoan Microwave Co., Ltd. has exquisitely developed the steel wire rope vibration isolator GR1 (butterfly-shaped vibration isolator), which is building a safety barrier for critical equipment with its excellent "way of balancing rigidity and flexibility."

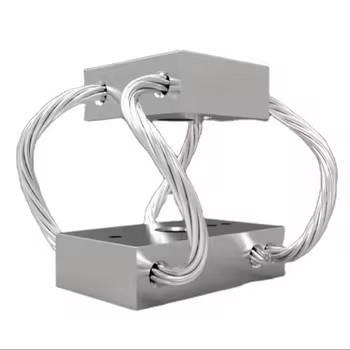

The core of GR1 lies in its unique butterfly-shaped steel wire rope winding structure. Multiple strands of special stainless steel wires are precision twisted and formed into a butterfly-wing-shaped elastomer through special processes, creating nonlinear stiffness characteristics in three-dimensional space. This design endows it with superior damping and energy dissipation capability—it can instantly "lock onto" large-energy disturbances caused by equipment start-stop and impacts, while continuously "dissipating" broadband vibrations in the environment, ensuring the stable operation of the protected equipment.

Its impact resistance is particularly prominent, capable of withstanding high overloads, thus providing military-grade reliable protection for radars, precision machine tools, medical equipment, and more.

Dimension Parameter Table

Static-Load Curve

Mounting Options

FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?

A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days

Q: What's the weight and measurement for the product?

A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, OEM service available

Q: What do you need to know for fast quotation?

A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China

* Material of Mounting Bars *

Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
