GR6 Series

Innovative Structural Design: Multi-directional Damping Advantages of GR6 Vibration Isolators

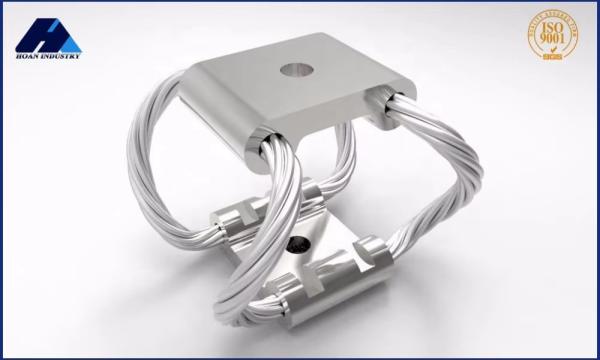

The core innovation of the GR6 series steel wire rope vibration isolators lies in their three-dimensional spiral winding structure. Through the multi-layer staggered arrangement of steel wire ropes, they achieve composite vibration isolation performance in axial, radial and torsional directions. Xi'an Hoan Microwave Co., Ltd. has optimized the winding angle and density of the steel wire ropes through finite element analysis, increasing the vibration isolation efficiency by more than 30%, with a particularly significant suppression effect on high-frequency mechanical vibrations (such as those from motors and pumps).

This design also addresses the pain point of traditional vibration isolators being prone to "rollover". For example, in ship navigation equipment, the GR6 series can maintain the stability of the equipment in complex swinging environments, with an impact resistance of over 15G. In addition, the modular design supports customized stiffness matching, meeting different load requirements from 5kg to 500kg, demonstrating strong engineering adaptability.

Dimension Parameter Table

Static-Load Curve

Product material

* The material of the mounting splint*

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy mounting cleats *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

FAQ

1.Q:Are you a manufacturer or a trading company?
A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

3.Q:What is the lead time?
A:Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

4.Q:Can I get some samples before place order and how long for a sample?
A:Yes, sample order is accepted

5.Q:How is your shipping?
A:1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.

6.Q:Do you offer discounts for bulk orders?
A:Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
