GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
Specifications
Brand Name :
Hoan
Model Number :
GR5-80A-A
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/A,D/P,T/T,,MoneyGram
Working Temperatu :
: -55 ~ +120
Width :
48mm
Certifications :
ISO 9001:2015
Vibration Isolation Range :
0.5 to 10 Hz
Isolator Type :
Helical
Installation Orientation :
Vertical or Horizontal
Vibration Damping :
Yes
Isolation Frequency Range :
5Hz to 100Hz
High :
41mm
Load Capacity :
500 lbs
Shock Rsistance :
20g/11ms
Size :
To Machine
Condition :
New
Mounting Hole Size :
8mm
Description

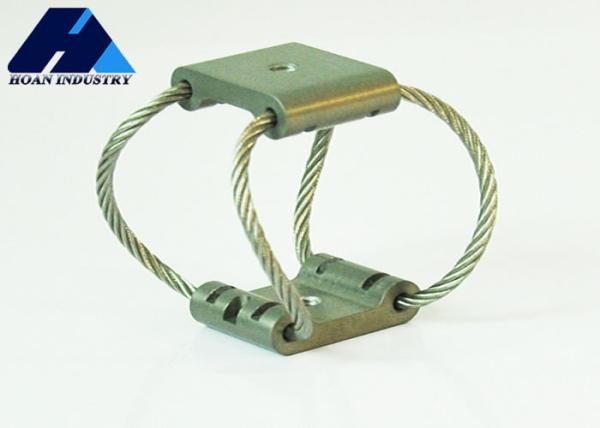

GR5-80A-A Steel Wire Rope Vibration Isolator

High-performance vibration isolation solution providing stable performance in any environment from -55°C to +120°C.

Key Specifications
Attribute Value
Working Temperature -55°C to +120°C
Dimensions (W×H) 48mm × 41mm
Load Capacity 500 lbs
Vibration Isolation Range 0.5 to 10 Hz
Shock Resistance 20g/11ms
Mounting Hole Size 8mm
Certifications ISO 9001:2015
Product Features
  • Helical steel wire rope design for superior vibration damping
  • Maintains performance in extreme temperatures and harsh environments
  • Excellent anti-fatigue properties compared to rubber isolators
  • No aging or hardening over time for long-term reliability
  • Simple installation with vertical or horizontal mounting options
  • Effective vibration isolation for precision equipment
Dimension Parameters
Model Height±1.5 (mm) Width (mm) Weight (kg) Mounting Options Thru Hole(mm) Thread (mm) C'sink(°)
GR5-80A-A 41 48 0.72 A,B,C,D,E,S ∅7 M6*1.0 90
Performance Data
Static-Load Curve
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
Material Options

Mounting splint available in:

  • Stainless Steel
  • Aluminum with surface treatment options:
    • White Anodizing (standard hardness, maintains aluminum color)
    • Hard Anodizing (increased hardness, darker finish for demanding applications)

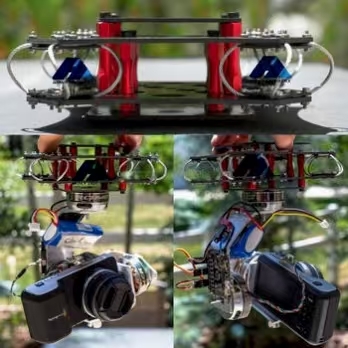

Application Example
GR5-80A-A Steel Wire Rope Vibration Isolator 500 Lbs Load Capacity
