JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines
JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines
JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines
JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines
JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines
JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines
Specifications
Brand Name :
Hoan
Model Number :
JGX-0648A-45A
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
4，pience，7
Delivery Time :
7
Wire Rope Length :
6.4mm
Vibration Isolation Range :
10Hz to 100Hz
Design Style :
Industrial
Temperature Range :
-40 to 200 degrees Fahrenheit
Applicable Industries :
Energy & Mining
Weight :
0.5kg
Resonance Frequency :
30 Hz
Construction :
Braided Wire Rope
Structure :
Helical Spring
Installation Type :
Vertical
Packing :
Standard Packing
Characteristic :
wide working frequency, long life span
Working Temperatu :
: -55 ~ +120
Product Certification :
ISO 9001
Description
JGX-0648A Series

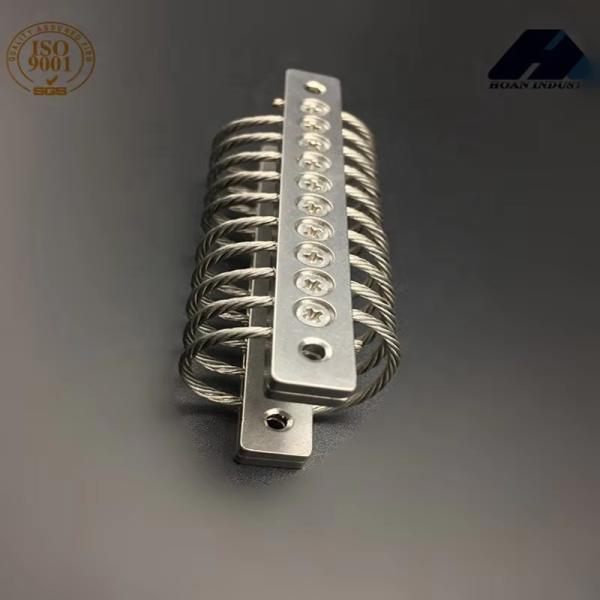

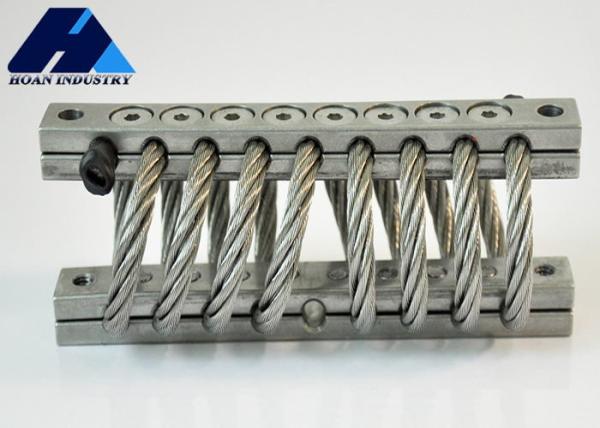

The JGX-0648 series of wire rope vibration isolators is independently developed and manufactured by Xi'an Hoan Microwave Co., Ltd. This series features a spiral wire rope winding structure. Through precise processes, the wire ropes are firmly fixed between the upper and lower metal substrates, forming highly efficient vibration isolation units. With different design parameters, the products offer various specifications of static load - bearing capacities, meeting diverse engineering application requirements.

Verified by practical engineering projects, the JGX-0648 series of vibration isolators has been widely applied on a large scale in the automotive manufacturing, shipbuilding, and military industries in regions such as Liaoning, Beijing, and Shanghai. In the assembly of automotive powertrain systems, these products can effectively reduce the transmission of engine vibrations to the vehicle body structure. In the shipbuilding field, they ensure the stable operation of marine precision electronic equipment under complex sea conditions. In military equipment systems, they provide reliable vibration protection for various military facilities, ensuring their continuous stable operation in extreme environmental conditions. The JGX-0648 series is an ideal vibration isolation solution for safeguarding the reliable operation of key equipment in multiple industries.


Mounting Options



SIZE PARAMETER:

Model “H”±3.30 “W” Unit weight Mounting options Thru hole(mm) Thread(mm) Csink(℃)
JGX-0648D-79A 48 56 0.456 A,B,C,D,E,S ∅6.9±0.13 M6×1.0 90
JGX-0648D-68A 54 64 0.492
JGX-0648D-56A 59 71 0.516
JGX-0648D-45A 64 80 0.564
JGX-0648D-39A 64 89 0.832
JGX-0648D-36A 67 95 0.864
JGX-0648D-33A 67 100 0.684
JGX-0648D-30A 83 108 0.708


Technical Data Sheet:

Vertical load

Curve number Model Maximum static load(N) Maximum deformation(mm)

Vibration stiffness

(KN/m)

 Impact stiffness(KN/m)
1 JGX-0648D-79A 79 17.8 382 182
2 JGX-0648D-68A 68 23.9 266 116
3 JGX-0648D-56A 56 29.0 196 79
4 JGX-0648D-45A 45 32.0 151 60
5 JGX-0648D-39A 39 32.0 127 51
6 JGX-0648D-36A 36 35.6 109 42
7 JGX-0648D-33A 33 35.6 100 39
8 JGX-0648D-30A 30 50.8 74 25


45 ° directional load:


Curve number Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0648D-79A 56.7 25.9 215 89
2 JGX-0648D-68A 47.7 34.0 151 58
3 JGX-0648D-56A 39.8 39.6 109 40
4 JGX-0648D-45A 32.8 45.7 86 30
5 JGX-0648D-39A 27.9 45.7 72 25
6 JGX-0648D-36A 25.3 50.8 61 21
7 JGX-0648D-33A 23.4 50.8 56 19
8 JGX-0648D-30A 21.3 71.6 41 12


Lateral load:


Curve number Model Maximum static load(N) Maximum static load(N) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0648D-79A 43.2 18.8 110 110
2 JGX-0648D-68A 36.3 24.9 72 72
3 JGX-0648D-56A 31.7 30.0 49 49
4 JGX-0648D-45A 25.0 34.0 37 37
5 JGX-0648D-39A 22.7 34.0 32 32
6 JGX-0648D-36A 20.4 38.1 25 25
7 JGX-0648D-33A 18.2 38.1 23 23
8 JGX-0648D-30A 15.9 52.8 16 16

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
