JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios
JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios
JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios
JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios
JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios
JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios
Specifications
Brand Name :
Hoan
Model Number :
JGX-0956A-104A
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
4 piences
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4，pience，7
Delivery Time :
7
Type :
Shock Absorber
Relative Product :
Backdraft Damper
Natural Frequency :
7Hz-15Hz
Features :
Anchoring Holes; Oil Resistant
Installation Orientation :
Vertical or Horizontal
Number Of Wires :
7
Accessories :
NEt
Marketing Type :
New Product 2020
Application :
Vibration Control
Maintenance :
Low
Maximum Deflection :
1 inch
Overall Width :
89mm
Structure :
Helical
Temperature Range :
-40℃ to 80℃
Description

JGX-0956A Series

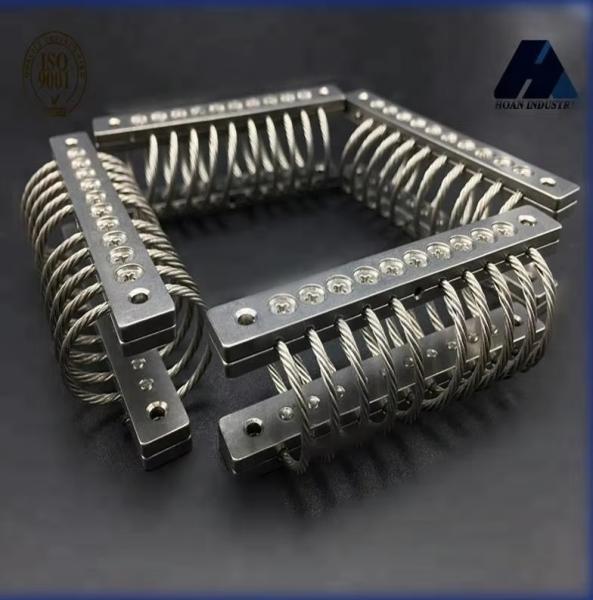

The JGX-0956 wire rope vibration isolator developed by Xi'an Hoan Microwave is designed for micro-vibration control of precision instruments, achieving three-dimensional vibration isolation through frictional damping between steel wires. Tested by the China Institute of Metrology, it demonstrates a vibration transmission loss of 25-30dB in the 10-200Hz frequency band under horizontal/vertical bidirectional excitation (in accordance with GB/T 13441.1 standard), effectively suppressing micron-level vibration interference for precision balances, spectrometers, and other equipment.

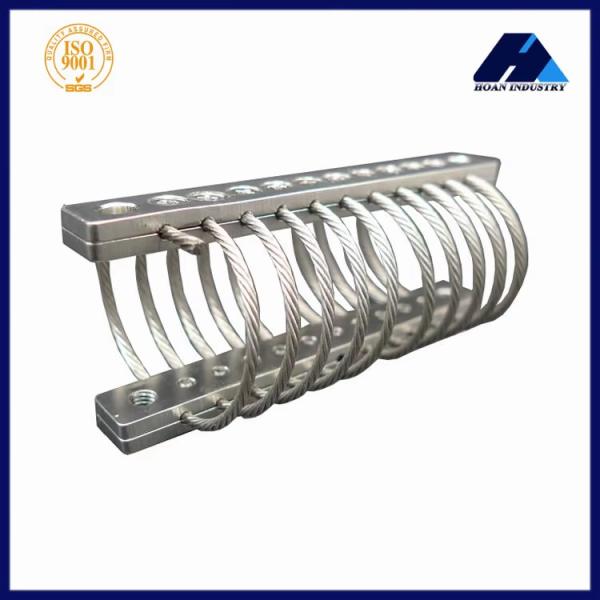

The product features an all-metal open structure, eliminating the aging failure issues of traditional rubber isolators. Made of 304 stainless steel, it passes the 96-hour neutral salt spray test (GB/T 10125) without corrosion. After 200 cycles of testing in the temperature range of -40°C to 150°C, the stiffness decay rate is ≤8%, suitable for outdoor scenarios such as plateau radar stations and marine monitoring platforms. Its modular design supports customized loads (5kg-200kg). By adjusting the wire rope winding layers and pre-tightening force, the three-dimensional damping ratio reaches 0.15-0.18 (tested per ISO 16750-3 standard), meeting the anti-vibration requirements of different equipment.
