Specifications
Brand Name :
Hoan
Model Number :
JMZ-T-2.6
Place of Origin :
China
MOQ :
4
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Availability :
Widely available
Product_Name :
Spring Isolator
Overall Width :
60mm
Installation Method :
Mounted or embedded
Mounting Type :
Top Plate
Structure :
Helical
Maintenance :
Low maintenance
Shock Resistance :
Strong
Type :
Vibration Isolator
After Warranty Service :
Online support
Machinery Test Report :
Not Available
Warranty :
1 year
Design Style :
Industrial
Certifications :
UL Listed, RoHS Compliant
Applications :
Industrial Engine Mounts
Description
JMZ-T-2.6 Friction Damping Vibration Isolators
Superior Performance with Composite Friction Materials and Stable Damping Force
JMZ-T Series Overview
Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.
Key Technical Advantages
  • Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
  • Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
  • Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
  • 3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
  • Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards
Technical Specifications
Model Pz-Direction Load (kg) Displacement Under Maximum Load (mm) d Weight (g) Vibration test Shock test Resonance frequency (Hz) Operating temperature range (℃)
JMZ-T-1.4 1.4 ≤0.6 ST4*0.7/ M7-7H ≤58 ＜4 30g,11ms ＜30 -65～+120
JMZ-T-2.6 2.6 See JMZ-T-1.4 for other specifications
JMZ-T-2.8 2.8 See JMZ-T-1.4 for other specifications
Performance Curves

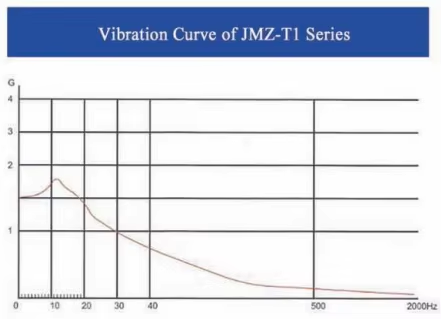

Vibration curve:
JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Impact curve:
JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Application Example
JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
