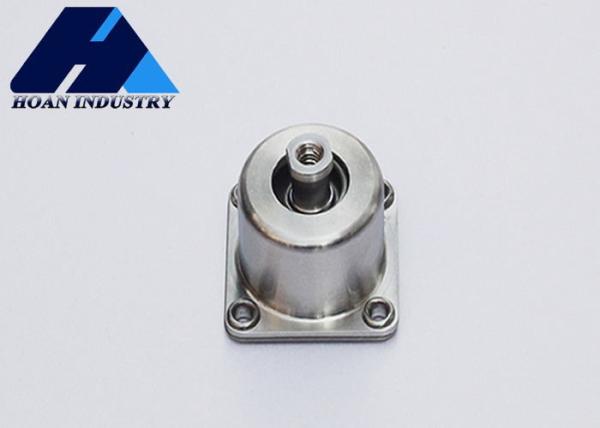

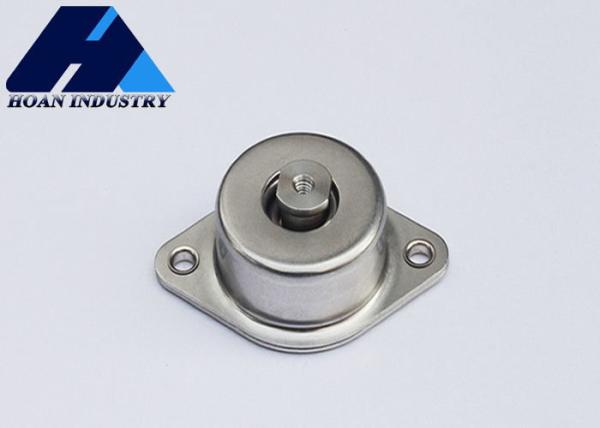

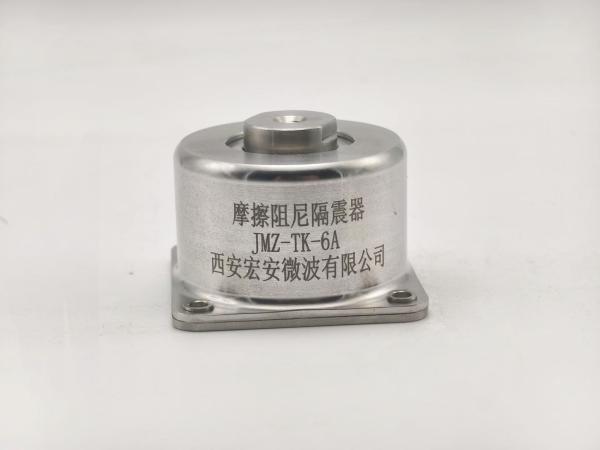

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
Specifications
Brand Name :
Hoan
Model Number :
JMZ-T-1.4
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Shock Absorption :
Excellent
Applications :
Industrial Engine Mounts
Certifications :
UL Listed, RoHS Compliant
Temperature Range :
-40°F to 180°F
Installation Type :
Horizontal/Vertical
Noise Reduction :
Effective
Availability :
Widely available
Resilience :
High
Condition :
New
Customization :
Available upon request
Installation Method :
Bolted
Design Style :
Industrial
Isolation Efficiency :
Up to 95%
Product Keywords :
Friction damping isolators
Description

JMZ-T Series

Master Vibration, Reshape the Stability of Precision Equipment - Hoan Microwave JMZ-T Series Vibration Isolators
In the fields of precision manufacturing, aerospace, and high-end laboratories, tiny vibrations are invisible killers of performance and precision. Xi'an Hoan Microwave Co., Ltd. is well aware of this and brings you a groundbreaking solution - the JMZ-T Series Friction Damping Vibration Isolators.


The JMZ-T Series is no ordinary vibration isolation product. It adopts innovative friction damping technology and efficiently dissipates vibration energy from the external environment or inside the equipment through a non-viscous damping mechanism. Whether it is low-frequency vibrations transmitted from the ground or mid-to-high frequency vibrations generated by equipment operation, the JMZ-T can quickly absorb them, convert them into heat energy for dissipation, and provide a stable working platform like a "silent cornerstone" for your precision equipment.


Choosing the JMZ-T means you provide the highest level of protection for lithography machines, electron microscopes, coordinate measuring machines (CMMs), or precision machining centers. It can not only significantly improve processing quality and measurement accuracy, but also extend the service life of equipment and reduce maintenance costs. Explore the Hoan Microwave JMZ-T Series now to build an impenetrable vibration defense line for your core assets and make stability your core advantage in competitiveness.

Technical Parameter Table

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

Model

Pz-Direction Load

(kg)

Displacement Under Maximum Load

(mm)

 d

Weight

(g)

 Vibration test Shock test

Resonance frequency

(Hz)

Operating temperature range

(℃)
JMZ-T-1.4 1.4 ≤0.6

ST4*0.7/

M7-7H

 ≤58 ＜4 30g,11ms ＜30 -65～+120
JMZ-T-2.6 2.6
JMZ-T-2.8 2.8


Vibration and Impact curve of JMZ-T Series

vibration curve

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

Impact curve

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F


customer photo

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
