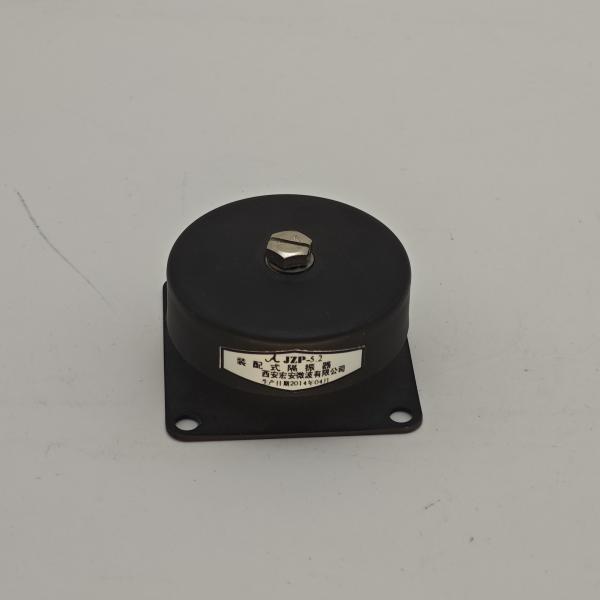

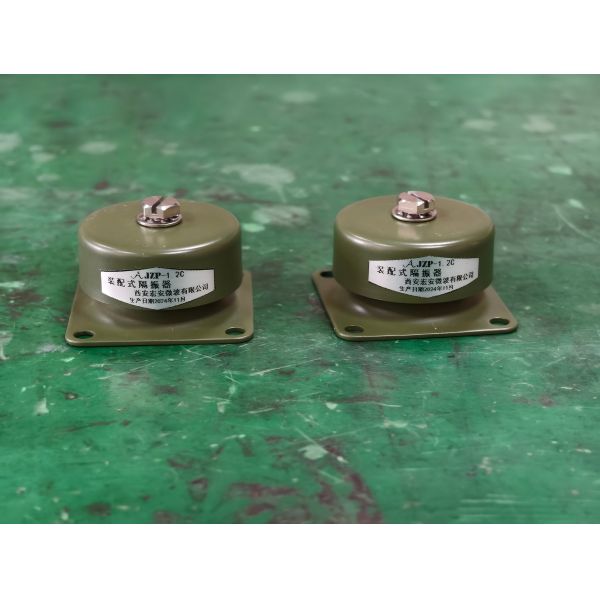

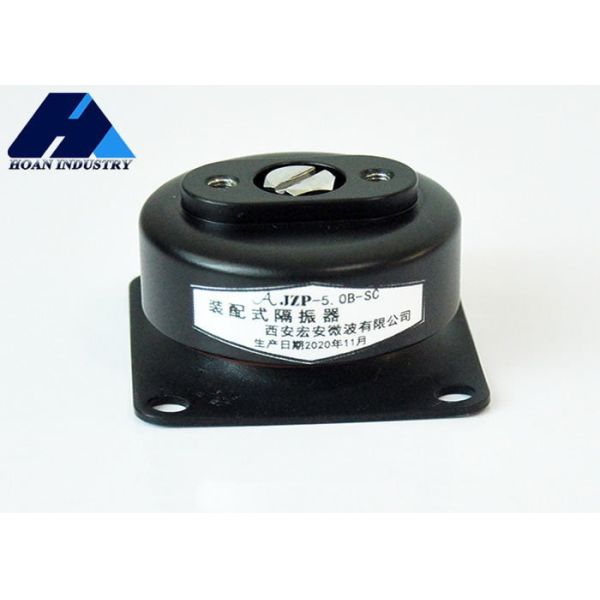

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Specifications
Brand Name :
Hoan
Model Number :
JZP-2.0B-SC
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Characteristic :
wide working frequency, long life span
Working Temperature :
-55 ~ +120
Height :
30mm
Product Certification :
ISO 9001
Diameter :
0.25-2 inches
Port :
Xi'an or Specified
Features :
Anchoring Holes; Oil Resistant
Packing :
Standard Packing
Working Temperatu :
: -55 ~ +120
Color :
Black
Accessories :
Net
Function :
Absorb energy and dissipate it as heat
Description
Rubber Shock Absorber for On-Vehicle Equipment JZP-2.0B-SC for Long-Term Cost Reduction Efficiency Enhancement
JZP-B-SC Series
Engineering Wisdom for Cost Reduction & Efficiency Enhancement: The Whole-Life-Cycle Value of Xi'an Hoan's JZP Series Vibration Isolators
When procuring on-vehicle equipment components, the initial cost is just the beginning. The JZP Series On-Vehicle Modular Vibration Isolators from Xi'an Hoan Microwave Co., Ltd. offer exceptional engineering design and long-lasting reliability, delivering outstanding whole-life-cycle value for users seeking long-term cost reduction and efficiency enhancement.
  • Reducing Maintenance Costs: Equipment without proper vibration isolation experiences exponentially higher failure rates. The JZP Series minimizes equipment failures through source protection, significantly reducing repair costs and downtime.
  • Extending Equipment Service Life: Vibration and impact are primary causes of electronic equipment failure. JZP vibration isolators provide life-extension protection for precision devices, delaying expensive replacement cycles and improving ROI.
  • Enhancing System Availability: For critical applications like emergency communications and operations, the JZP Series ensures continuous equipment operation during movement, where its value far exceeds its purchase price.
Choosing Xi'an Hoan's JZP Series represents a forward-looking, highly cost-effective strategic investment rather than a simple procurement decision.
Dimension Parameter Table
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R B (mm)
JZP-B-SC 46 30 21 40 50 M4 ∅5.5 5 22
Technical Parameter Table
Model Nominal Load (kg) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Valid Period (year)
JZP-1.0B-SC 1.0 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-1.5B-SC 1.5 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-2.0B-SC 2.0 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-2.5B-SC 2.5 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-3.0B-SC 3.0 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-3.5B-SC 3.5 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-4.0B-SC 4.0 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-5.0B-SC 5.0 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-5.5B-SC 5.5 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-6.0B-SC 6.0 ≤0.3 -45～+65 41.5±5 100G12times 8
Vibration and Impact Performance Curves
Vibration Performance
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Impact Performance
JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
