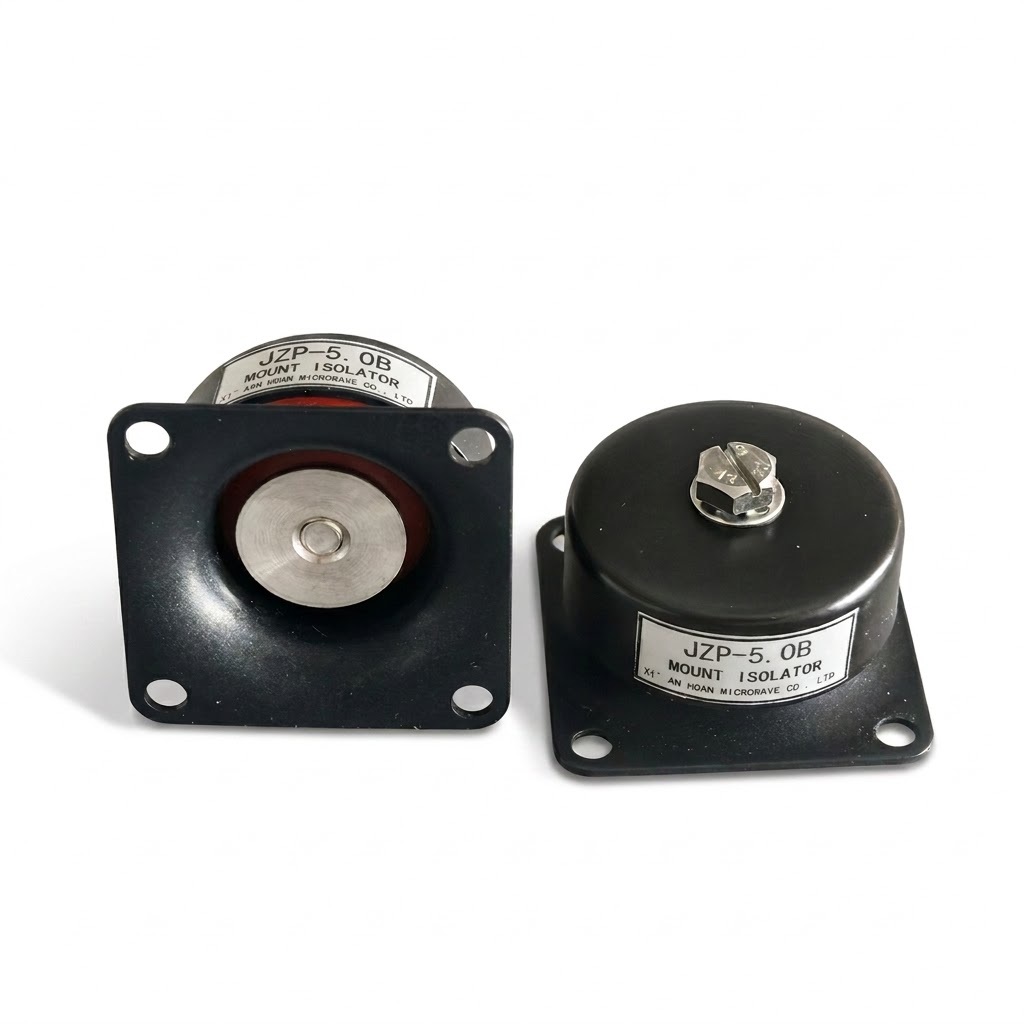

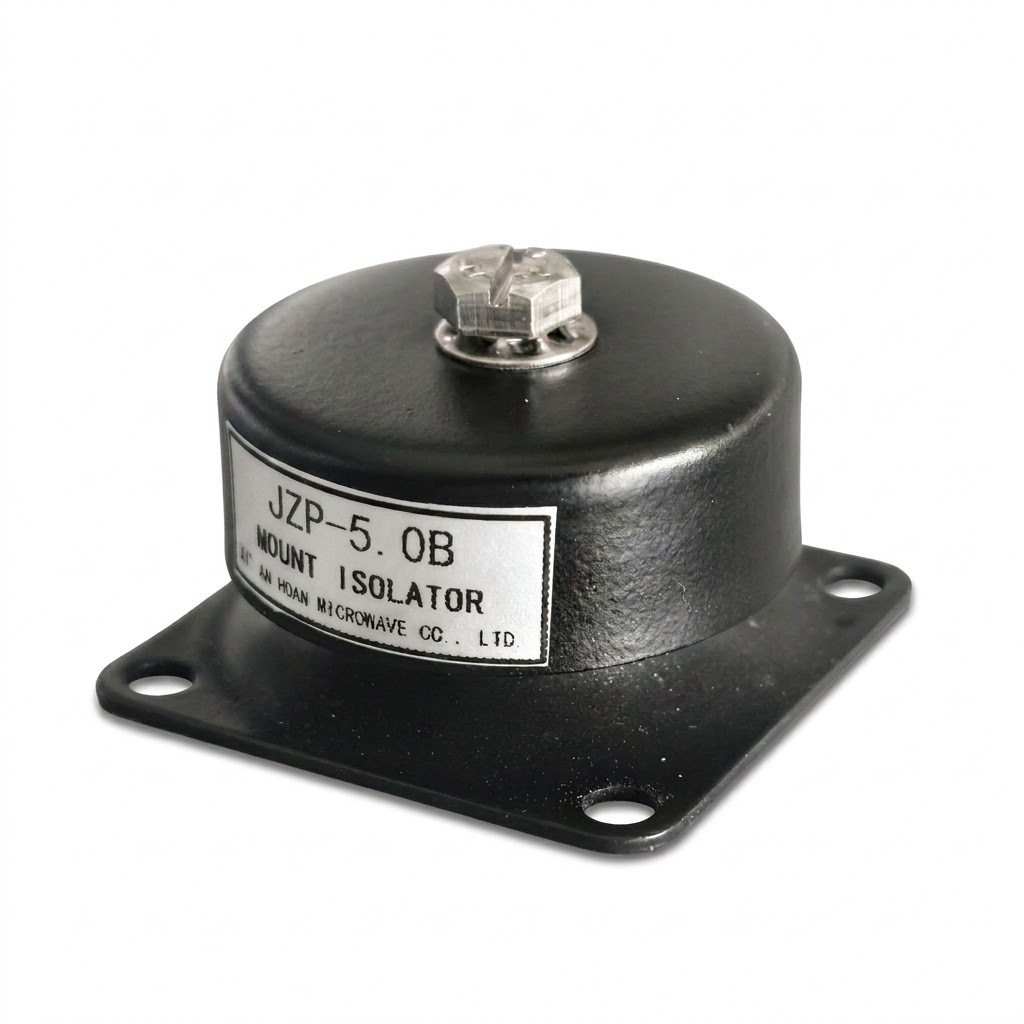

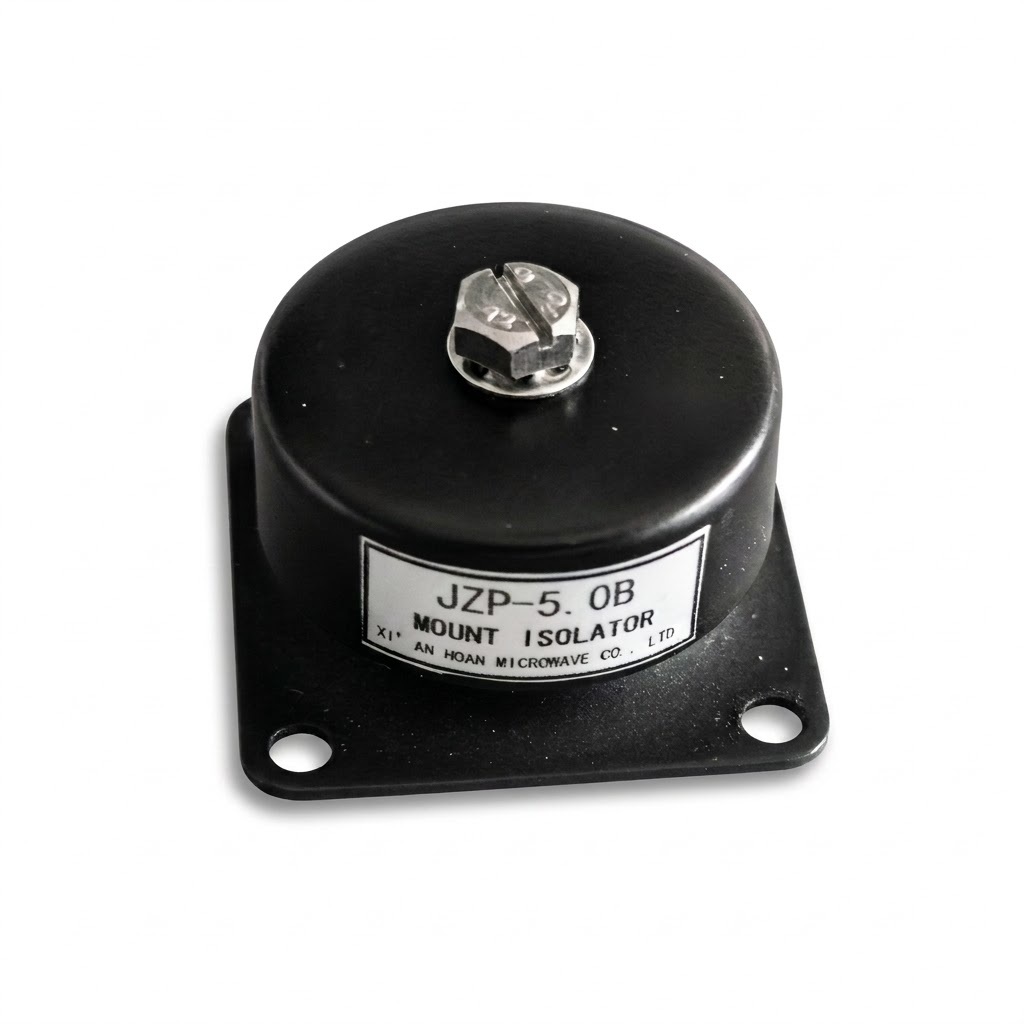

JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
Specifications
Isolation Frequency :
5Hz
Nominal Load :
5.0 kg
Vibration Frequency Range :
10Hz to 100Hz
Working Temperature :
-55 ~ +120 C
MOQ :
10 Pieces
Resonance Frequency :
40 Hz
Payment Terms :
L/C,D/A,D/P,T/T
Shape :
Cylindrical
Compression Ratio :
1.2:1
Place of Origin :
Shaanxi, China
Product Type :
Rubber Shock Absorber
Delivery Time :
5-7 working days for stock, 15-20 days for production
Model Number :
JZP-5.0B
Certification :
ISO9001:2015
Material :
Rubber
Brand Name :
Hoan
Description

JZP-5.0B Rubber Shock Absorber - High Stress Relaxation Resistance with Thermal-Conductive Core


The JZP-5.0B is an assembled vibration isolator from the JZP-B series of Xi'an Hoan Microwave Co., Ltd. A precision alloy steel spring carries the static load while a vulcanized rubber cushion converts vibration energy into heat and dissipates it. The mount controls resonance and structure-borne noise for compressors, pumps, machine tools and building services equipment.


Dimensional parameters (mm)


Model D H h A B d1 MG R
JZP-B (JZP-5.0B outline) 46 30 18 40 50 5.5 M6 5


Technical data (JZP-5.0B)


Nominal load Static displacement Operating temperature Resonant frequency Damping ratio Impact test Expiration date (years)
5.0 kg ≤0.3 mm -45 ~ +65 °C 41.5 ±5 Hz ≥0.13 100 g, 12 cycles 8 / 5


Key characteristics


  • Low stress relaxation keeps clamping force and preload stable over time.
  • Thermal-conductive core lowers operating temperature of the damping element.
  • Internal damping limits resonance peaks across the working frequency band.
  • Low creep and low aging tendency under sustained compression.
  • Compact footprint suits machine bases, pump skids and cabinets.
  • Tolerates oils, seawater, ozone and UV exposure.


Typical applications


Continuous-duty compressors, pumps, generators, HVAC units and precision machinery where sustained preload and heat buildup are concerns.
