The HOAN JWZ-T1-1.4W is a compact vibration isolator developed for lightweight equipment that requires controlled support under vibration and shock conditions.

With a nominal load of 1.4 kg and an operating load range of 1.2 to 1.6 kg, this model is suitable for installations where equipment weight, mounting space and displacement must be carefully controlled.

The isolator provides movement capability in both vertical and horizontal directions, helping reduce the transmission of mechanical vibration to sensitive components. Its compact mounting structure also makes it suitable for equipment with limited installation space.

Product Overview

The JWZ-T1-1.4W is designed to provide reliable vibration isolation for small instruments, electronic assemblies and precision devices.

Its rated displacement reaches 6 mm in the Z direction and 3 mm in the XY direction, allowing the isolator to respond to vibration and movement from multiple directions. The model has a specified resonance frequency of 10 Hz and has been evaluated under a 5 g shock test.

The product can operate within a temperature range of -45°C to +75°C, supporting use in environments that experience considerable temperature variation.

Structure Diagram

Technical Parameters

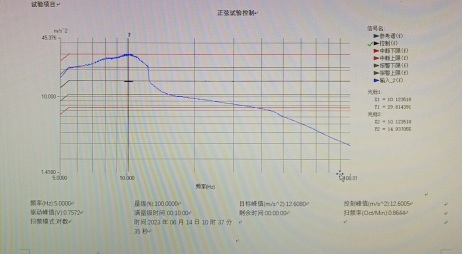

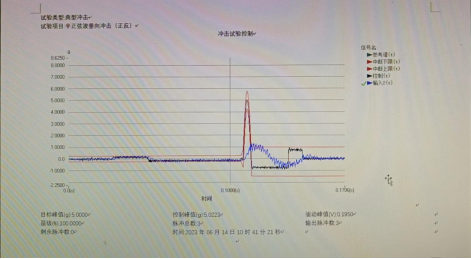

Vibration Curve&Shock Curve

Typical Applications

The JWZ-T1-1.4W may be considered for lightweight equipment such as:

•Precision instruments
•Compact electronic modules
•Small communication devices
•Monitoring and sensing equipment
•Optical or imaging assemblies
•Laboratory equipment
•Control modules
•Measurement devices
•Lightweight airborne electronics
•Small industrial electronic assemblies

Final model selection should be based on the total equipment weight, number of isolators, center of gravity, mounting direction and actual vibration or shock conditions.
