JGX-1598D-428B Wire Rope Vibration Isolator Galvanic Isolation Dielectric Protection Airflow-Permeable Open Design
JGX-1598D-428B Wire Rope Vibration Isolator Galvanic Isolation Dielectric Protection Airflow-Permeable Open Design
JGX-1598D-428B Wire Rope Vibration Isolator Galvanic Isolation Dielectric Protection Airflow-Permeable Open Design
JGX-1598D-428B Wire Rope Vibration Isolator Galvanic Isolation Dielectric Protection Airflow-Permeable Open Design
Specifications
Certification :
ISO9001:2015
Color :
Blackish Green and Silver Paint
Max Deflection :
49.5 mm
Brand Name :
Hoan
Shock Stiffness (Ks) :
356 kN/m
Vibration Stiffness (Kv) :
821 kN/m
Place of Origin :
Shaanxi, China
Payment Terms :
L/C,D/A,D/P,T/T
Warranty :
1 Year
Delivery Time :
7 Days
Max Static Load :
428 kg
Function :
Anti Shock
Model Number :
JGX-1598D-428B
MOQ :
4 Pieces
Description

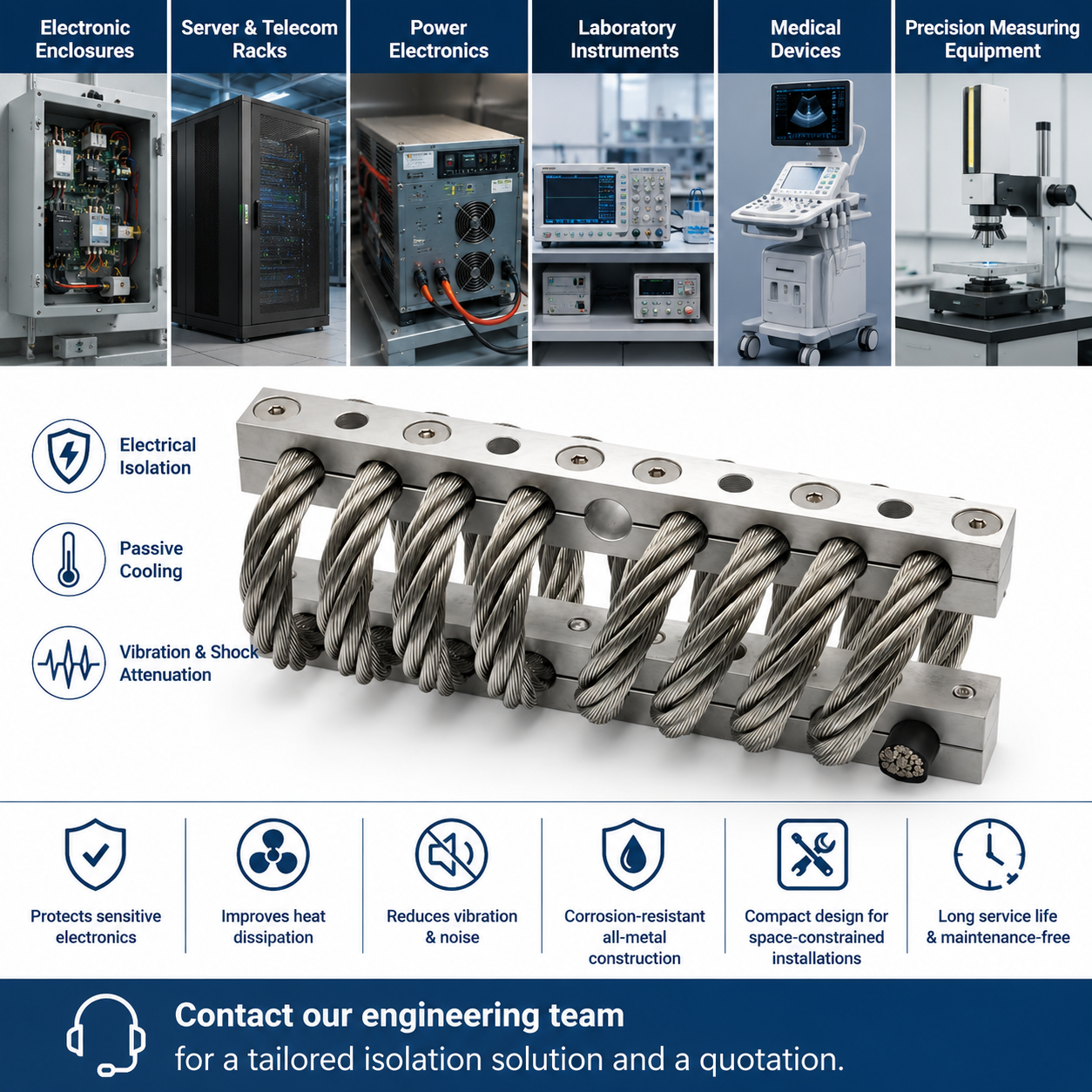

JGX-1598D-428B Wire Rope Vibration Isolator

The JGX-1598D-428B is an all-metal wire rope vibration isolator that pairs stranded stainless steel cable with aluminum alloy retaining bars to provide stable, maintenance-free shock and vibration control across all axes. Its friction-damping principle delivers a wide working frequency range and a long service life with no creep or material aging.


Galvanic Isolation & Dielectric Protection

Fitted with insulated mounting interfaces, the JGX-1598D-428B provides galvanic isolation that breaks ground loops and shields sensitive circuitry from stray potential differences between the payload and its supporting frame. This dielectric separation protects control boards, sensors, and communication modules, making the unit a dependable choice for electrically demanding installations.


Airflow-Permeable Open Design for Thermal Management

The open helical coil structure lets air circulate freely through and around the isolator, supporting passive thermal management of nearby heat-generating components. This airflow-permeable layout reduces heat build-up and helps keep operating temperatures stable inside enclosed cabinets and rack systems.


Key Specifications


Parameter Value
Model JGX-1598D-428B
Max Static Load 428 kg
Max Deflection 49.5 mm
Vibration Stiffness (Kv) 821 kN/m
Shock Stiffness (Ks) 356 kN/m
Wire Rope Material Stainless Steel
Mounting Bar Material Aluminum Alloy
Mounting Orientation Vertical


Applications


Suitable for electronic enclosures, server and telecom racks, power electronics, laboratory instruments, medical devices, and precision measuring equipment where both electrical isolation and passive cooling are required.

For a tailored isolation solution and a quotation, please contact our engineering team.
