Alloy Shell Crane Hook Anti Sway Compact Crane Weight , Steel Chrome Plated Case
Alloy Shell Crane Hook Anti Sway Compact Crane Weight , Steel Chrome Plated Case
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Nante
Certification :
ISO9001, CE
Model Number :
HD
MOQ :
1pc
Price :
N/A
Packaging Details :
Seaworthy packing
Delivery Time :
Within 14 days
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs per year
Description

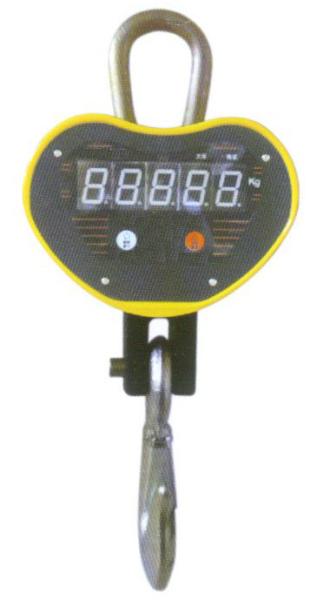

Alloy Shell Crane Hook Anti Sway Compact Crane Weight , Steel Chrome Plated Case

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: NANTE-crane scale
  • Model Number: OCS-SX
  • Type: Crane Scale
  • Power Supply: Battery
  • Display Type: LED display
  • Rated Load: 20t
  • Accuracy: Digital Calibration
  • Capacity: 2t~20t
  • Crane weight Power: 6V / 4.5Ah
  • Operating Temperature: -10℃ ~ +40℃
  • Remote Controller Distance: 10 Meters

Specifications

  • 5 digits LED display(30mm high letters)
  • Aluminum alloy housing
  • Battery voltage auto detection
  • crane weight manufacture

​This Cast-steel case crane scale can be widely used in manufacturing, fabric producing, chemical and medicine engineering, keeping grain and good in the storehouse, buying and selling of farming product etc. It is really a satisfying scale for modern management and high production efficiency.The crane scale can be directly hung on the hook of a hoist and ensure the scale to complete the tasks of loading and weighing goods synchronously.

Feature

  • Load cell scale interval number to C5(5000)
  • Scale indicator time: 3second
  • Rotary hanging hook
  • Zero setting/ Accumulation / Indication Hold
  • Automatic Zero Tracking
  • Tare In / Tare Out
  • Overload Alarm
  • Weighting Unit Switch—kg/lb/dr/ct/..
  • Scale interval optional
  • Aluminum alloy housing
  • 5 digits LED display(30mm high letters)
  • Anti sway
  • Battery voltage auto detection
  • Low battery warning and auto power off

Technical Specification

1 Manual Zero Setting 4% max.Capacity
2 Max.Tare 20% max.Capacity
3 Numerical reading stable time ≤10 Second
4 Overload Alarm Max.Capacity + 9e
5 Max.Safe Load 125% Max.Capacity
6 Ultimate load 400% Max.Capacity
7 Continuous use of Time ≥50 Hours
8 Power 6V / 4.5Ah
9 Charger DC6V/1000mA
10 Operating Temperature -10℃ ~ +40℃
11 RemoteController Distance 10 Meters
12 Power of Remote control 7#(AAA) 1.5V*2

Model

Max.

Capacity

Min.

Capacity

Division

(kg)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

H

(mm)

N.W

(kg)

Packing

(cm)
OCS-SX-2 2ton 20 1 90 250 40 240 180 500 8 43×29×30.5
OCS-SX-3 3ton 30 1 90 250 40 240 180 500 8 43×29×30.5
OCS-SX-5 5ton 50 2 100 250 50 240 180 600 9 53×29×30.5
OCS-SX-10 10ton 100 5 120 250 60 240 180 700 17 68×29×30.5
OCS-SX-15 15ton 150 5 225 345 70 240 165 855 34 42.5×35.5×37
OCS-SX-20 20ton 200 10 225 345 85 240 165 920 40 42.5×35.5×37
