Industrial Electric Trolley Hoist

• Type: Winch trolley crab

• Usage: Material lifting for heavy industry

• Sling Type: Wire rope

• Maximum Lifting Weight: 500t

• Maximum Lifting Height: 50m

• Lift Speed: 0.5~15m/min

• Power Source: 3P, 380V, 50HZ, other type also available

• Controler: Pendent control, remote control

• Duty: Medium, heavy duty

• Certification: ISO9001:2008

• Wire rope type: non-rotating wire rope

• Color: customized

Built-up hoist, winch trolley, Dual Rail Double Girder Hoist Trolley, QD Winch Trolley

Detailed Product Description

Built-up Trolley Hoists are tough and custom designed to meet the service and duty requirements of each individual application. Nante can provide superior quality heavy duty Crab Trolley known for its excellent performance and longer working life. They are designed and manufactured for heavy service. Our robust design utilizes high quality power transmission equipment, controls, and true vertical lift reeving arrangements. The open wind configuration provides for ease of inspection and preventative maintenance.

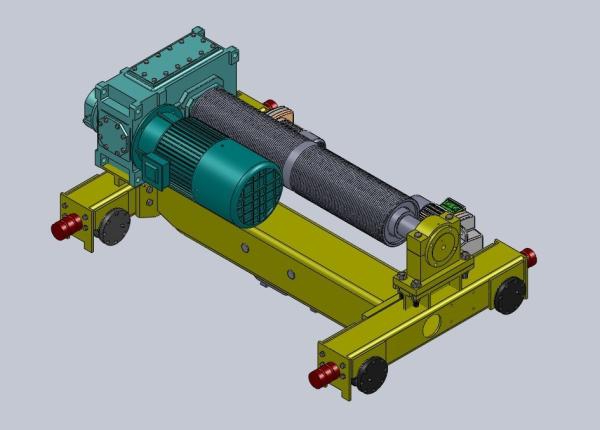

1. This trolley used in the double rail overhead crane, gantry crane. It is an electric hoisting mechanism on the trolley frame.

2. It can be separated into two big parts: trolley flame,electric hoist, motor, brake, reducer, winding drum.

3. It is widely used in industries, warehouse... as a lifting equipment.

Application

It is wildly used in material handling, metallurgy, mining, oil, petrochemical, chemical, dye, pharmaceutical industry, surrounding protection project, distribution system, port, etc.

Design features:

Standard features include:

1. Double reeving for true vertical lift
2. Upper weight operated hoisting limit switch
3. Upper and lower geared hoisting limit switch
4. Flux vector closed loop AC variable frequency hoist control
5. Scaler AC variable frequency trolley control
6. Heavy duty
7. Longer working life
8. High performance
9. Low to maintain

Trolley Frame:

One piece welded structure. Equipment is readily accessible from this upper deck.

Hoist Reducer:

Gear case is foot mounted and horizontally split. High-alloy steel mounted on spherical roller bearings.

Hoist Motor:

Standard motor is a foot-mounted motor, customer can choose the brand. Fully flexible geared coupling used at motor output shaft,

Hoist Brake:

Shoe brake is foot mounted, designed for 150% full motor torque. Brake shoes are made from non-asbestos materials and are self-aligning.

Hoist Drum:

Welded steel construction. Machined right and left hand grooving for true vertical lift. Half-depth grooving is provided for improved wire rope life.

Wire Rope:

Different specification is chosen for hoisting service. Sized for a 5:1 safety factor.

Lower Block:

Heavy, one-piece steel welding, sheaves are enclosed and fully guarded. Alloy or carbon steel hook is mounted on a roller thrust bearing for 360º rotation. A spring-loaded safety latch is also provided.

Limit Switches:

Hoist is provided with a weight operated upper limit and a rotary upper & lower geared limit switch.
