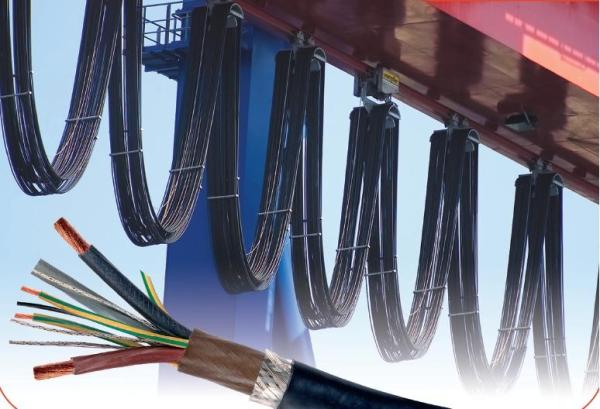

Flexible Drum-Reeling Flat Crane Cable , Copper Strand 450 / 750V 4 x 10C

• Type: flat cable with supporting steel wires
• Conductor: superfine copper strand acc. To VDE 0295,class 5
• Insulation: Butadiene-acrylonitrile rubber
• Color: various colour cores with number acc. To JISC3306 or with green/yellow

Flexible drum-reeling cable, heavy duty drum reeling rubber cable, drum -reeling cable, fire resistant electrical round cable, round elevator cable, flexible round cable, PVC insulated flexible round cable, multi-core flexible round cable, Multicore round cable, PVC insulated PVC sheathed non-flexible round cable/multi cores power cable

Applications:

As connecting and control cable for lift or crane, it is also used for various kinds of electric installation in dry or wet indoor as well as outdoor.

Properties:

The Butadiene-acrylonitrile rubber outer sheath makes the cable resistant to ozone and UV radiation as well as oil, acid, fat and solvents.

Structure:

Conductor: superfine copper strand acc. To VDE 0295,class 5

Insulation: Butadiene-acrylonitrile rubber

Colour: various colour cores with number acc. To JISC3306 or with green/yellow

Inner liner: non-woven fabric wrapping to release impact

Outer sheath: based on with Butadiene-acrylonitrile rubber as torsion protection.

Uted insulated cable rope among cores functions as tensile resistance.

The outer sheath is flame retardant and self-extinguishing ( acc. to VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1). Colour black.

Technical data:

Rated voltage: 450/750V

Test voltage: 2500V

Temperature range: fixed installation:-35℃ to +80℃

Flexible application: -20℃ to +70℃

Minimum bending radius: 10 x outer diameter

specification parameter
