200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
Specifications
Model Number :
EL-HACSM
Stroke :
200mm
Stripping diameter :
50mm
Stripping length :
200mm(Can be customized to 600mm）
Output :
165-500KG
Cylinder :
Dia.100mm
Dimension :
1000*620*350mm
Place of Origin :
China
MOQ :
1 pcs
Packaging Details :
Wooden Case
Delivery Time :
2-3 weeks
Payment Terms :
T/T
Description

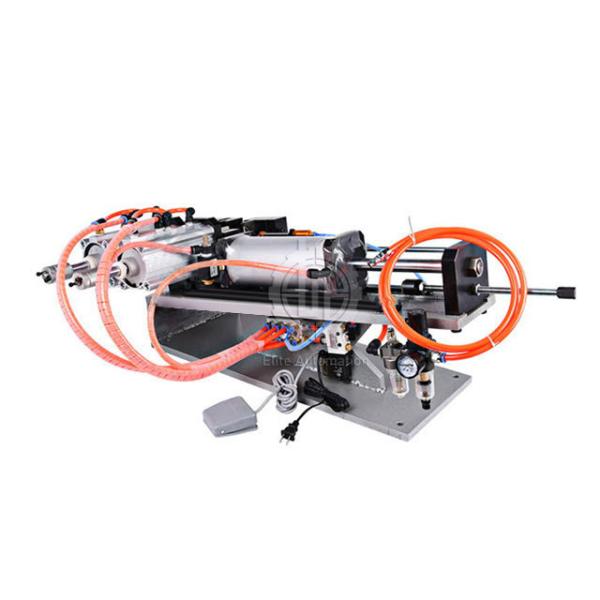

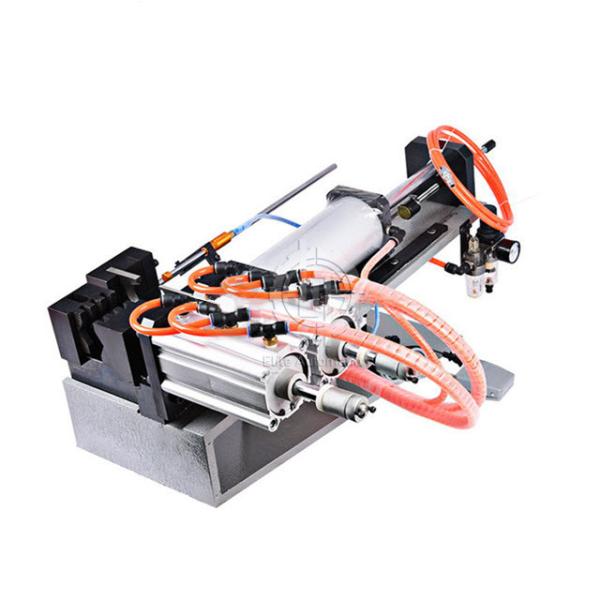

Pneumatic for High adhesion Cable Sheath Stripping Machine

This pneumatic wire and cable sheath stripping machine is designed to work with long cables and special wires that need a lot of adhesion. Stripping diameters of up to 50mm and stripping lengths of up to 600mm are available.

Controlled by gas and electricity, it is light and agile, and it is simple to use.

A unique sliding seat, a smooth reciprocating stroke, and precise peeling are all features of this unit.

Depending on the wire and cable gauge, it can be adjusted.

Wide cables or special wires with high adhesion can be processed with this machine (e.g. 35 sq mm, 50 sq mm,70 square, 95 sq mm and 120 sq mm wires and cables, new energy vehicle wiring harness, and charging gun harness)

For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.

Stroke 200mm
Stripping diameter 50mm
Stripping length 200mm(Can be customized to 600mm)
Output 165-500KG
Cylinder Dia.100mm
Voltage AC 110V/220V; 60Hz
Air pressure 5-8KG/CM2
Dimension 1000*620*350mm
Weight 110KG

200mm Stroke Scrap Wire Processing Machine For Cable Sheath Stripping
