Specifications
Place of Origin :
Jiangsu, China
MOQ :
1
Inlet diameter :
38mm
Outlet diameter :
6mm
Voltage :
380V
Power :
55W
Dimensions :
2500*2000*2500mm
Weight :
8000kg
Capstan diameter :
1400mm
Max inlet wire :
Ø38mm
Min inlet wire :
Ø6mm
Drawing speed :
30 M/min
Compressibility :
25%
Motor power :
75-110kw
Overall dimensions :
3×2.3×2.6M
Core components :
Motor
Year :
2022
Description
Product Overview

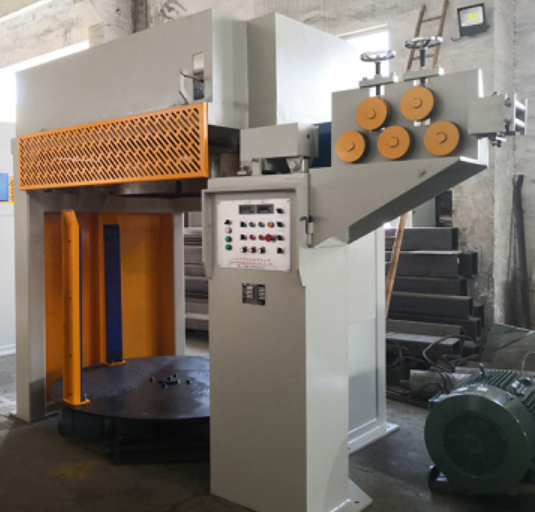

Inverted/Vertical Drop Type Wire Drawing Machine

The inverted type wire drawing machine is designed for large capacity and continuous working. It consists of wire drawing and wire coiling process, suitable for drawing high, medium, low-carbon steel wire, profile wire, stainless wire, thick non-ferrous metal wire. It applies heavy and large recoiler and is easy to unload the wire.
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
PRODUCT SPECIFICATIONS
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Model
Unit
1400
1200
1000
800
Capstan dia.
mm
1400
1200
1000
800
Max. dia. of inle wire
mm
Ø38
Ø28
Ø20
Ø12
Min. dia. of inlet wire
mm
Ø12
Ø12
Ø6
Ø6
Drawing speed
M/min
30
40
50
70
Designed compressibility
%
25
25
25
25
Motor power
kw
75-110
55-75
45-55
30-37
Weight
kg
10000
8000
6000
5000
Overall dimensions
M
3×2.3×2.6
2.8×2.3×2.6
2.5×2×2.5
2.3×1.5×2.5
