Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Specifications
Model Number :
HH-ANODE
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 square meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 ROLLS PER 30 DAYS
Delivery Time :
within 7 work days
Packaging Details :
Water-proof, plastic paper, wooden case, pallet
Name :
Iridium-based MMO Coated Titanium Anode
Material :
Gr1, Gr2 titanium
Temperature range :
<60 ℃
Apply Current :
<15000A
Oxygen evolution potential :
<1.45V
Precious metal content :
15-40g / m2
Coating Thickness :
15-40g / m2
Shape :
plates, tubes, nets, rods, wires, machined parts
Description

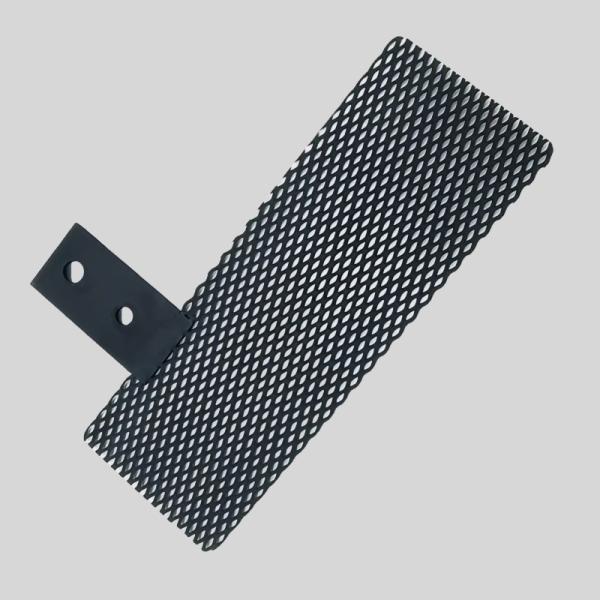

Iridium-based MMO Coated Titanium Anode Mesh

Iridium-based MMO coated titanium anodes are a type of insoluble anode, which are coated with an iridium oxide layer on a titanium substrate using a special process. This coating endows the anode with excellent electrocatalytic activity and conductivity. In electrochemical reactions, based on the classification by gas evolution, iridium-based MMO coated titanium anodes are categorized as oxygen-evolving anodes, suitable for environments where oxygen evolution is desired.

Parameter of Iridium-Based MMO Coated Titanium Anode Mesh

Coating material IrO2 + Ta2O5 + X
Base metal Gr1, Gr2 titanium
Temperature range <60 ℃
Apply Current <15000A
Oxygen evolution potential ＜1.45V
Fluoride content <50mg / L
Precious metal content 15-40g / m2
Coating thickness 8-15μm
PH value 1-12
Enhanced life 300 H-400H
Titanium anode shapes plates, tubes, nets, rods, wires, machined parts

Base Material: Pure titanium in Gr1 or Gr2;
Coating: Iridium tantalum
Coating Thickness 10~40 μm or custom;
Shape: Plate, mesh, rod or custom;
Life span: 2-5 years;

Features of Iridium-Based MMO Coated Titanium Anode Mesh


Lower cell voltage and overpotential;
Stable in performance and dimension;
Strong catalytic activity;
High corrosion resistance;
Long service life;
Tailor-made service is available.

Application of Iridium-Based MMO Coated Titanium Anode Mesh


Seawater Desalination
Electro Chlorination;
Cooling water anti-biofouling;
Electrodialysis;
Seawater electrolysis;
Salt pool chlorinators;
