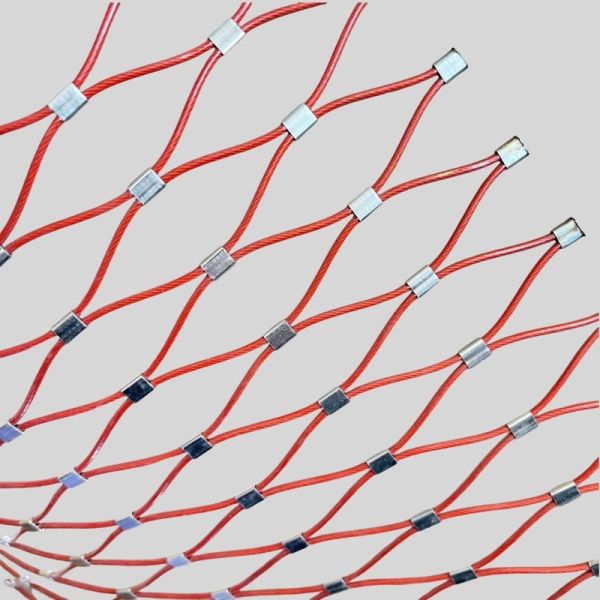

PVC coated Ferrule type wire rope net,stainless steel wire rope mesh

Quick details of Ferrule wire rope mesh:

Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is

in the combination style, the stainless wire rope are combined by the ferrules which are made

of the same grade stainless steel.

• Material: stainless steel 304, 304L, 316, 316L.
• Ferrule material: tinned copper, nickel plated copper, stainless steel.
• Surface treatment: silver or black oxide finish.
• Construction of wire cable: 7 × 7, 7 × 19.
• Cable diameter: 1.0–5.0 mm.
• Mesh opening sizes: 20–200 mm.
• Mesh opening angles: 20 , 30 , 60 , 70 , 75 . Mesh aperture at 60 as standard opening.
• Connection: ferrule or knotted.
• Certification: certified to EN1263-1 for static and dynamic load capacity.

Drawing pic for ferrule wire rope mesh?

Specification of Architectural Wire Rope Mesh:

Type of Architectural Wire Rope Mesh

Application of Architectural Wire Rope Mesh:

Stainless steel cable mesh is mainly used in the construction for wild zoos, large animal enclosure

or aviaries , garden green walls, and also handrail infill or safety mesh. Stainless steel ferrule

cable mesh and stainless steel inter-woven cable mesh have different characteristics and

applications due to different weaving techniques. Compared with ferrule type rope mesh, the

inter-woven type net is lighter in weight, more flexible, and has higher transparency, making it

especially suitable for applications such as zoo mesh and fall protection netting. Ferrule type

rope mesh is more aesthetically pleasing and decorative, and is often used as an architectural

wire mesh for decorative and protective purposes in the construction field.

Advantage of Architectural Rope Mesh :

1. High tensile strength with light weight.

2. Safe and environmental protection, close to nature.

3. Good resistance for weather and corrosion.

4. High transparency and good invisible effect.

5. Large mesh span for huge surface installation.

6. The structure is strong and durable, with a service life of more than 30 years

7. Various graphics and structures can be designed arbitrarily.

8. Easy to install, can be constructed on any structure.

Package of Architectural Rope Mesh :

• The rope mesh without frame would packed in rolls with plastic film, then put into wooden case

• The rope mesh with frame would be fastene on pallets.
