Sand Bag Hesco 5mm Dia Defensive Barrier
Sand Bag Hesco 5mm Dia Defensive Barrier
Specifications
Brand Name :
KAAP
Model Number :
KP2019122302
Certification :
ISO9001,SGS
Place of Origin :
Hebei,China
MOQ :
1 PCS
Price :
$8-15/PCS
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 PCS Per Week
Delivery Time :
10-15 days after deposit
Packaging Details :
Packed with bundles
Product name :
gabion defense
Wire diameter :
4mm, 5mm, 6mm, etc
Mesh size :
76.2*76.2mm
Surface treatment :
Galvanized, Galfan
Usage :
Military
Certificate :
ISO 9001
Description

Factory Price Defensive Sand Bag Hesco Barriers For Sale

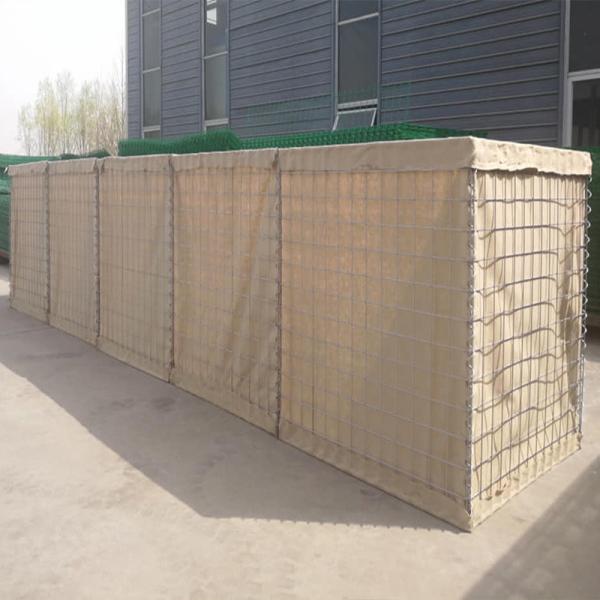

Defensive barrier, also named as defensive bastion, defense wall,sand cage, welded gabion box,etc. It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile.Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone,then defensive barrier like a defence wall or bunker, it is widely used for military fortification and flood control.

Techbical Specification for Barrier panel
Steel wire
0.1% carbon Max steel
Wire thickness
3.5mm-5.0mm
Wire tensile
500-800Mpa
Welding tensile
50-100%of wire tensile strength
Mesh size
76.2*76.2mm
Surface treatment
 Zinc coating or Zinc-Alu coating 40-600g/sqm
Techbical Specification for Geotextile Fabric
Color
Beige sand, Olive green, Grey
Mass(g/sqm)
250,300,350
Tensile strength
16kN
Tear Strength
0.42kN
CBR Puncture
3.1kN
UV strength retention ASTM D4355

50% at 500hours

(5years use life in common environment)

70% at 500hours

(10 years use life in common environment)

Speciation details of defense bastion:

Wire Thickness:
QS 1,2,3,4,,5,8,9.........8 Gauge(4mm)Galvanized steel wire
QS 7,10......................6 Gauge(5mm)Galvanized steel wire
Mesh Size:3" x 3"( 75mm x 75mm)
Sprial Wire: 8 Gauge(4mm)Hard steel wire, it also called as Coil Hinges, Helical wire.
Joining Pins: 8 Gauge(4mm)galvanized hard steel wire, 10 Gauge(3mm) galvanized hard steel wire.
Geotextile: 3mm heavy-duty non-woven polypropylene cloth.
Geotextile weight:300g/m2
Geotextile colour: Beige, Green
Geotextile surface treatment: Hot dipped galvanized, Al+Zn Alloy Wire.(=Galfan Wire)

Sand Bag Hesco 5mm Dia Defensive Barrier

Application:

∗Perimeter Security and Defence Walls,

∗Equipment Revetments,

∗ garden landscaping decorative

∗Personnel and Material Bunkers, Observation Points, Defensive Firing Positions

∗Guard Posts, Explosives and Contraband Search Areas, Highway Checkpoints,

∗Border Crossing Checkpoints, Protecting Existing Structures, Flood control retaining wall

∗Coastal Erosion, Protection engineering of seaside area.

Sand Bag Hesco 5mm Dia Defensive Barrier

Sand Bag Hesco 5mm Dia Defensive Barrier
Sand Bag Hesco 5mm Dia Defensive Barrier

Sand Bag Hesco 5mm Dia Defensive Barrier

Sand Bag Hesco 5mm Dia Defensive Barrier

Sand Bag Hesco 5mm Dia Defensive Barrier
