Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Australia SYDNEY welded garrison steel fencing panels
Specifications
Brand Name :
Tubular Crimped Spear Steel Security Fence
Model Number :
Steel Fence-1200mm-1500mm-1800mm-2100mm-2400mm
Certification :
AS/NZS1163& AS/NZS4506-1998
Place of Origin :
New Zealand And Australia Design
MOQ :
300
Price :
66.66$
Payment Terms :
TT 30% deposit balance 70% at sight of done cargo
Supply Ability :
90001
Delivery Time :
7 days
Packaging Details :
Metal Pallet With Plastic Jacket
Materials :
Q235
Color :
Black and Grey or other
Dimensions :
1800mm x 2400mm ,2100mm x 2400mm or Customized
Salt Spray Testing :
Pass
Treatment :
Powder Coated ,Hot Dipped Galvanized
Technical :
Punch Pipes and Welding etc
Nick Name :
Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence
Upright Pipes :
25mm x 25mm x 1.20mm
Rails :
40mm x 40mm x 1.60mm
Post :
65mm x 65mm x 2.00mm x 3000mm
Popular :
Powder Coated Stain Black
Apllication :
Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence
Description

Australia SYDNEY welded garrison steel fencing panels

Welded garrison steel fencing panels often used decoratively for domestic boundaries, using the vertical steel pales, the pickets and horizontal rails to form the fence. Horizontal top rail and bottom rail are attached to fence posts by screws, which are installed upright into the ground Evenly spaced boards are affixed vertically to the rails. Steel fencing is strong, durable and fulfil many demanding roles.

To achieve ideal electrostatic spraying polyester effect, our spraying power adopts AKZO NOBEL, which manufacturer is one of the world's top 500 enterprises.

It is regularly used around industrial units, civic amenities, schools, residence and other such applications where security is a major concern. With its Decoration function, it is popular in most countries and areas.

Australia SYDNEY welded garrison steel fencing panels

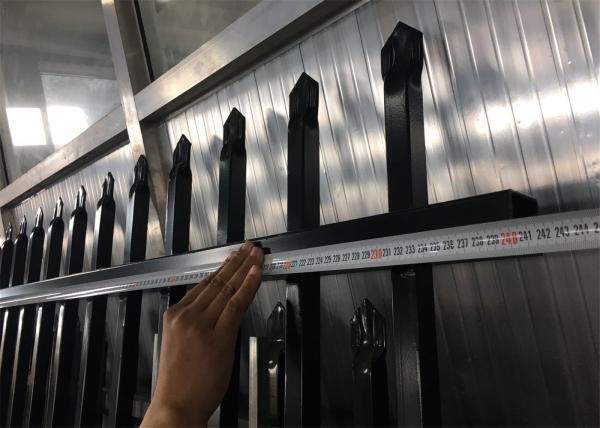

Detailed Images

Size

2400mm (L) x 2100mm (H) , 2400mm (L) x 1800mm (H)
2000mm (L) x 1500mm (H) , 2000mm (L) x 1200mm (H)

Rail

40mm x 40mm x 1.6mm/1.2mm, 38mm x 25mm x1.6mm/1.2mm
2 rails, 3 rails or 4 rails

Picket

25mm x 25mm x 1.2mm/1.0mm 19mm x 19mm x 1.0mm/0.8mm

Post

60mm x 60mm x 2.5mm/2.0mm/1.5mm
80mm x 80mm x 2.5mm/2.0mm/1.5mm

Fittings

Metal clips , bolt and nuts

Raw Material

Hot dipped galvanized tube

Surface Face

Powder coated , Popular color is black

Australia SYDNEY welded garrison steel fencing panels

Producing Process:
CAD design---Raw Material--Cutting--Fix moulding--welding---polishing---Sandblasting---Powder coated---Inspection---Packing

Garrison steel fencing panels Standard size:

1. Heavy duty Crimp top security fence in Black colour only
2.Width 2400mm x Height 2100mm Crimp top diamond shape
3.40x40x1.6mm top rail, 25x25x1.2mm Verticals
4. There are 17 vertical pockets with diamond crimped on top
5. A gap in between the pickets is 110mm
6.60x60x2mm thick post - these are 2.9m long each not 2.6m long as others supply

Advantages:
1. Our garrison fence widely used in the garden, outdoor, villa, balcony, indoor decoration, we have many items for your choice
2. We could design for your project according to your idea, or product according to your drawing directly.
3. We own certificate of the system of quality certification, we were responsible for all the products we produced.
4. Soonest delivery and good after-sale- service

Packing & Delivery

A.Panel: each panel wrapped in plastic film or bubble film, then metal or a wooden pallet.
B. Post: each piece wrapped in pearl film or bubble film, then metal or wooden pallet
C. Accessories: woven bag or carton
D. We also can pack the goods according to your requirements.
