9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
Specifications
Brand Name :
LNF-Chain link Fabric
Model Number :
3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification :
ISO
Place of Origin :
Europea Design China Made
MOQ :
500 liner meter
Price :
3.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 steel
Color :
Any Ral Color
Treatment :
Hot Dipped Glavanized,Powder Coated
Mesh Opening :
50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,60mm x 60mm ,80mm x 80mm
Diameter :
1.5mm to 5.00mm
Type :
Woven Mesh
Warranty :
5 -25 years depand on the treatment
Main Market :
Europea ,Middle East ,USA ,AU etc
Accessoires :
Tension Band ,Bar ,Steel Plate and Post Caps etc
Customized :
Available
Feature :
Diamond Mesh
Application :
Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence,and Son
Trade Mark :
N/M
Sample :
Free but pay freight cost
Nickname :
wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence
Description

9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence

Residential chain link fence is the most popular and economical solution for most families in USA. Its transparent nature provides maximum visibility, which is helpful to property protection. It comes with varied specifications of wire gauges, sizes of mesh opening, heights and colors. You can also customize the diamond mesh fence.
There are two coating - hot-dip galvanized and PVC coated in any color. Galvanized residential chain link fence is more cost-effective than PVC coated and has even been widely used as garden and yard fence. However, PVC-coated diamond mesh fence has been increasingly used for their charming appearance and better corrosion-resistance, although it is a little more expensive.
Product description:
  • Core wire gauge: 9, 11 & 11-1/2.
  • Size of mesh: 1-3/4 & 2 in.
  • Height: 36, 42, 48, 60 & 72 in.
  • Selvage: knuckle.
  • Finish: hot-dip galvanized or vinyl-coated.
  • Color: silver, black, green or as required.
  • Parts: gates, rails, posts and hardware for installation are supplied separately.
  • Standard: meets or exceeds ASTM specifications.
  • Applications: greenhouse, substation, construction project, pasture, livestock, etc.
    • Greenhouse.
    • Substation.
    • pasture.
    • Livestock.
NOTE: Available in custom specifications.
Features & benefits:
  • Both selvages of bottom and top are knuckled for security.
  • Available in hot-dip galvanized including GAW or GBW.
  • Available in vinyl-coated.
  • Black and green are popular color.
  • Economical cost.
  • Easy to install.
  • Free maintenance.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
RCF-02: Plants on chain link fence.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
RCF-03: 4-feet chain link fence with single swing gate.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence

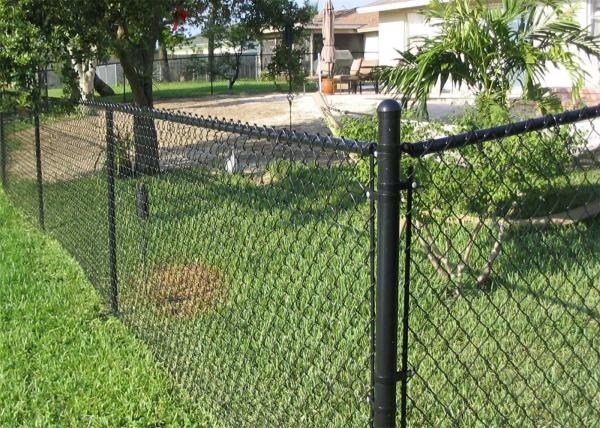

RCF-04: Black residential chain link fence.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
RCF-05: Neighboring black chain link fence.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric

9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence

2. The manufacturing of Chain Link Fence Fabric:
A chain-link fence (also referred to as wire netting, wire mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or PVC-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence

3. Features and benefits:
Commercial chain-link fence systems are commonly used because they're durable and easy to install. All steel components of a galvanized chain-link fence system are hot-dip zinc coated and guaranteed with a 12-year coating warranty. Zinc is an element that's applied to steel in molten form, creating a coating that protects the steel from rusting. Many of the fittings used in commercial fence systems are made from malleable steel and cast iron for durability. Ties used to attach the chain link fabric to the framework between terminal posts are made from aluminum, resulting in maintenance-free security.
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
4. Specifications:
Chain link fence System:
Chain-Link Fabric
Type
Specification
Gauge
Mesh
Heights
Selvage
Galvanized before Weaving
Low carbon steel wire
9 or 11
2"
3', 42", 4', 5', 6', 7', 8', 10' and 12' or as your request
Knuckled and Knuckled, Barb and Knuckled 6', or Barb and Barb
Framework
Top Rail
3' to 5' High

6' to 12' High
32mm O.D.

42mm O.D.
Line Posts
3' to 5' High

6' to 12' High
48mm O.D.

60mm O.D.
Terminal Posts
3' to 12' High

For Heavy Gates
60mm O.D.

100mm O.D.
Gate
Fabric
Frame
Same Mesh and Gauge as Chain Link Selected
Same as Top Rail Selected
Fittings
Steel Fittings
Tie Wires
Hot Dip Galvanized Or PVC coated available
galvanized
Caps, Eye Tops,
Rail Ends
Malleable, Cast Iron Steel, Pressed
Material Composition
Colors
Polyethylene Thermoplastic

Green, Black, Brown, Gray, Redwood, Blue, Desert Sand
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence


5.Details of chain link fence
9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence


Our Services
1. Reply your inquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. The exclusive & unique solution can be provided by our well-trained and professional engineers;
5. If you have a large number of orders, we will send you 1 ~ 2 parts to prevent damage in transit;
6. We will try our best to meet your requirements and supply you the best quality of the products.

9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential chain link fence
FAQ
1, Q: Can you offer a free sample?
A: Yes, but usually the customer need to pay the freight.
2, Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in the wire mesh fence field for 20 years.
3, Q: What information should I provide, if I want the lowest quotation?
A: The specification of the chain link fence.
4, Q: Can I customize the products?
A: Yes, as long as providing specifications, drawings, can only do what you want products.
5, Q: how about the delivery time?
A: Usually within 15- 20days, customized order may need a longer time.
6, Q: How about the payment terms?
A:T/T ( with 30% deposit ) , L/C at sight. Western Union.
7, Q: What is your after-sales service?
A: We offer professional advertising pics and spare hardware on free.
