Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Prison fence anti-climb security fencing/358 welded wire fence
Specifications
Brand Name :
LNF-ClearVU Wire Fence
Model Number :
3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification :
ISO
Place of Origin :
South African Design China Made
MOQ :
500 liner meter
Price :
18.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel
Mesh Opening :
3" x 0.5" x 8gague wire,12.70mm x 76.20mm
Diameter :
4.00mm ,3.00mm
Size :
Available Customized
Color :
All RAL color card
Treatment :
Hot Dipped Galvanized Or Powder Coated
V Beams :
Available
Sample :
Free but pay freight cost
Accessoires :
Clamp,Post ,Y arm for barb wire
Feature :
Anti ,Resistant ,Cut ,Climb
Main Market :
Africa ,Oceania ,Aisa
Salt Spray Test :
Pass
Description

Prison fence anti-climb security fencing/358 welded wire fence

358 Fence / High security fencing, as a kind of anti-anti-climb and anti-cut fence barrier, is extremely difficult to penetrate or attack using conventional hand tools. The panels have small apertures which prevent foot and finger holds making it anti-climb with excellent visibility and resistance to vandalism. High weld strength at each intersection makes the fence strong and durable. It is designed to provide security and protection for industrial and commercial properties and public utilities. As well,it is suitable for military, airport, prison or security units, if together with electronic alarm and detection systems.
Panels

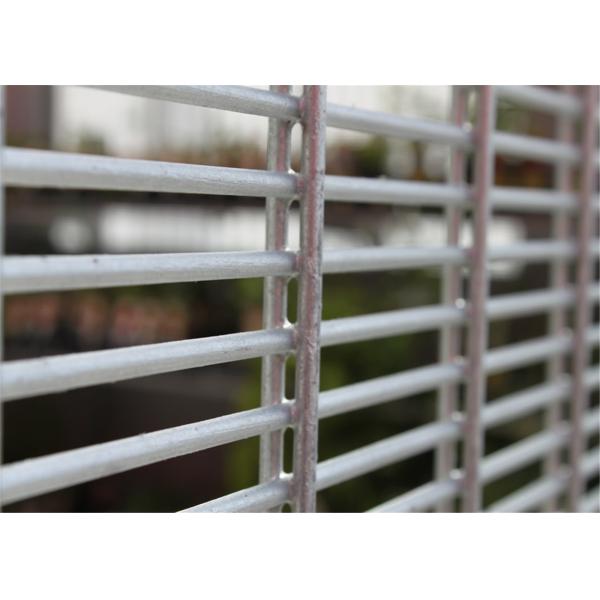

Prison fence anti-climb security fencing/358 welded wire fence358 security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 75mm × 12.5mm × 4mm mesh openning. This mesh fencing is for high security applications, though is also often used for lower security applications for peace of mind. The very small apertures mean that it is not possible for any would-be intruder to get a finger or toe hold for climbing, or indeed for getting a cutting tool into.
The panels are made of heavy mesh with a high level of security in width 2515mm and a height of 2007mm to 3302mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300mm.
  • Mesh pattern: 75mm (3") × 12.5mm (0.5") resistance welded well at each intersection
  • Wire diameter: 4mm horizontal wire and vertical Wire.
  • Weld strength: range 540-690 N/m2
  • Surface treatment: 358 mesh fence panels made from hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

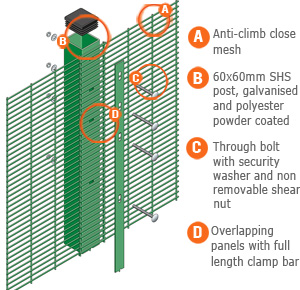

  • Installation: Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts.
Prison fence anti-climb security fencing/358 welded wire fence
Post
Posts are made from steel hollow sections to suit the height of the mesh fence panels, with the mesh overlapped and secured with full length clamp bars and security fixings.
  • Material: high grade steel for maximum strength and rigidity.
  • Post section: 60×60mm,80×60mm, 80×80mm or 120×60mm.
  • Post Plate thickness: 2.5mm or 3.0mm.
  • Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
  • Post cap: 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap.
  • Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
Colors
Linkland 358/Security Fence can be supplied in all colors according to international standard RAL Colors, the popular colors as below:
Prison fence anti-climb security fencing/358 welded wire fence
Coating and Warranty
Prison fence anti-climb security fencing/358 welded wire fenceThe High security fence are manufacturedusing galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure, and is backed by our 10-year Manufacturer’s Warranty.
Specifications of LINKLAND™ 358 Fence/ High Security Fencing
Panel Size
(Height × Width)
Fence Post
(Height × Size × Thick )
Clamp Bar
(Height × Width × Thick )
Inter or corner Clamp No (PCS)
2007mm ×2515mm
2700mm ×60×60×2.5mm
2007mm×60mm ×5.00mm
7 or 14
2400mm× 2515mm
3100mm×60×60×2.5mm
2400mm×60mm ×5.00mm
9 or 18
2997mm×2515mm
3800mm×80×80×2.5mm
2997mm×80mm ×6.00mm
11 or 22
3302mm ×2515mm
4200mm×80×80×2.5mm
3302mm×80mm ×6.00mm
12 or 24
3607mm ×2515mm
4500mm×100×60×3.0mm
3607mm×100mm×7.00mm
13 or 26
3607mm ×2515mm
4500mm×100×100×3.0mm
3607mm×100mm×7.00mm
13 or 26
4204mm × 2515mm
5200mm×100×100×4.0mm
4204mm×100mm×8.00mm
15 or 30
4496mm × 2515mm
5500mm×100×100×5.0mm
4496mm×100mm×8.00mm
16 or 32
5207mm ×2515mm
6200mm×120×120×5.0mm
5207mm×100mm×8.00mm
18 or 36
*Customized color and size are available, OEM orders are welcomed!
Material: low carbon steel wire
Wire Dia: 4mm, 5mm
Mesh Hole: 76.2 x 12.7mm ,75x13mm
Height: 2400mm, 2500mm, 3000mm
Width:2500mm,3000mm
Surface Treatment: hot dipped galvanized, galvanized and powder coated, PVC coated
Features:
1)Anti-climb: More small openings make it difficult to climb and penetrate.
2) Anti-cut: Robust wire and welded joints make it impossible to be
cut by conventional wire cutters
Panels
Posts
Fence
Panel Size
section
O/A Length
Total number of fixings
Height
m
Height/Width
mm
Inters- 1 Clamp bar
Corners- 2 Clamp bars
2.0
2007 x 2515
60x60x2.5mm
2700
7
14
2.4
2400 x 2515
60x60x2.5mm
3100
9
18
3.0
2997 x 2515
80x80x2.5mm
3800
11
22
3.3
3302 x 2515
80x80x2.5mm
4200
12
24
3.6
3607 x 2515
100x60x3mm
4500
13
25
3.6
3607 x 2515
100x100x3mm
4500
14
2
Prison fence anti-climb security fencing/358 welded wire fencePrison fence anti-climb security fencing/358 welded wire fence
