6FT X 4.75FT “Quebec French Land TEMPORARY FENCE Mesh3x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont
6FT X 4.75FT “Quebec French Land TEMPORARY FENCE Mesh3x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont
6FT X 4.75FT “Quebec French Land TEMPORARY FENCE Mesh3x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont
6FT X 4.75FT “Quebec French Land TEMPORARY FENCE Mesh3x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont
6FT X 4.75FT “Quebec French Land TEMPORARY FENCE Mesh3x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont
6FT X 4.75FT “Quebec French Land TEMPORARY FENCE Mesh3x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont
Specifications
Brand Name :
LNF-Temporary Construction Fence
Model Number :
4'6'8' Height and 2100mm height etc
Certification :
ASTM
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
50mm x 100mm ,2" x 4"
Diameter :
4.00mm ,8 gauge wire
Type :
Weld Mesh and Steel
Color :
Available any Such as Yellow ,Black ,Blue ,Red etc
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
60mm x 8.00mm thick x 760mm length
Accessoires :
Top Couper
Market :
Markets: Canada (vancouver, toronto, montreal etc. ) and USA
Description

6FT X 4.75FT “Quebec French Land" TEMPORARY FENCE Mesh3"x6' Diameter 4.00mm Zinc Coated And Power Coated Dupont

Temporary Fence Panels Aplication
*Construction Sites pipes and apartments
*Commercial Uses
*School Board Portable site safety
*Site Security
*Crowd control/ Vendor Security
*Residential Construction Sitesa
*Restoration and Fire Damaged Sites
*Special Events (Concerts, Festivals, Cultural, Parades and Sporting Events).
Surface treatment: pre-galvanized tubes then Powder coating.
Production & details
Pre hot dip gal. wire drawing--- cut wire ---wire welded---cut the corners of the mesh---Pre hot dip gal. pipes(ends of the horizontal pipes are smashed) welded-polish the welds-paint anti-rust epoxyspray sliver powder coat on each welds-stacking-packaging
Specification
Material hot galvanized steel
Height 1000-3000mm
Width 2000-3500mm
Frame size 25-40mm
Wire diameter 3.0-5.0mm
Mesh size 50*150/65*150/50*200mm
Base steel feet
Surface treatment powder coated
We can also accept customized orders upon strong R&D capability.
6FT X 4.75FT “Quebec French Land
6'x10' temporary fence panels Packing & loading

metal pallet :Loading and unloading the container with Forklift easily.
plastic film :there is a plastic fim between fence panel to prevent friction.
packing strips :fixing the fence panel and pallet.
TEMP FENCE-” Quebec French Land ” POWDER COATED TEMPORARY CONSTRUCTION FENCE
Panels Height
Panel Length
Frame pipes Optional
Middle RE Optional
Weldmesh Aperture
Wire diameter
H6’/1830mmxL4.75’/1450mm
1.0”/25mm 1.2”/30mm
3/4”/20mm
1”/25mm
2”x4”/50x100mm
3”x6”/75x150mm
3.0mm /3.5mm/4.0mm
LAYOUT DESIGN DRAWING 6FT X 4.75FT “Quebec French Land" TEMPORARY FENCE
6FT X 4.75FT “Quebec French Land


SURFACE TREATMENT
Optional 1 Traditional
Fully hot dipped galvanized into zinc pool
Optional 2 Quality
Fully hot dipped galvanized into zinc pool then Electrostatic INTERPON AKZO NOBEL powder coated
Optional 3 Popular
Pres-Galvanized then Electrostatic INTERPON AKZO NOBEL powder coated
Optional 4 Cheapest
Pres-Galvanized then anti-corrosion silver painted
STEEL PLATE FOOT OPTIONAL
SIZE 1
34” LENGTH X 3.5” WIDTH X0.3” THICK /863MM LENGTH X89MM WIDTH X 7.6MM THICK
SIZE 2
28” LENGTH X 3.5” WIDTH X0.25” THICK /863MM LENGTH X89MM WIDTH X 6.3MM THICK
SIZE 3
24” LENGTH X 4” WIDTH X 0.25” THICK /600MM LENGTH X100MM WIDTH X 6.3MM THICK
POWDER COLOR
Available all RAL such as yellow, grass green, dark green, red, blue and grey, black, orange, etc
Accessories

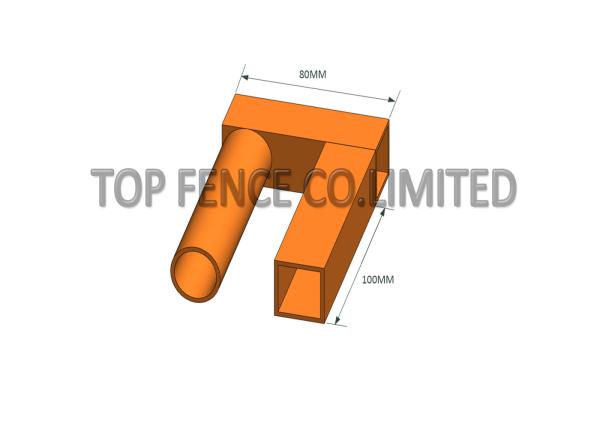

Brace in High Wind, Top Coupler, Vehicle Gates and Pedestrian Gates, etc
Packing :
Metal Pallet Wrapped with Soft Papers and Plastic Film
