6FT X 9FT “Montreal TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2x4 Diameter 8ga wire/4.00mm powder coated Orange
6FT X 9FT “Montreal TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2x4 Diameter 8ga wire/4.00mm powder coated Orange
6FT X 9FT “Montreal TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2x4 Diameter 8ga wire/4.00mm powder coated Orange
6FT X 9FT “Montreal TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2x4 Diameter 8ga wire/4.00mm powder coated Orange
6FT X 9FT “Montreal TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2x4 Diameter 8ga wire/4.00mm powder coated Orange
6FT X 9FT “Montreal TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2x4 Diameter 8ga wire/4.00mm powder coated Orange
Specifications
Brand Name :
LNF-Temporary Construction Fence
Model Number :
4'6'8' Height and 2100mm height etc
Certification :
ASTM
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
50mm x 100mm ,2" x 4"
Diameter :
4.00mm ,8 gauge wire
Type :
Weld Mesh and Steel
Color :
Available any Such as Yellow ,Black ,Blue ,Red etc
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
60mm x 8.00mm thick x 760mm length
Accessoires :
Top Couper
Market :
Markets: Canada (vancouver, toronto, montreal etc. ) and USA
Description

6FT X 9FT “Montreal" TEMPORARY FENCE Tubing 25mm x 1.2mm Mesh 2"x4" Diameter 8ga wire/4.00mm powder coated Orange

With flexible structure and various colors for choice, Canada style temporary fencing is popular for your construction sites ,semi construction yard
Canada portable fence with square frame and vertical or horizontal square pipe is a kind of welded portable fence. Connected by top coupler, metal feet and other accessories, it becomes a whole fence system for temporary fencing. Because of the various colors, high strength and durability, it has a long service life and it's safe for residences fencing and factories fencing.

Application:
· Security at construction sites.
· Protection from theft and accidents.
· Secure building area.
· Special event crowd control.
· Crime & disaster scene security.
Features:
temporary fencing systems can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
Specification:
Product Information
Material:
Low carbon steel.
Surface treatment:
PVC coated, powder coated, galvanized, painted.
Common color:
Yellow, orange, green, blue, red.
Middle frame:
Vertical or horizontal square pipe.
Frame pipe shape:
Square.
Fittings:
Top coupler:
Coupler with two round tubular legs.
Coupler with round and square tubular legs.
Fencing feet:
Common size: 860 × 80 × 6 or 7 mm (thickness).
Standard fence feet.
Anchor base feet.
Specification of Canada Temporary Fence
Item
Length
Height
Mesh Opening
Frame Pipe
Wire Diameter
Middle Frame
DF-CTF-01
8’
3.75’
2" × 4"
1" × 1", 1.5" × 1.5"
3, 3.5, 4 mm
20 × 20 mm, 25 × 25 mm
DF-CTF-02
8.5’
4’
2" × 4"
1" × 1", 1.5" × 1.5"
3, 3.5, 4 mm
20 × 20 mm, 25 × 25 mm
DF-CTF-03
9’
6’
2" × 4"
1" × 1", 1.5" × 1.5"
3, 3.5, 4 mm
20 × 20 mm, 25 × 25 mm
DF-CTF-04
10'
6'
2" × 4"
1" × 1"
3, 3.5, 4 mm
20 × 20 mm, 25 × 25 mm
DF-CTF-05
10’
8’
2" × 4"
1" × 1", 1.5" × 1.5"
3, 3.5, 4 mm
20 × 20 mm, 25 × 25 mm
TEMP FENCE-” Montreal” POWDER COATED TEMPORARY CONSTRUCTION FENCE
Panels Height
Panel Length
Frame pipes Optional
Middle RE Optional
Weld mesh Aperture
Wire diameter
H6’/1830mmxL9’/2743mm
1.0”/25mm 1.2”/30mm
3/4”/20mm
1”/25mm
2”x4”/50x100mm
3”x6”/75x150mm
3.0mm /3.5mm/4.0mm

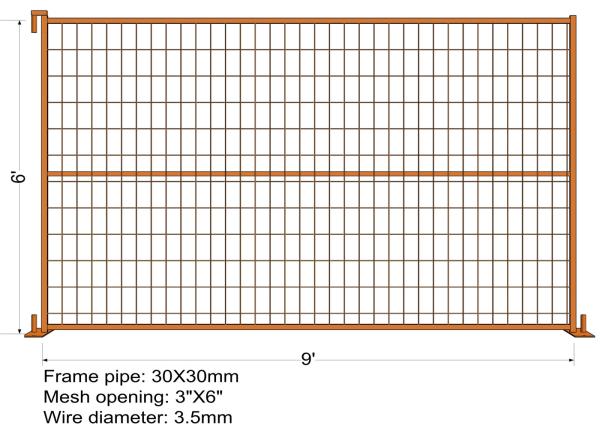

LAYOUT DESIGN DRAWING 6FT X 9FT “Montreal" TEMPORARY FENCE
6FT X 9FT “Montreal


SURFACE TREATMENT
Optional 1 Traditional
Fully hot dipped galvanized into zinc pool
Optional 2 Quality
Fully hot dipped galvanized into zinc pool then Electrostatic INTERPON AKZO NOBEL powder coated
Optional 3 Popular
Pres-Galvanized then Electrostatic INTERPON AKZO NOBEL powder coated
Optional 4 Cheapest
Pres-Galvanized then anti-corrosion silver painted
STEEL PLATE FOOT OPTIONAL
SIZE 1
34” LENGTH X 3.5” WIDTH X0.3” THICK /863MM LENGTH X89MM WIDTH X 7.6MM THICK
SIZE 2
28” LENGTH X 3.5” WIDTH X0.25” THICK /863MM LENGTH X89MM WIDTH X 6.3MM THICK
SIZE 3
24” LENGTH X 4” WIDTH X 0.25” THICK /600MM LENGTH X100MM WIDTH X 6.3MM THICK
POWDER COLOR
Available all RAL such as yellow, grass green, dark green, red, blue and grey, black, orange, etc
Accessories
Brace in High Wind, Top Coupler, Vehicle Gates and Pedestrian Gates, etc
Packing :
Metal Pallet Wrapped with Soft Papers and Plastic Film
6FT X 9FT “Montreal
