Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6/40mm*16ga mesh 3x6 *3.5mm
Specifications
Brand Name :
LNF-temporary fence panels
Model Number :
2.1M*2.4M 2.1M*3.3M 2.1M*3.5M Temp Fence
Certification :
ASTM/AS4687-2007
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
50mm x 100mm ,2" x 4"
Diameter :
4.00mm ,8 gauge wire
Type :
Weld Mesh and Steel
Color :
Available any Such as Yellow ,Black ,Blue ,Red etc
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
60mm x 8.00mm thick x 760mm length
Accessoires :
Top Couper
Description

Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6"/40mm*16ga mesh 3"x6" *3.5mm

We can supply temporary fence anywhere in Alberta, Northern BC, and Saskatchewan, Canada Market. We specialize in a temporary fence for construction, special events, seasonal enclosures, and emergencies. Our stable, freestanding fence will provide safety and security for any project. We can ship our fence anywhere in Canada, America , Europe Market
Fence height
4ft, 6ft, 8ft
Fence width/length
9ft, 9.5ft, 10ft
Wire diameter
3mm, 3.5mm, 4mm
Welded mesh hole opening
50x100mm (2”x 4”), 75x100mm, 55x110mm, etc
Frame square tube
25x25mm, 30x30mm
Horizontal square rail
20x20mm, 25x25mm, 30x30mm
Accessories
Top clip, base plate
Raw material
Low carbon steel wire, carbon steel square tube
Surface treatment
Epoxy polyester powder coated, pvc coated,galvanized
Features:
Detail images

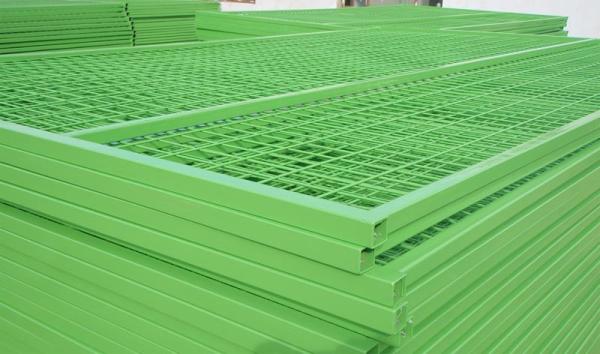

Specification
  • Welded by low carbon steel wire or galvanized wire, with hot dipped galvanized or powder coated finish. Sized as required
  • Frame pipe is always square pipe 25mm,32mm,etc,and 20mm,25mm infilled pipe with 1.2mm,1.5mm,2.0mm,2.5mm thickness.
  • Mesh always are 50x100mm,50x150mm with 3mm,3.5mm,4mm wire diameter.
  • Panel size 6x9.5ft ,6x10ft ,8x10ft ,etc
Popular Size
Wire Diameter
3.00-5.00mm
Mesh Opening
50 x 100mm (2’' x 4’'),50*150mm
Height
4’-8'
Width
9'-12'
Outside Frame
25x25mm, 30x30mm
Middle Pole
20x20mm, 25x25mm
Colour Available
Yellow, Grass green Dark green, Blue, red etc.
Size could be as request
Temporary fence Clamps
  • To connect the panels with galvanized or powder coated finish.
  • One side solid square bar(150x21.7x21.7mm), one side solid round bar(150x21.6mm) with solid square bar connector(100x22x10mm).

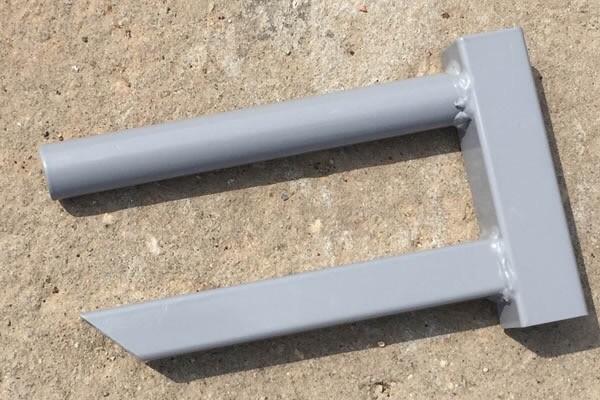

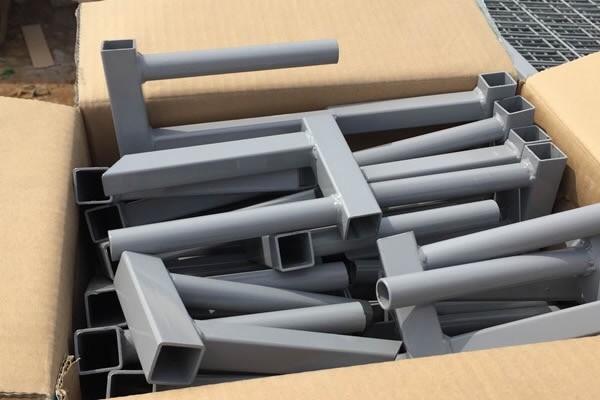

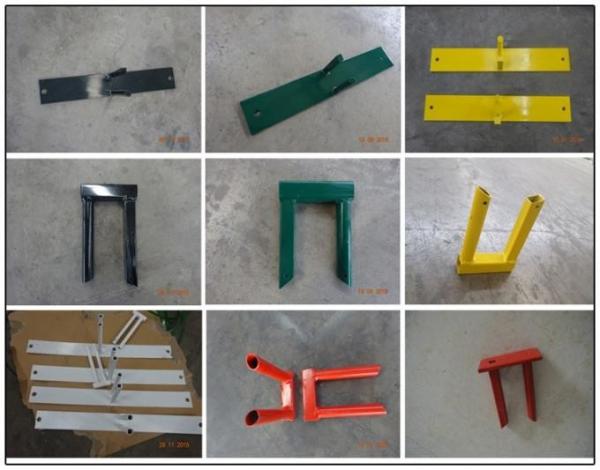

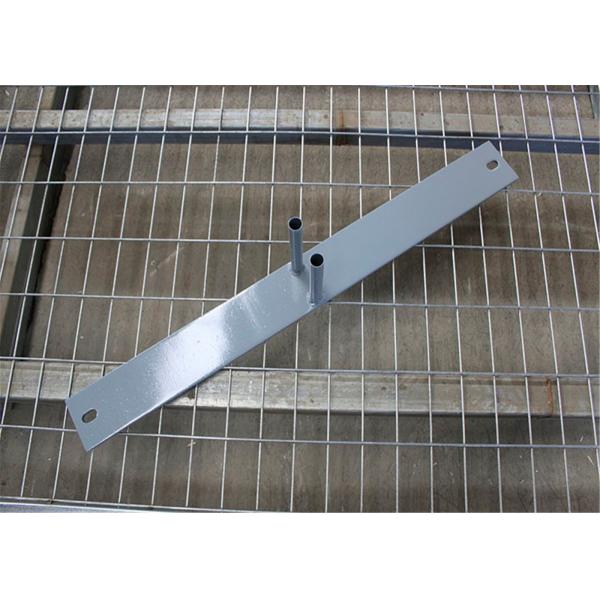

Base steel
  • Steel plate base for your choose.
  • Always the feet size is: L800mm x W80mm x 8mm,L 760mmxW120mmx8mm.
  • 8mm plate with 19mm holes at each end for pins or stakes.
  • 150mm solid rod (one square, one round).
  • With galvanized or powder coated finsih
1.professional Laboratory to test the zinc coating and tension strength----to be sure the materials are as same quality you required
2. Product first sample test then Quality spot check ----Measure all the specifications after the first product produced by kinds of tools. Make sure this is the thing we want.
On the other way, if there is any specifications wrong, we can correct it inmmediately, save more time, ensure the shippment we promised.
Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6Construction Security Temp Fence panels 6ft /1830mm x 9.5ft /2950mm Frame 1.6
