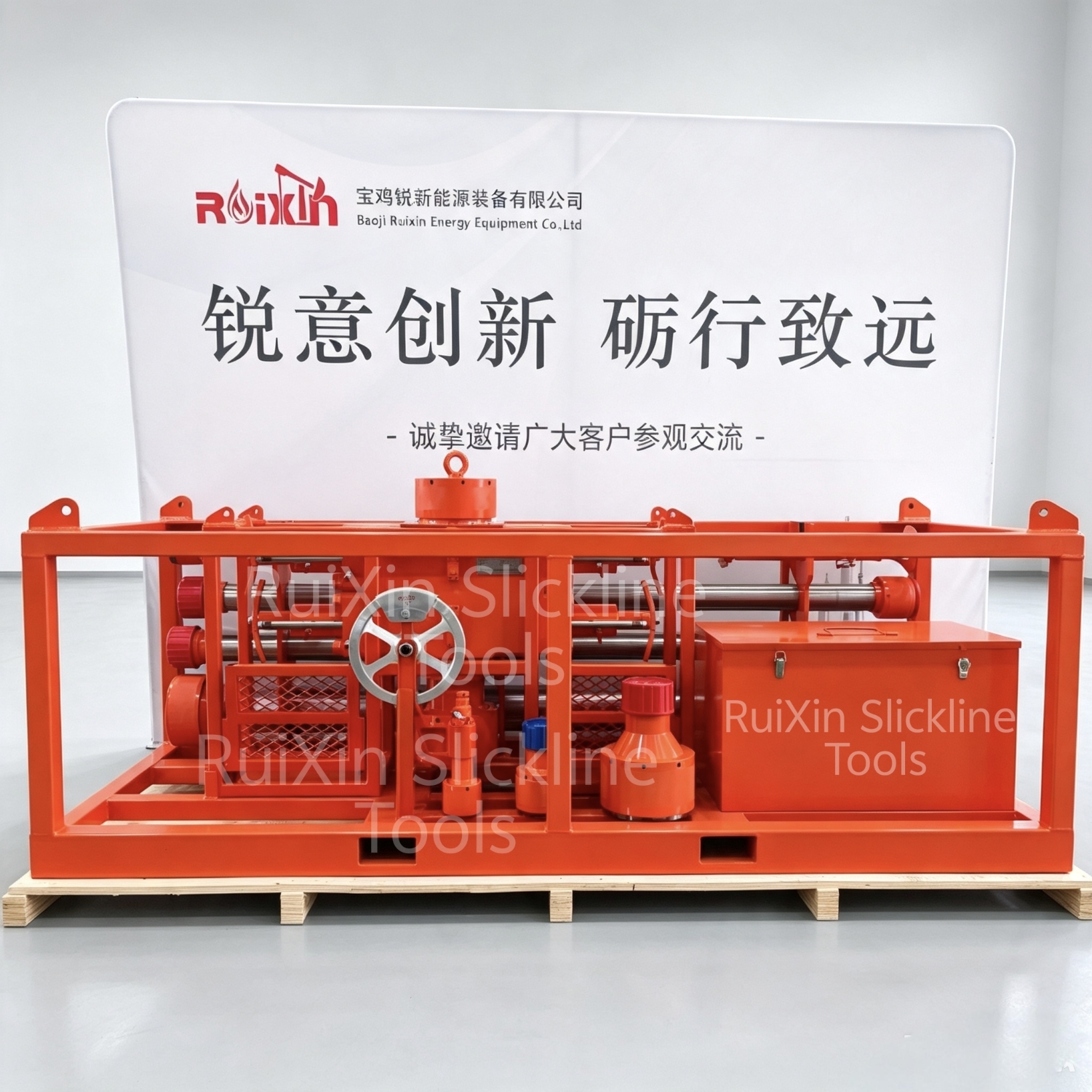

Slickline PCE Skid 10,000 PSI Wireline Pressure Control Equipment

Main technical parameters

Transportation skid-mounted unit

It is mainly composed of welded parts such as the frame, pressure plate and fixed seat .

Size (mm) 3440*1300*1265

Maximum gross weight 2760 kg

Steel wire Rope load 3000kg

Pay load 1900kg

Tare mass 860kg

BOP

Bop is 6-3/8"Tube ID, 10, 000psi WP, H2S service, doubie ram, 11-1/2"quick unions top and bott.om and three sets of rams

It can be replaced as needed (including shear/blind rams) for 0.125-inch Slickline and braided line operations.

Hydraulic stuffing box

Pulley diameter: 16" Apply the biggest wire specifications: 0.125 "; Safe load: 25 KN (12.5 KN wire); Working Pressure: 70 mpa; Connection 4-3/4-4ACME DL, type B.

Light weight Lubricator

Size 6.38″×10ft ID : 162; Working Pressure: 70 MPa; Strength test: 105 MPa; Connection type: 11-1/2 - 4 ACME.0 type.

Size 4″×10ft ID : 102 Working Pressure: 70 MPa; Strength test: 105 MPa; Connection type: 6-1/2-4ACME.

Wireline Grease Injection Control Head

Working force: 70 MPa; Cable diameter 3/16″～15/32″ Connection type 4-3/4-4×2 ACME .B

It can be equipped with 3 to 9 grade flow-blocking tubes at will.

Crossover Quick Union

ID 4″ Upper part Connection 6-1/2-4ACME .0 Type Bottom Connection 11-1/2-4ACME.0 Type Working Pressure 10KPSI

ID 76.2mm Upper part Connection 4-3/4-4ACME DL.B Type . Bottom Connection 6-1/2-4ACME.OType. Working Pressure 10KPSI

Any size can be customized according to customer requirements

This device is also equipped with a pulley and a ground pulley. The wire hoist includes a lifting plate, a parallel clamp, a wire rope, and a shackle. There is also a hand pump and a pipeline.

Please pay attention to daily maintenance and care, and wear the threaded protector when storing.
