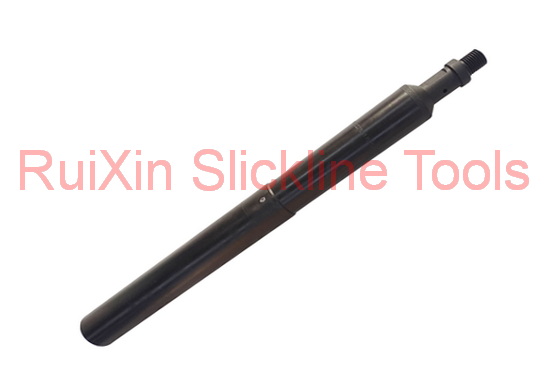

API Q1 Wireline Fishing Releasable Slickline Overshot 2 Inch
API Q1 Wireline Fishing Releasable Slickline Overshot 2 Inch
Specifications
Brand Name :
Ruixin
Model Number :
1.5inch 2inch 2.5inch 3inch
Certification :
API Q1
Place of Origin :
China Baoji
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1 set 2 weeks
Delivery Time :
2-3 weeks
Packaging Details :
Wooden Box
Name :
Wireline Releasable Overshot 2 inch Wireline Fishing Tool
Size :
1.5inch 2inch 2.5inch 3inch
Material :
Alloy Steel&Nickel Alloy
Fish Neck :
1.375inch 1.75inch 2.313inch 3.125inch
Body O.D :
1.84inch 2.19inch 2.69inch 3.65inch
Function :
To perforate standard and heavy wall tubing under pressure
Connection :
SR,QLS,BLQJ,HDQRJ
Description

Wireline Releasable Overshot 2 inch Wireline Fishing Tool

I. Introduction
The Releasable Overshot is used to salvage tools or objects without conventional salvage necks downhole. It is shocked downwards, and the slips are retracted after the pins are cut. To achieve the function of self-release,
II. General Technical Parameters
Size
Fishing Neck
Connection
Slip Range
1.5"
1.375"
15/16-10UN
1/2"～1"
2"
1.375"
15/16-10UN
1/2"～1-3/8"
2.5"
1.375"
15/16-10UN
1/2"～1-3/4"
3"
1.75"
15/16-10UN
1/2"～2"

II. Structure Characteristics
The Releasable Overshot is consists of top sub, body, main spring, mandrel, outer barrel auxiliary spring, connecting sleeve, slips, etc.
It has a simple structure and convenient to use.
III. Notes
1. Please tighten the slips after each replacement.
2. Remove the slips and hex bolts when replacing the pins, thus will be easier to use the re-pinning tool.
Tools Can Be Manufactured To Any Size Required. Welcome to contact us at any time.
