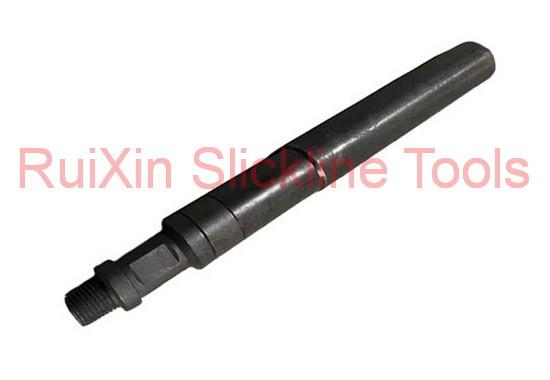

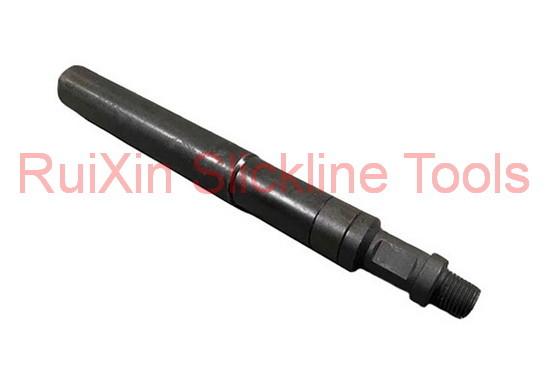

Heavy Duty Salvage Release Tool Wireline Pulling Tool
Heavy Duty Salvage Release Tool Wireline Pulling Tool
Heavy Duty Salvage Release Tool Wireline Pulling Tool
Heavy Duty Salvage Release Tool Wireline Pulling Tool
Specifications
Brand Name :
Ruixin
Model Number :
1.25inch-2inch
Certification :
API
Place of Origin :
China Baoji
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1 set 3 weeks
Delivery Time :
3-4 weeks
Packaging Details :
Wooden Box
Name :
Heavy Duty Salvage Release Tool Wireline Pulling Tool
Size :
1.25inch-2inch
Actual Outer diameter :
1.68inch-2.125inch
Fishing Neck :
1.187inch-1.375inch
Connecting thread :
15/16UN
Diameter :
1inch-1.375inch
Description

Heavy Duty Salvage Release Tool Wireline Pulling Tool

I.Introduction
Heavy Duty Salvage Release Tool It is a throwing tool used to salvage tools or instruments with external salvage necks (such as balance rods, plugs, restrictors, etc.). It can be released with an upward shock.

II.Technical

Specifications Actual outer Diameter

Fishing Neck

 Connecting Thread Diameter
1.25＂ 1.68＂ 1.187＂ 15/16UN 1＂
1.5＂ 1.875＂ 1.375＂ 15/16UN 1.187＂
2＂ 2.125＂ 1.375＂ 15/16UN 1.375＂
2.5＂ 2.5＂ 1.75＂ 1-1/16UN 1.75＂
3＂ 3.05＂ 1.75＂ 1-1/16UN 2.312＂
4＂ 3.8＂ 2.313＂ 1-1/16UN 3.125＂


III.Matters needing attention:
1. Before going down the well, know whether there is enough space in the inner diameter of the pipe string so
that the fishing claw can be released downhole; If necessary, you can pass the diameter first;
2. According to the different throwing and fishing tools, choose the appropriate gripping distance.

Tools Can Be Manufactured To Any Size Required.
Welcome to contact us at any time.
Heavy Duty Salvage Release Tool Wireline Pulling Tool
