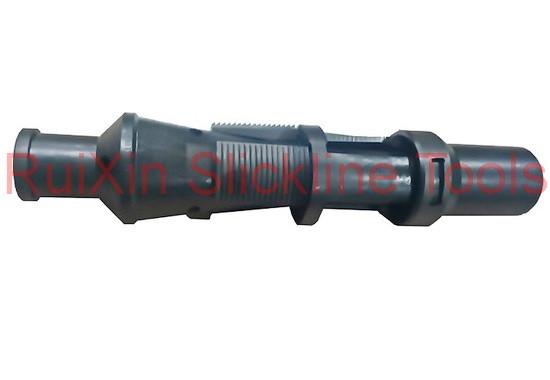

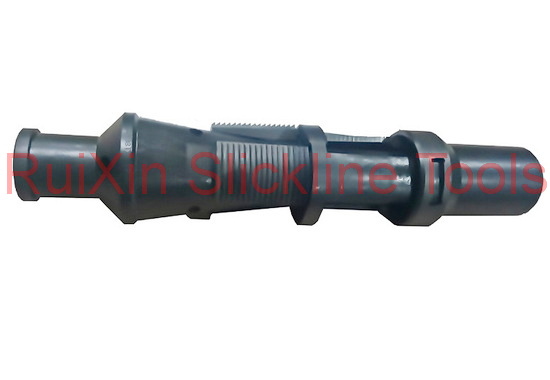

2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
Specifications
Brand Name :
Ruixin
Model Number :
2-3/8 Tubing~4-1/2Tubing
Certification :
API Q1
Place of Origin :
China Baoji
MOQ :
1
Price :
USD 1800~
Payment Terms :
T/T, Western Union
Delivery Time :
3-4 weeks
Packaging Details :
Wooden Box
Supply Ability :
1 set 3 weeks
Name :
Tubing Stop Wireline Pulling Tool
Size :
2-3/8 Tubing~4-1/2Tubing
Fish Neck :
1.375inch 1.75inch 2.313inch
Body O.D :
1.84inch 2.19inch 2.69inch 3.65inch
Function :
To perforate standard and heavy wall tubing under pressure
Material :
Alloy Steel&Nickel Alloy
Connection :
SR,QLS,BLQJ,HDQRJ
Description

2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool

Tubing Stop Wireline Pulling Tool

Ⅰ. Introduction

The type tubing perforator (tubing punch) is a mechanical device designed to perforate standard and heavy wall tubing under pressure.The tubing perforators are available for tubing size 2-3/8＂through 4-1/2＂.

Ⅱ. Specification

Tubing Size

F. N.

Connection

PN.

2-3/8＂

1.375＂

15/16UN

W44-01.00

2-7/8＂

1.375＂

15/16UN

W44-02.00

3-1/2＂

2.313＂

1-1/16UN

W44-03.00

4-1/2＂

2.313＂

1-1/16UN

W44-04.00

III. Structural features

The tubing perforator is mainly composed of the body, housing, punch holder, punch, bushing , catch, spring, bottom contactor, etc.There are two slopes on the body which are used to pull the body and make the punch move at the radial direction. The punch holder is used to provide movement track for the body, and the punch is installed on it. The upper part of the housing is equipped with slip insert which can bite on the inner wall of tubing. The spring and catch are installed on the body to lock the body on the housing after punching. When the tubing perforator is at the initial position, the body and the housing are fixed with the shear pin to prevent the punch from being exposed.

2.875 Inch Alloy Steel Tubing Stop Wireline Pulling Tool
