Cast Aluminum Hay Pulley Wireline Pressure for Control Direction
Cast Aluminum Hay Pulley Wireline Pressure for Control Direction
Cast Aluminum Hay Pulley Wireline Pressure for Control Direction
Cast Aluminum Hay Pulley Wireline Pressure for Control Direction
Specifications
Brand Name :
Ruixin
Model Number :
12 inch 14inch 16inch 20inch
Certification :
API
Place of Origin :
China Baoji
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1 set 3 weels
Delivery Time :
2-4 weeks
Packaging Details :
Wooden Box
Name :
Wireline Hay Pulley Wellhead Wireline Pressure Control
Material :
Cast aluminum
Sheave Size :
12inch~20inch
Operation :
Wireline operation and slickline operation
Use :
Well intervention
Wireline PCE :
Wireline Hay Pulley
Description

Cast Aluminum Hay Pulley Wireline Pressure for Control Direction

Introduction

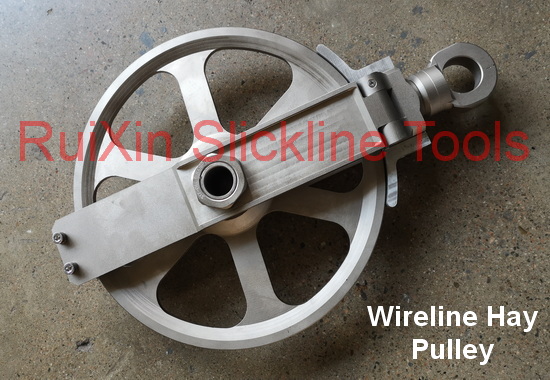

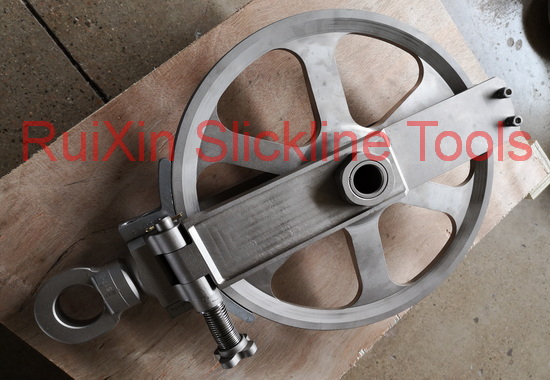

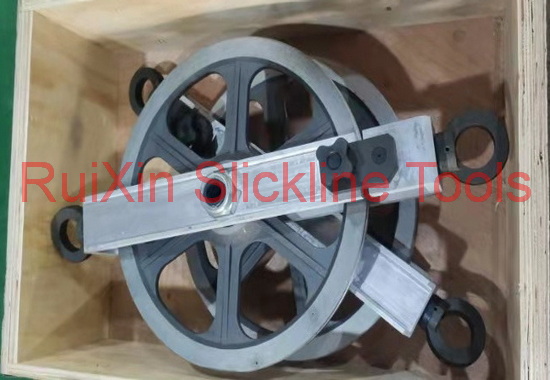

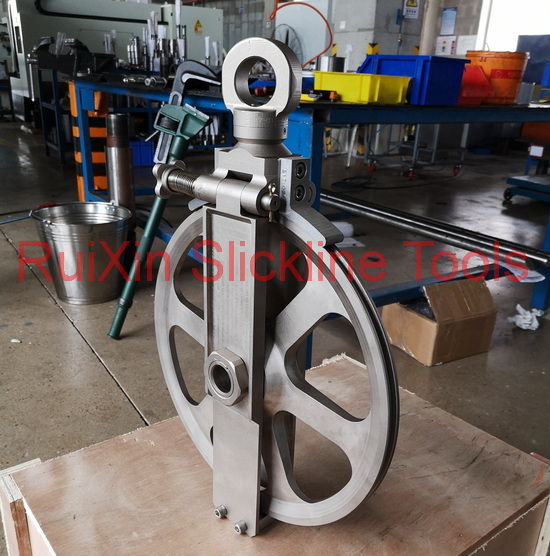

The Hay Pulley is the top and bottom sheave used in wireline pressure control operation. The Hay Pulley is applied for controlling and manipulating the direction of the wireline from a horizontal positon to a vertical position in route to the stuffing box from the wireline unit. The slick line pulldy is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.

In the hay pulley, top Sheave is a rope guiding device has adjustable center distance,and the bottome sheave is a rope guding device which can universal rotation.The slickline pass through the top and bottom sheave connect to the well test winch drum,which can control the slickline tools pulling into the well

Size Wire sie Safe working load
12"

TBA.
14" 7/32" 5/16"
16" 7/32" 5/16" 15/32" 20KN
