High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
Specifications
Brand Name :
TeXin
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50,00pcs/month
Delivery Time :
3-5days
Packaging Details :
Durable case or box
Brand :
Texin
Type :
Spring antenna
VSWR :
≤1.5
Power :
50W
Frequency :
100-500mhz ,700-3000mhz (Customized)
Gain :
8dbi
Operating temperature :
40～80 º
Out shell Size :
1210mm
Weight :
2.05kg
Connector :
N connector
Out shell material :
Aluminum
Work Temperature :
-20~+70℃
Description
High Gain Spring Base Omnidirectional Dipole Oscillator Dual-Band Antenna
This omnidirectional dipole dual-band antenna features manually modulated frequency bands, supports full-band customization, and is equipped with a spring and suction cup at the bottom to cushion vibrations. It can be used in conjunction with vehicle-mounted drone countermeasure equipment. It is an essential transmission antenna for drone countermeasure equipment, low-altitude security systems, and portable jamming devices.
Shen Zhen Texin Electronics Co., Ltd has specialized in anti-drone devices, accessories, and antennas for more than 10 years. Product quality is guaranteed.
Product Specifications
Parameter Value Unit
Frequency 100-500MHz 700-3000MHz (customizable) MHz
Output 50W/100W (customizable) -
Gain 8-10 dBi
Flatness ±3 dBm
Work Voltage 50Ω dB
Input Connector Type N -
Lightning Protection DC Ground dB
Cable Type RG316 -
Output Connector VSWR ≤2 (No power and VNA test) -

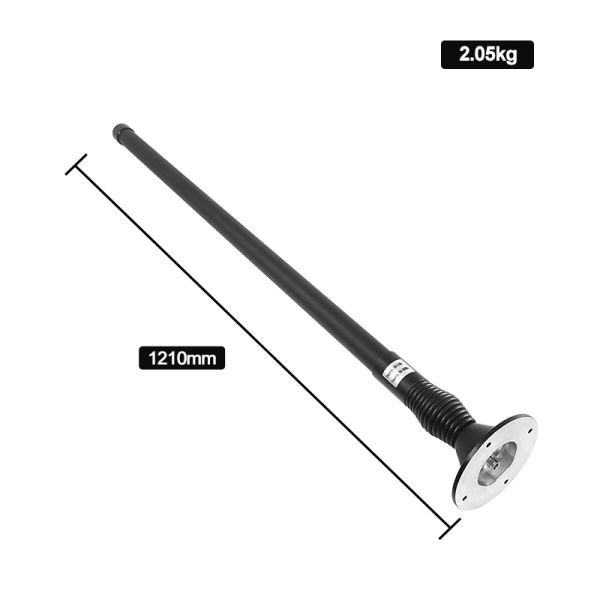

Outer Shell Size 1210 mm
Material Aluminum -
Weight 2.05 kg
Work Temperature -20~+70 ℃
Installation Machine installation -
Vibration Requirement Car load OK -
Available Options

Wattage: 10W, 20W, 30W, 40W, 50W

Frequency Bands: 100MHz, 200MHz, 300MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz

Product Features
  • Full-band, all-around jamming capability effectively counters UAV image transmission signals (2.4GHz, 5.2GHz, 5.8GHz) and GNSS navigation frequencies
  • The spring structure can buffer vibrations and resist minor impacts, making it suitable for in-vehicle/portable devices
  • Two frequency bands integrated into one antenna, stable output and high cost performance
  • The shell is made of copper, which can withstand high-intensity impact
  • Adopt a high-quality telecommunications-grade feeder, which can be bent at any angle
  • The antenna root is reinforced, and the connection is more reliable and durable

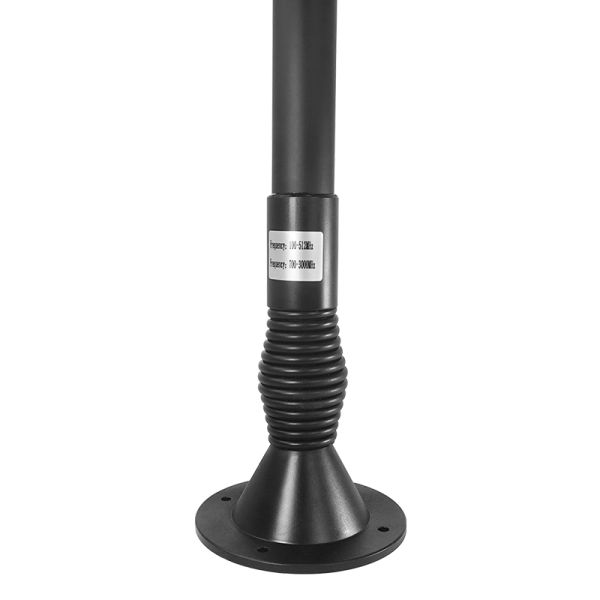

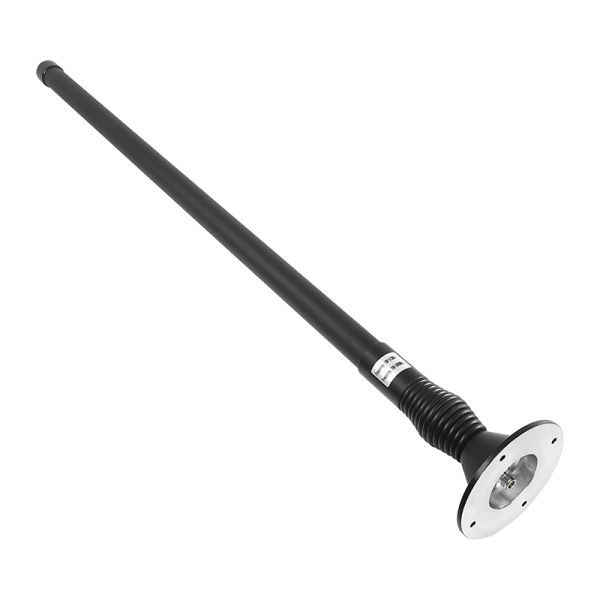

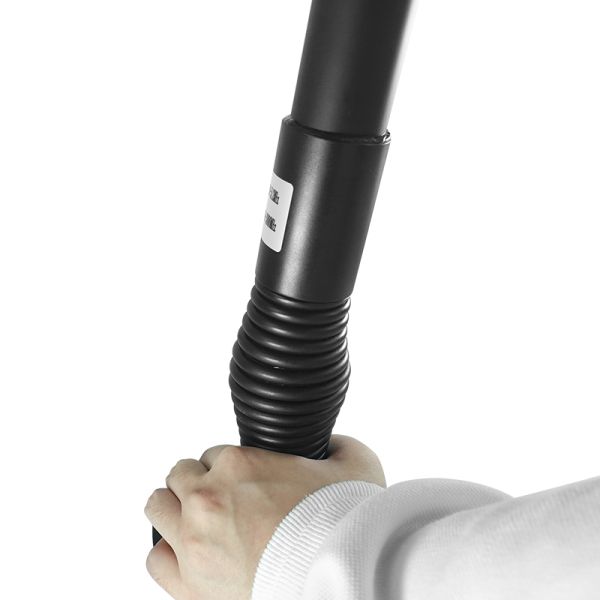

Product Images
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
Product Application
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
Frequently Asked Questions
Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.
MOQ?
1 to 100 pieces
Payment term?
T/T, (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.
How to proceed with an order?
A. Let us know your requirements and product application
B. We quote according to your specification
C. Customers agree with the quotation and make the payment
What to do if I receive defective products?
Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.

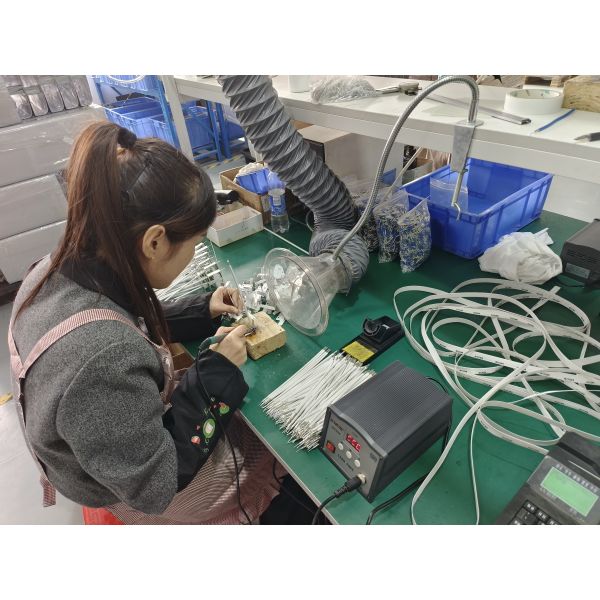

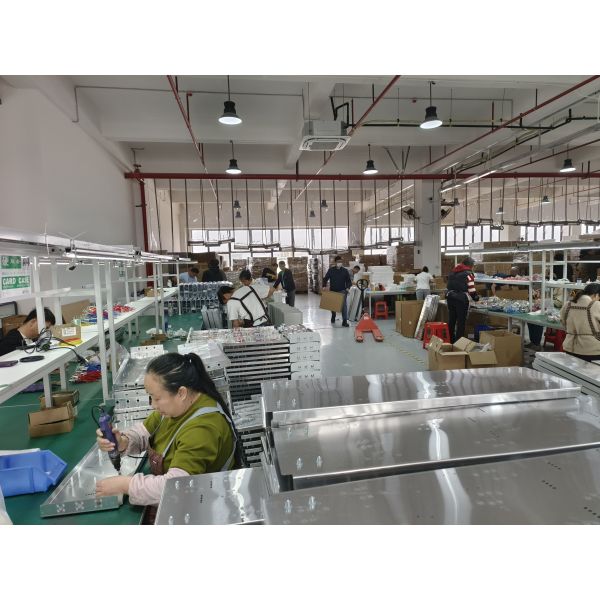

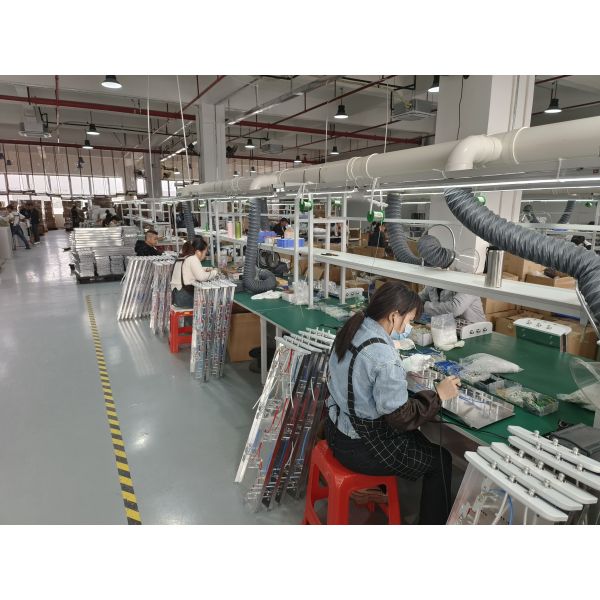

Factory Pictures
High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device High gain spring base Omnidirectional Dipole Oscillator Dual-Band Antenna for anti drone device
