Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication
Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication
Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication
Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication
Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication
Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication
Specifications
Frequency :
100-7000mhz
Size :
2850*1800*80mm
Application :
Gas station, chemical plant,
Weight :
758g
Gain :
6-10dbi
Type :
Wideband log antenna
High power :
100W
Product Name :
Log periodic antenna
Brand Name :
TX
Model Number :
TX008-1070-6-10QVDSG
Certification :
ISO9001,SGS,CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
10000pcs per month
Delivery Time :
1-3 days
Packaging Details :
Durable case or box
Description

Factory supplier directional 100-7000mhz Log periodic antenna for outdoors communication

1. Product Introduction

TX008-1070-6-10QVDSG is a high gain log periodic antenna ,it mainly use in outdoors communication like EMC testing, communications, signal monitoring and other fields.The wide band 100-7000mhz log periodic antenna is a special log periodic antenna ,it can cover fequency band from 100mhz to 7000mhz that own strong fuction of transmit signal .Nowadays the log periodic antenna as the security antenna to defense the FPV drone. So if you are threatened by the fpv drone that contact us ,we can offer the solution for you.

2. Product Specification

Technical Specification
(Frequency Range) 100-7000 MHz
(Gain) 6-10dbi
(VSWR) ＜2.0
(Polarization) Vertical
(Horizontal Bandwidth) 42-50°
(Vertical Bandwidth) 55°
(Front to back ratio) 12db
(Input Impedance) 50Ω
(Maximum Input) 100W
(Input Connector) N-K
(Lightning Protection) DC Ground
Mechanical specifications
Dimension 2850*1800*80mm
(Packing Size) 1950*700*400mm(7pcs)
(Antenna Weight) 758g
(Rated Wind Velocity) 31m/s
(Operational Humidity) 10-95％
(Radiomen Color) Boack matte finish
(Radome Material) /
(Operation Temperature) -55-70°C
(Installation Method) Installation of holding pole

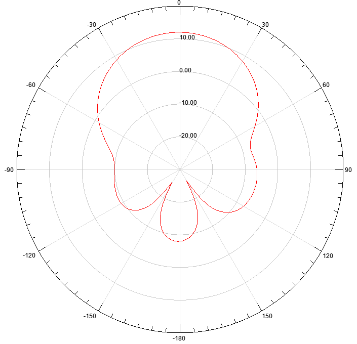

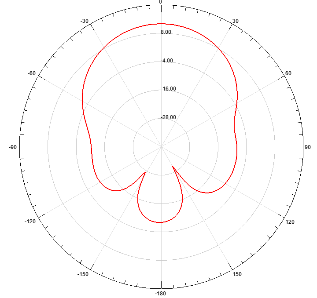

(Radiation Pattern)

3. Feature

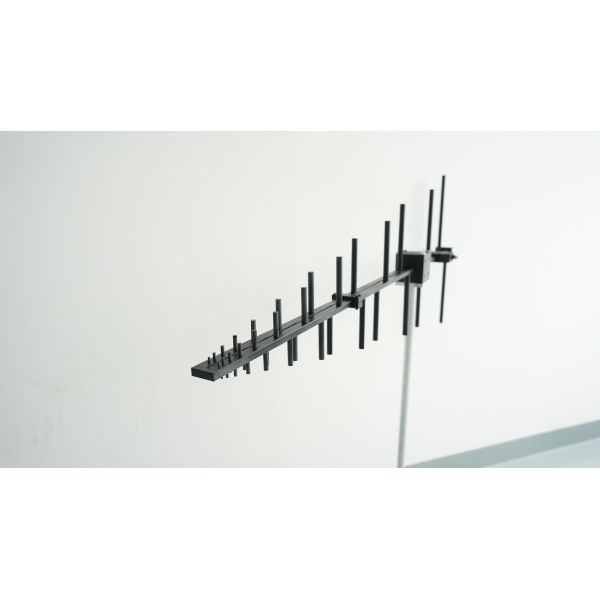

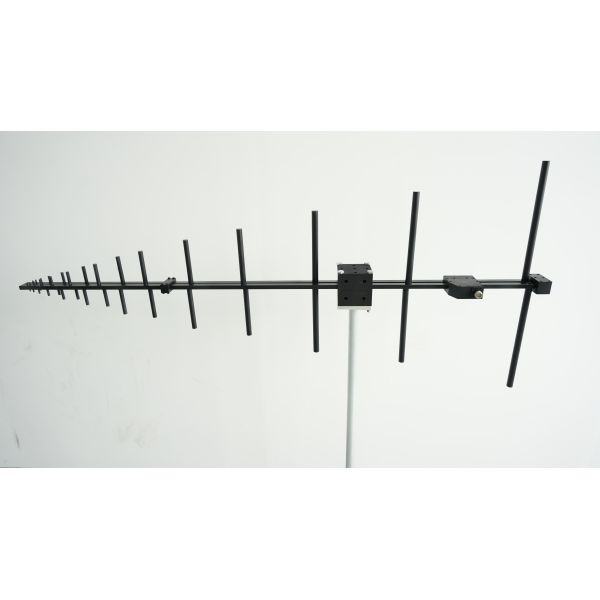

Directional 100-7000mhz Log periodic antenna

* Directional antenna high efficient transmit the signal

* Can cover 2G 3G 4G 5G WIFI GPS VHF GPS gnss 5.8ghz and other signals, choose and customize according to your needs

* Aluminum alloy shell, strong, durable, heat-resistant, dust-proof and shock-proof,waterproof

* Can be used in large conferences and other occasions like the government ,village

* High output power more than 100W

4. Application

Directional 100-7000mhz Log periodic antenna

* Gas station, chemical plant

* Jail, conference rooms, prisons, troops, etc. Concert hall mobile phone scrambler jammer
